LC-52LE920UN/LC-60LE920UN
[2] OPERATION MANUAL

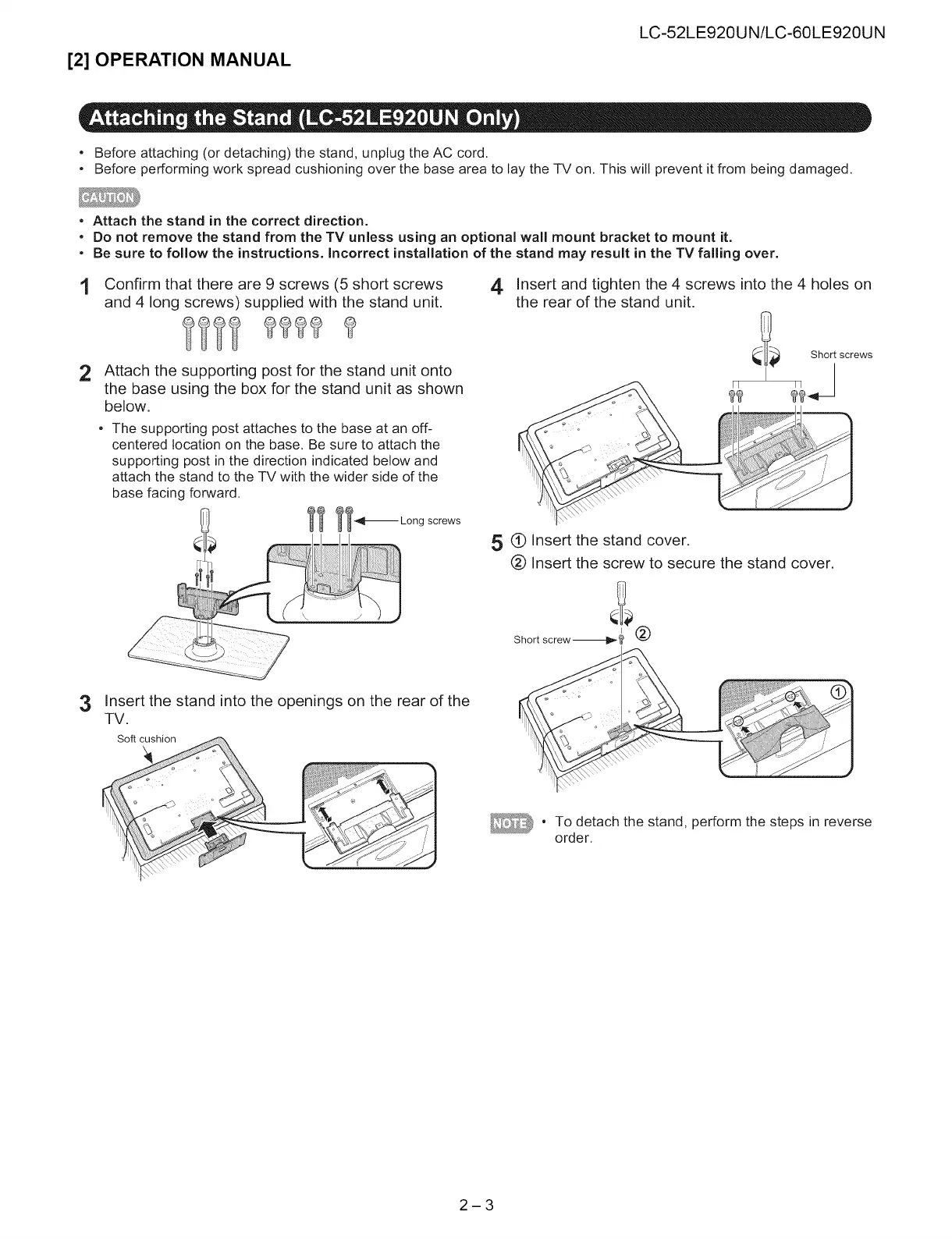

Attaching the Stand (LC-52LE920UN Only)
* Before attaching (or detaching) the stand, unplug the AC cord.
* Before performing work spread cushioning over the base area to lay the TV on. This will prevent it from being damaged.
* Attach the stand in the correct direction.
* Do not remove the stand from the TV unless using an optional wall mount bracket to mount it.
* Be sure to follow the instructions. Incorrect installation of the stand may result in the TV falling over.
4 Confirm that there are 9 screws (5 short screws 4 Insert and tighten the 4 screws into the 4 holes on
and 4 long screws) supplied with the stand unit. the rear of the stand unit.
TRE were F
2 Attach the supporting post for the stand unit onto C ¢
the base using the box for the stand unit as shown _
below.
Short screws
* The supporting post attaches to the base at an off-
centered location on the base. Be sure to attach the
supporting post in the direction indicated below and
attach the stand to the TV with the wider side of the
base
facing
forward.
=
;
ii
\j<—
Long
screws
SQ
~~ 5 @ Insert the stand cover.
i
|
I
@
Insert
the
screw
to
secure
the
stand
cover.
Ly
co
|
Short screw t——Be ?
3 Insert the stand into the openings on the rear of the
TV.
Soft cushion
=) « To detach the stand, perform the steps in reverse
order.
