LC-60E77UN/LC-65E77UM/LC-C6077UN/LC-C6577UM
4 – 5

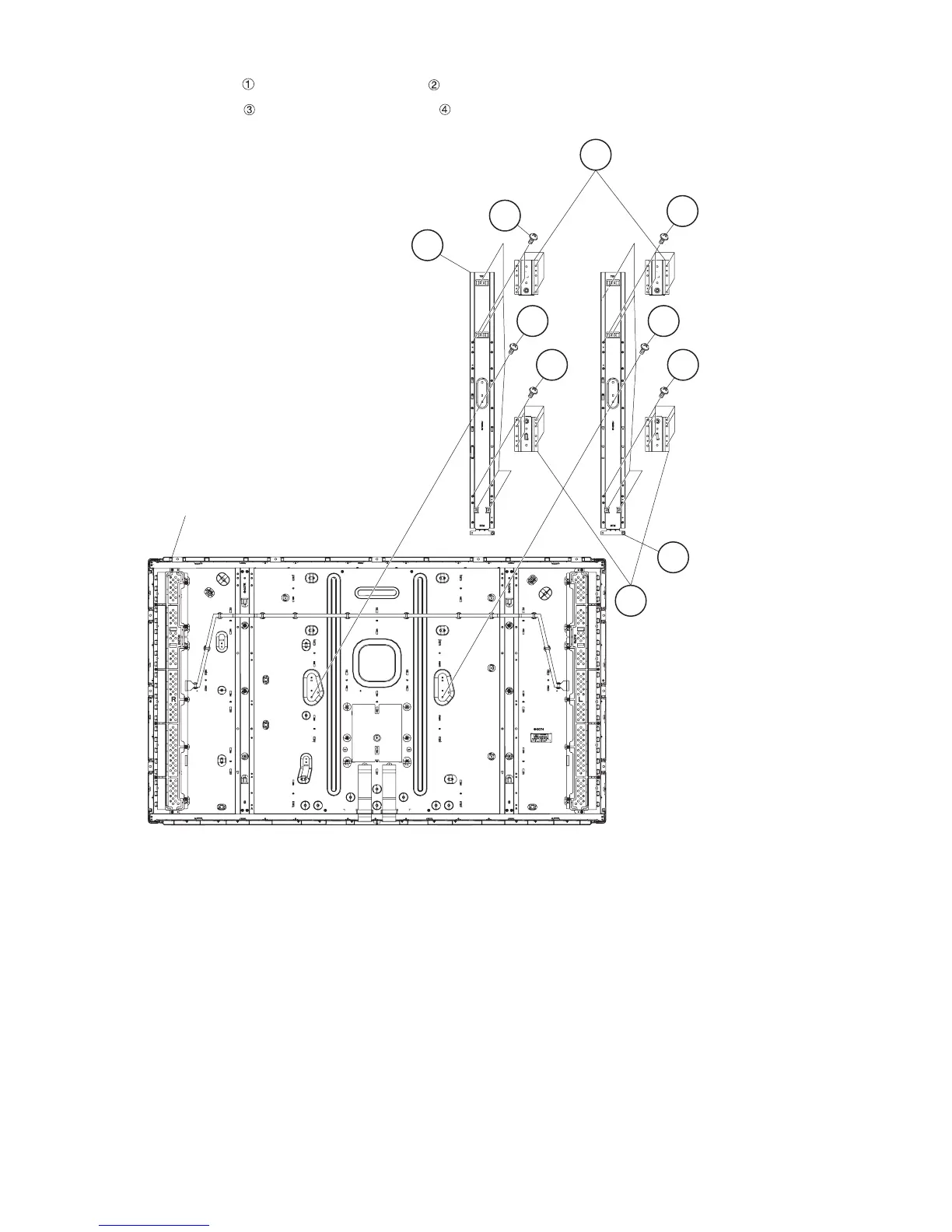

5. Removing of VESA Angle and Support Angle.
1. Remove the 20 lock screws and detach the 4 VESA Angle .
2. Remove the 10 lock screws and detach the 2 Support Angle .
2VESA Angle
4Support Angle
1
LCD Panel Module Unit Ass'y
3 3
2 VESA Angle
4 Support Angle
1
1 1
