CHAPTER 4. REMOVING OF MAJOR PARTS
[1] REMOVING OF MAJOR PARTS (LC-60LE660U/C6600U)
1. Removing of Stand Unit and Rear Cabinet Ass'y.

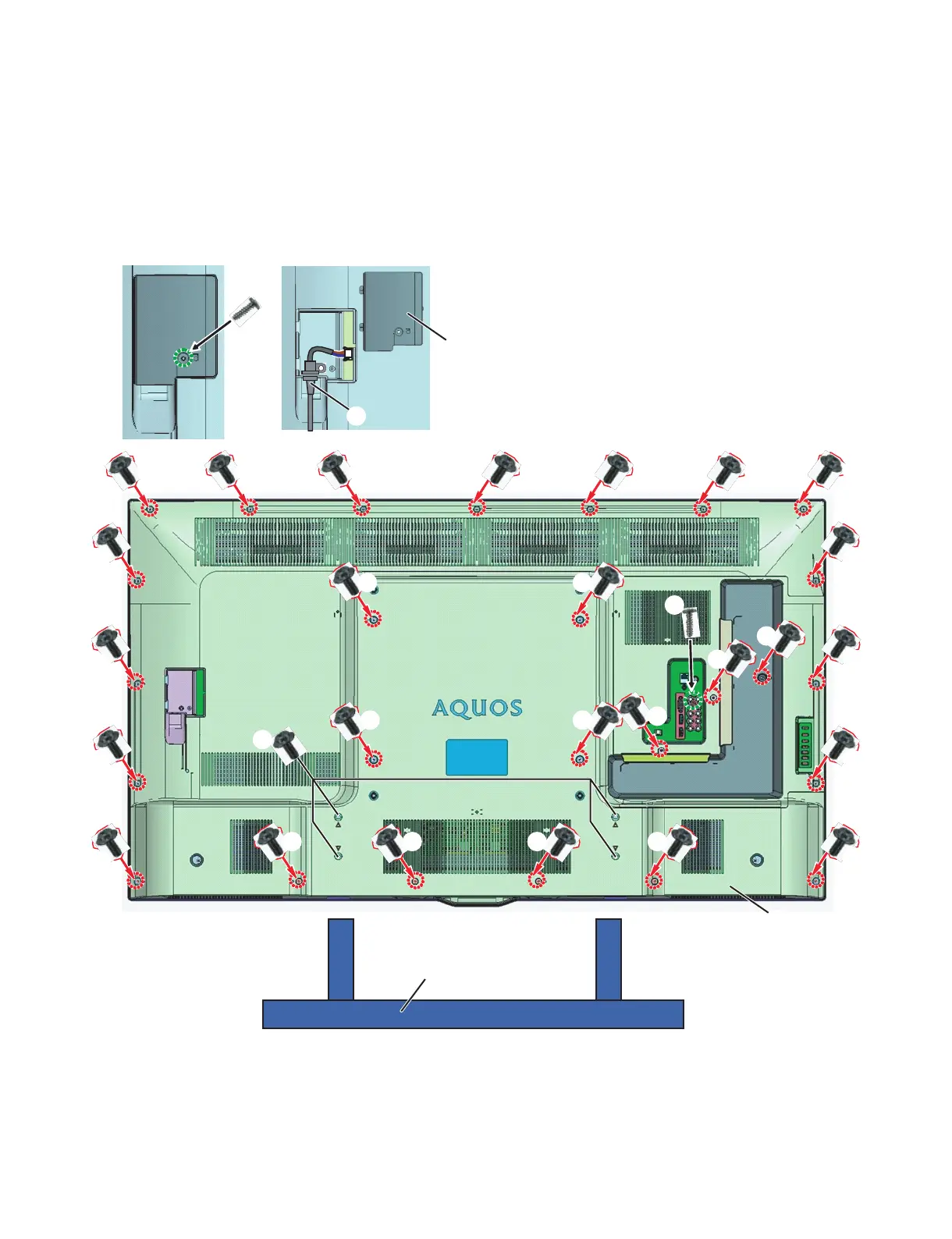

1. Remove the 4 lock screws (1) and detach the Stand Unit (2).
2. Remove the 1 lock screw (3) and detach the AC Cord Cover (4).
3. Disconnect AC Wire and detach the AC Cord (5).
4. Remove the 1 lock screw (6), 26 lock screws (7) and detach the Rear Cabinet Ass'y (8).
