[4] Precautions for assembly
1. Points to be checked and precautions when servicing the unit
Mount the main PWB Ass’y on the backlight chassis and check that the EMI-prevention parts are not peeled and twisted from the access holes. (The
EMI-prevention parts, conductive nonwoven fabric gaskets, must be seen from the access holes.)
[Countermeasure]
Attach the conductive nonwoven fabric gaskets on the shielded case on the main PWB.

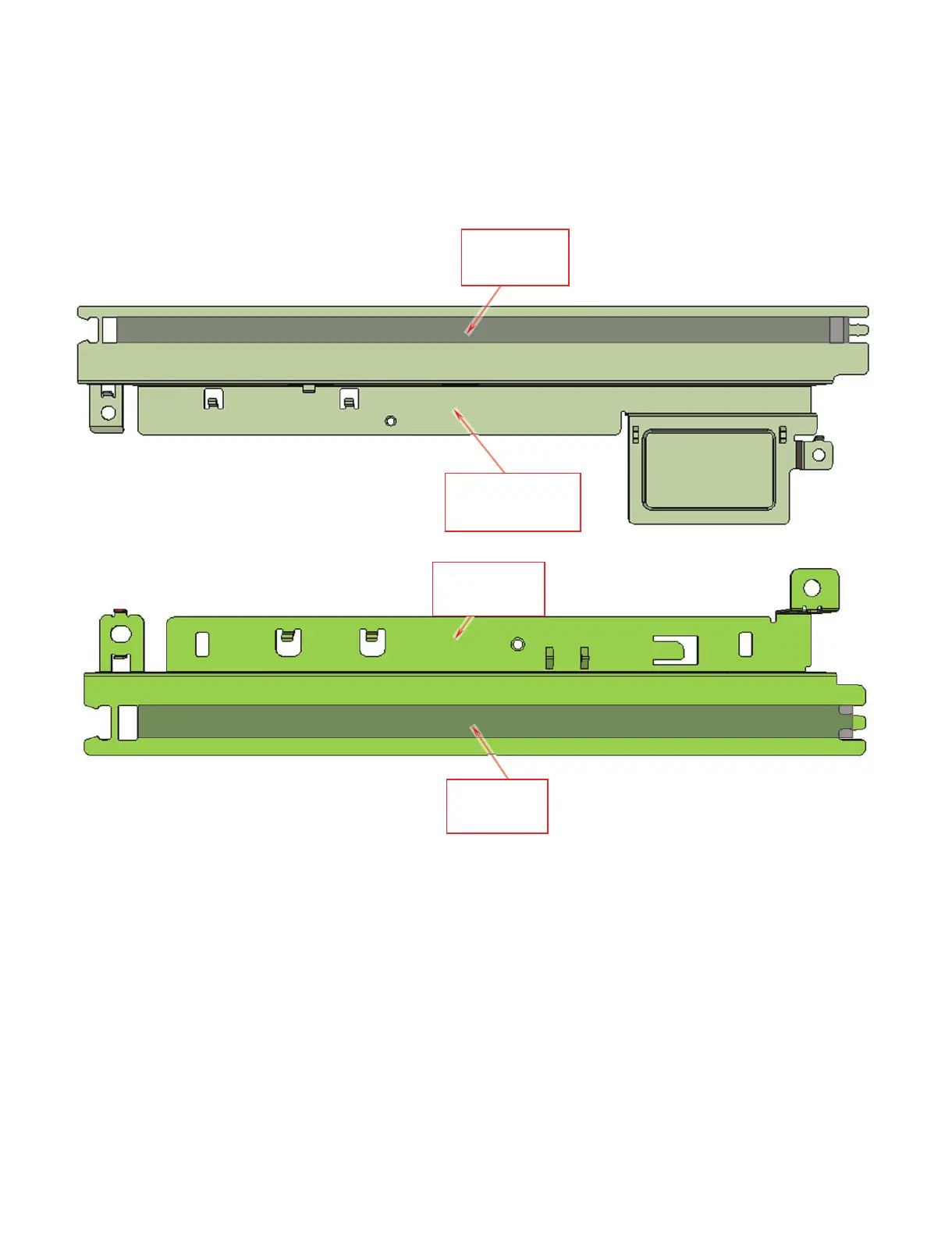

(2) Stick ***
PSPA Z C690WJZ Z
CONDUCTR:8x 255
(1) Prepare***
CANGKE406WJ31
TE RM ANG SIDE A SSY
(1) Prepare***
LANGKE407WJ3W
TE RM ANG BOTTOM
(2) Stick***
PSPA Z C6 91WJZ Z
CONDUCTR:8x 180
