R21LCF
11 – 4
[11] POWER SUPPLY CORD REPLACEMENT
1. REMOVAL
1. Disconnect the power supply cord and then remove outer case.
2. Open the door and block it open.
3. Discharge high voltage capacitor.
4. Remove the one (1) screw holding the green wire to the cavity rear
plate.
5. Disconnect the wire leads of the power supply cord from the noise
filter.
6. Release the power supply cord from the oven cavity rear plate.
7. Now, the power supply cord is free.
2. REINSTALL
1. Insert the moulding cord stopper of power supply cord into the
square hole of the oven cavity rear plate, referring to the Figure C-
3b.
2. Install the earth wire lead of power supply cord to the cavity rear
plate with one (1) screw and tighten the screw.
3. Connect the wire leads of power supply cord to the noise filter,
referring to the Pictorial Diagram.

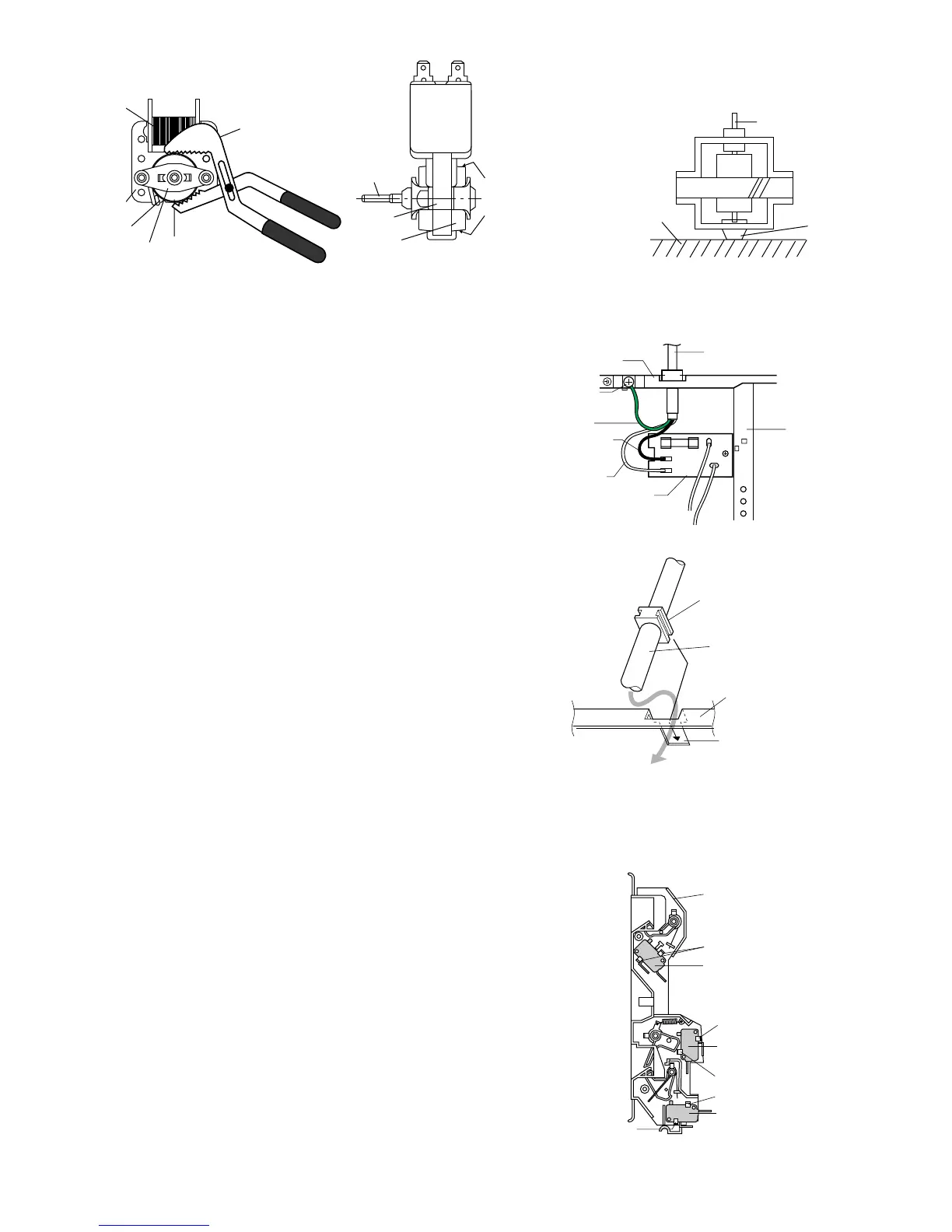

Figure C-3a. Power Supply Cord Replacement
Figure C-3b. Power Supply Cord Replacement
[12] DOOR SENSING SWITCH/SECONDARY INTERLOCK SWITCH AND MONITOR SWITCH
REMOVAL
1. REMOVAL
1. Disconnect the power supply cord and remove outer case.
2. Open the door and block it open.
3. Discharge high voltage capacitor.
4. Remove the control panel assembly, referring to section of CON-
TROL PANEL ASSEMBLY REMOVAL.
5. Disconnect the leads from all switches.
6. Remove the two (2) screws holding the latch hook to the oven cav-
ity.
7. Remove the latch hook.
8. Push the retaining tab outward slightly and remove the switch.
Figure C-4. Switches
Gap
Rotor
Bracket
Stator
Groove joint pliers
Coil
Shaft
Axis
Stator
Rotor
These are the positions
that should be pinched
with pliers.
Shaft
Table
Center of
bracket
Rear View
Side View
To Next Page
