32
R-220DW
R-230DK
R-230DW
HOW TO ORDER REPLACEMENT PARTS
To have your order filled promptly and correctly, please furnish the following information.
1. MODEL NUMBER 2. REF. NO. 3. PART NO. 4. DESCRIPTION
Order Parts from the authorized SHARP parts Distributor for your area.
Defective parts requiring return should be returned as indicated in the Service Policy.
REF. NO. PART NO. DESCRIPTION Q'TY CODE
5- 7 GCOVHA390WRF0 Choke cover 1 AK
5- 8 XCPSD40P08000 Screw : 4mm x 8mm 4 AA
MISCLANEOUS
6- 1 FROLPA089WRK0 Turntable support 1 AP
6- 2 NTNT-A094WRE0 Turntable 1 AN
6- 3 TINSEA828WRRZ Instruction book 1 AD
6- 4 FW-VZB657WRE0 Switch harness 1 AH
6- 5 FW-VZB658WRE0 Main wire harness 1 AV
6- 6 QW-QZA150WRE0 High voltage wire B 1 AF
6- 7 TCAUAA166WRR0 DHHS caution label 1 AC
6- 8 TCAUAA156WRR0 User caution label [R-220DW] 1 AF
6- 8 TCAUAA100WRR0 User caution label [R-230DK] 1 AC
6- 8 TCAUAA156WRR0 User caution label [R-230DW] 1 AF
6- 9 TCAUAA257WRRZ Monitor caution 1 AC
6-10 TCAUAA253WRR0 Earth caution 2 AC
6-11 TCAUAA240WRR0 Screw caution 1 AC
SCREWS AND WASHERS
7- 1 XHPSD40P08K00 Screw : 4mm x 8mm 5 AA
7- 2 LX-EZA042WRE0 Special screw 2 AB
7- 3 LX-WZA028WRE0 Special washer 1 AB
7- 4 XHTSD40P12RV0 Screw : 4mm x 12mm 1 AA
7- 5 XHTSD40P08RV0 Screw : 4mm x 8mm 5 AA
7- 6 XHPSD30P06000 Screw : 3mm x 6mm 1 AA
7- 7 LX-CZ0052WRE0 Special screw 2 AA
7- 8 XOTSD40P12000 Screw : 4mm x 12mm 12 AA
7- 9 XOTSE40P08000 Screw : 4mm x 8mm [R-220DW] 4 AA
7- 9 XOTSE40P08000 Screw : 4mm x 8mm [R-230DW] 4 AA
7- 9 XOTSF40P08000 Screw : 4mm x 8mm [R-230DK] 4 AA
7-10 LX-CZA070WRE0 Special screw 2 AC
*

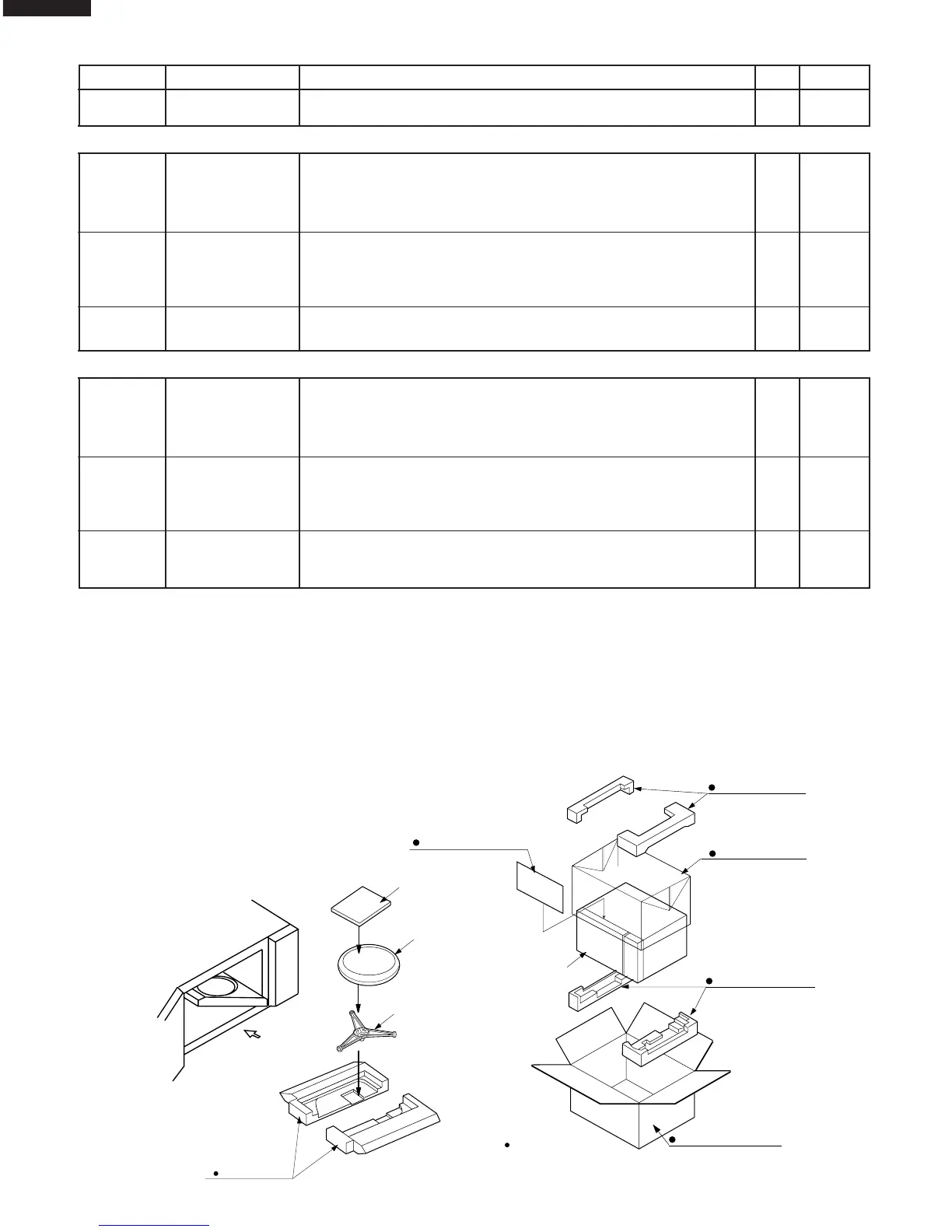

PACKING AND ACCESSORIES
6-2 TURNTABLE TRAY
6-3 OPERATION MANUAL
6-1 TURNRABLE SUPPORT
INTO THE
OVEN CAVITY
Not replaceable items.
TRAY PAD ASSY
(CPADBA244WRK0)
PACKING CASE
MICROWAVE OVEN
TOP PAD ASSEMBLY
FPADBA387WRK0
POLYETHYLENG BAG
SSAKHA014WRE0
DOOR PROTECTION SHEET
SPADPA580WRE0
SPAKCD341WREZ
[R-220DW]
SPAKCD346WREZ
[R-230DK]
SPAKCD345WREZ
[R-230D
W]
BOTTOM PAD ASSEMBLY
FPADBA388WRK0
To Next Page
