Sharp R-820BK Service Manual

9
R-820BK
R-820BW
SCHEMATIC
NOTE: CONDITION OF OVEN
1. DOOR CLOSED.
2. MICROWAVE POWER LEVEL PAD PRESSED ONCE(100%).
3. COOKING TIME PROGRAMMED.
4. START PAD TOUCHED.

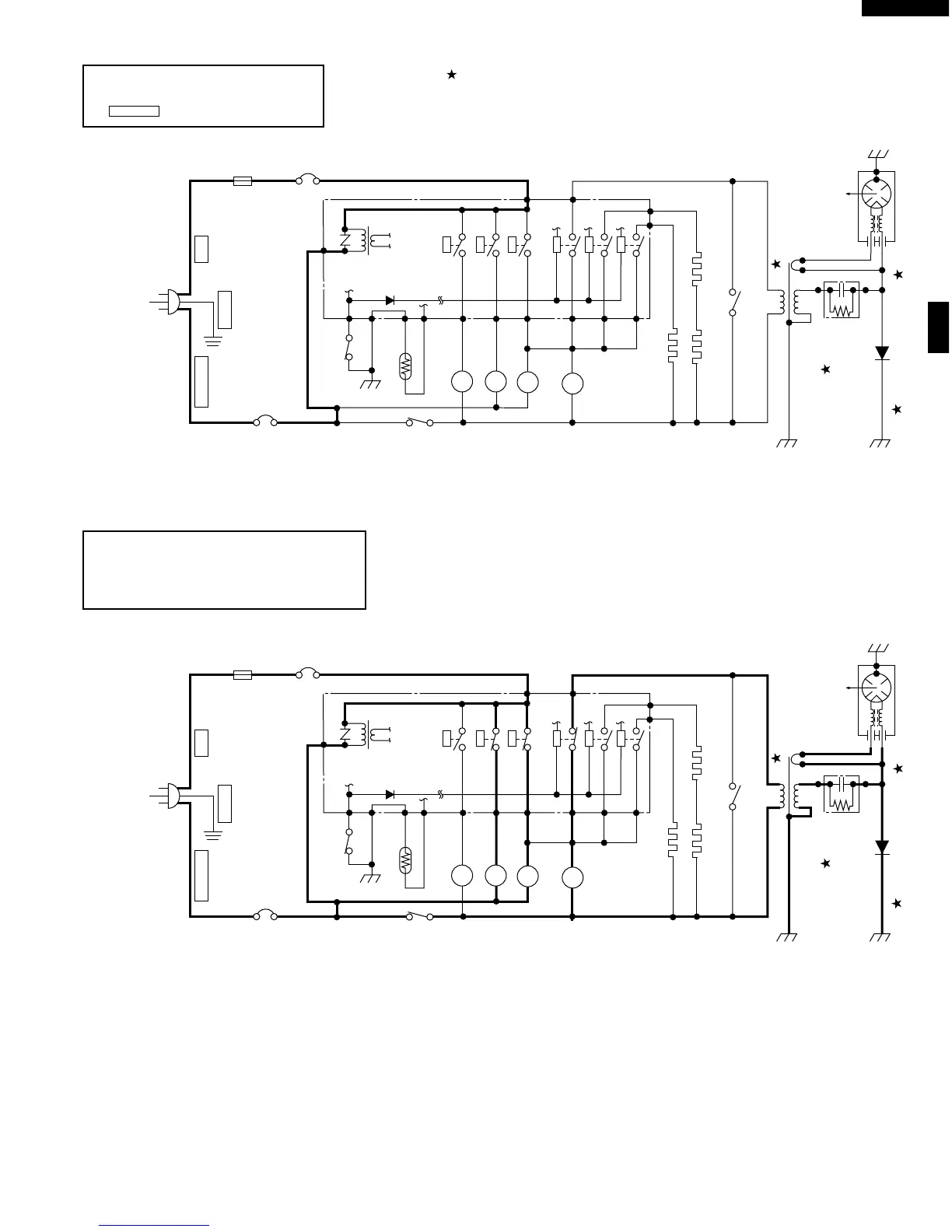

Figure O-2 Oven Schematic-Microwave cooking Condition
SCHEMATIC
NOTE: CONDITION OF OVEN
1. DOOR CLOSED.
2. : OR CLOCK APPEAR ON DISPLAY.
NOTE: Indicates components with potential above 250 V.
Figure O-1 Oven Schematic-OFF Condition
FM
TTM
OVEN LAMP
FAN MOTOR
TURNTABLE  MOTOR
H.V. RECTIFIER
CONTROL UNIT
RPIMARY INTERLOCK RELAY
COM. COM. COM.
N.O.
COM.
N.O. N.O.
N.O.
A1
DOOR SENSING SWITCH
BRNBLU
G-Y 
EARTH
LIVENEUTRAL
RY4
RY3
RY2:
RY6 RY5
CM
CONVECTION MOTOR
THERMISTOR
RY1
CAPACITOR 0.94µF AC2200V
GRILL HEATER (TOP)
BOTTOM HEATER
MAGNETRON
POWER  TRANSFORMER
B2
B1
A3
A5 D1
D3
SECONDARY
INTERLOCK SWITCH
THERMAL CUT-OUT
(OVEN)
THERMAL
CUT-OUT
(MAG.)
MONITOR SWITCH
FUSE 20A
120V
~ 60Hz
OL
FM
TTM
OVEN LAMP
FAN MOTOR
TURNTABLE  MOTOR
H.V. RECTIFIER
CONTROL UNIT
RPIMARY INTERLOCK RELAY
COM. COM. COM.
N.O.
COM.
N.O. N.O.
N.O.
A1
DOOR SENSING SWITCH
BRNBLU
G-Y 
EARTH
LIVENEUTRAL
RY4
RY3
RY2:
RY6 RY5
CM
CONVECTION MOTOR
THERMISTOR
RY1
CAPACITOR 0.94µF AC2200V
GRILL HEATER (TOP)
BOTTOM HEATER
MAGNETRON
POWER  TRANSFORMER
B2
B1
A3
A5 D1
D3
SECONDARY
INTERLOCK SWITCH
THERMAL CUT-OUT
(OVEN)
THERMAL
CUT-OUT
(MAG.)
MONITOR SWITCH
FUSE 20A
120V
~ 60Hz
OL
