HOW TO ORDER REPLACEMENT PARTS
To have your order filled promptly and correctly, please furnish the following information.
1. MODEL NUMBER 2. REF. NO. 3. PART NO. 4. DESCRIPTION
Order Parts from the authorized SHARP parts Distributor for your area.
Defective parts requiring return should be returned as indicated in the Service Policy.
PACKING AND ACCESSORIES
REF. NO. PART NO. DESCRIPTION Q'TY CODE
6-10 LHLDWA011WRE0 Purse lock M 1 AB
6-11 TCAUAA201WRR0 DHHS caution label 1 AC
6-12 TCAUAA240WRR0 Screw caution 1 AC
6-13 TLABMA570WRR0 Menu label 1 AF
SCREWS,NUTS AND WASHERS
7- 1 XFPSD40P08K00 Screw : 4mm x 8mm 13 AA
7- 2 XEPSD40P25000 Screw : 4mm x 25mm 2 AA
7- 3 LX-EZA042WRE0 Special screw 2 AB
7- 4 LX-NZ0061WRE0 Flange nut 4 AA
7- 5 XBPWW30P05K00 Screw : 3mm x 5mm 2 AA
7- 6 XCTWW40P08000 Screw : 4mm x 8mm 8 AB
7- 7 XHPSD30P06000 Screw : 3mm x 6mm 1 AA
7- 8 XHTSD40P08RV0 Screw : 4mm x 8mm 2 AA
7- 9 XOTSD40P12RV0 Screw : 4mm x 12mm 12 AA
7-10 XOTSD40P12000 Screw : 4mm x 12mm 10 AA
7-11 XOTSD40R12RV0 Line head screw : 4mm x 12mm 2 AA
7-12 XOTSF40P08000 Screw : 4mm x 8mm [R-820BK] 1 AA
7-12 XOTSE40P08000 Screw : 4mm x 8mm [R-820BW] 1 AA
7-13 XBTSD40P05000 Screw : 4mm x 5mm 2 AA
7-14 XNEUW40-32000 Nut : 4mm x 3.2mm 1 AA
7-15 XRESE40-06000 Ring : 4mm x 0.6mm 1 AA
7-16 XWHUW40-08000 Washer : 4mm x 0.8mm 1 AA
7-17 XWHUW50-08000 Washer : 5mm x 0.8mm 1 AA
7-18 XWSUW40-10000 Washer : 4mm x 1.0mm 1 AA
7-19 LX-CZA070WRE0 Special screw (Torx tamper proof screw) 2 AC

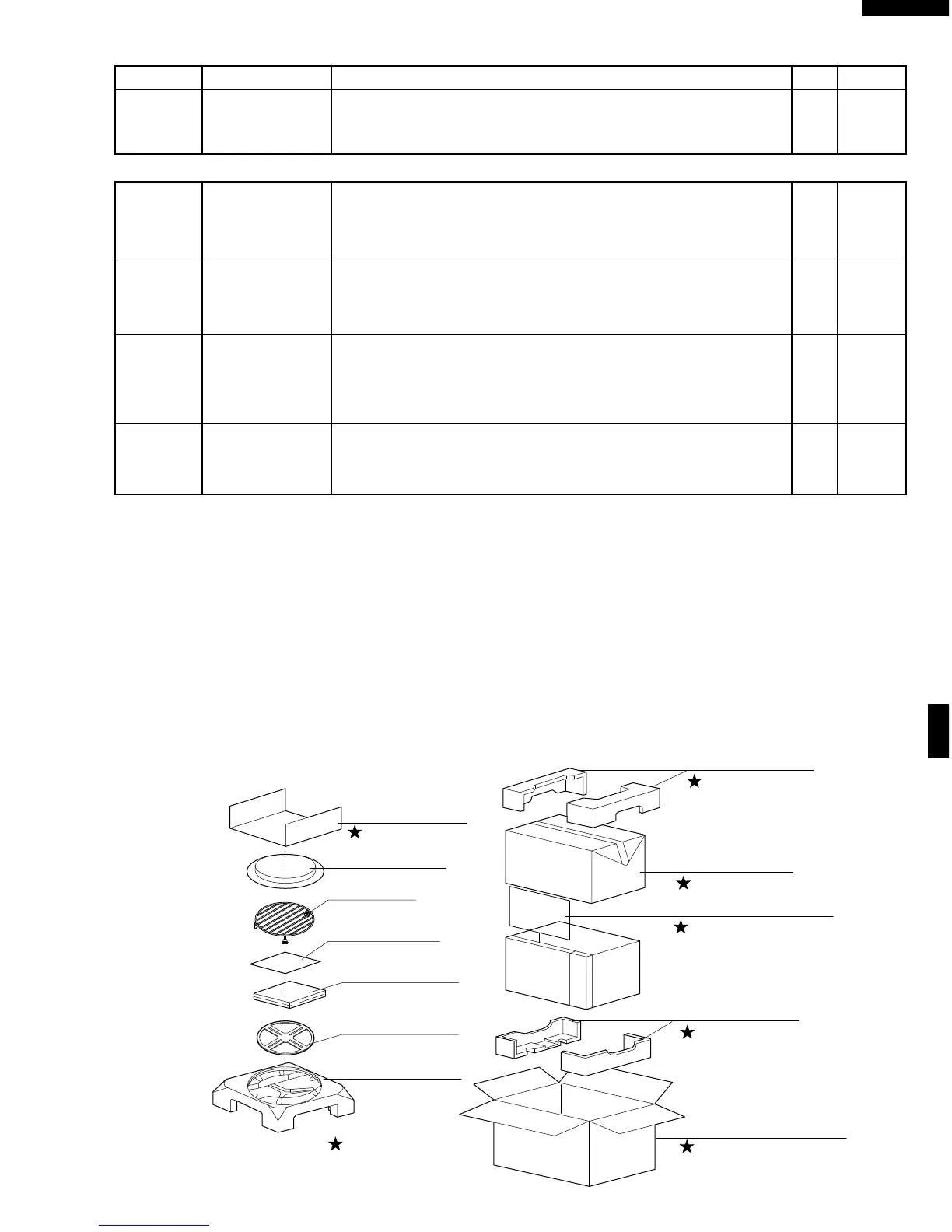

TRAY HOLDER
(SPADFA424WRE0)
TURNTABLE TRAY
RACK
LAMP CAUTION
COOK BOOK & 
INSTRUCTION BOOK
TURNTABLE SUPPORT
TRAY PAD
(SPADPA577WRE0)
TOP PAD ASSEMBLY
(FPADBA381WRK0)
BOTTOM PAD ASSEMBLY
(FPADBA382WRK0)
WRAP COVER
(SSAKHA034WRE0)
DOOR PROTECTION SHEET
(SPADPA204WRE0)
PACKING CASE
SPAKCD092WRE0 [R-820BK]
SPAKCD095WRE0 [R-820BW]
Not Replaceable Items.
