Siemens ACVATIX SKB Series User Manual

25
Siemens
CM1N4564en
Smart Infrastructure
2023-10-17

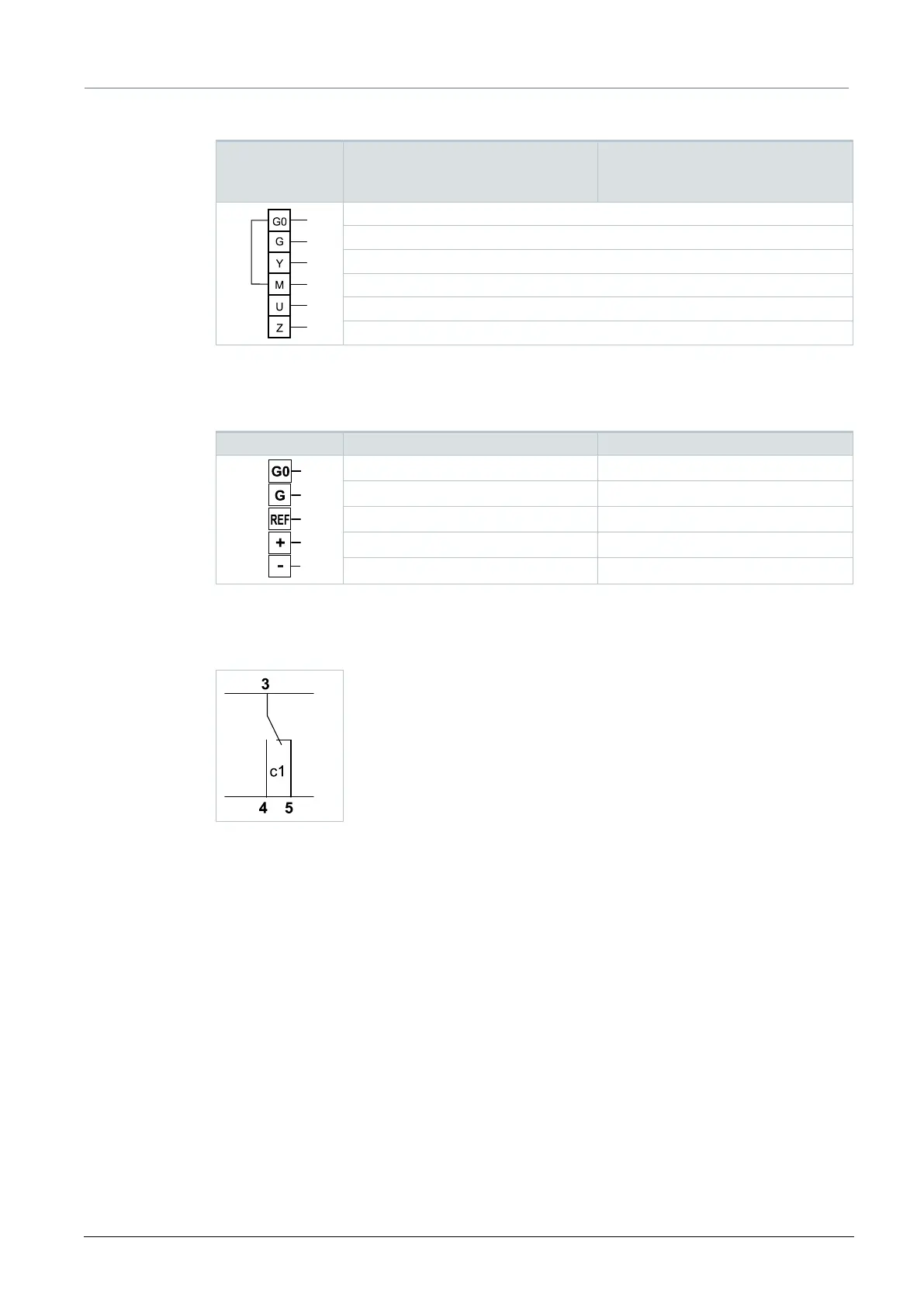

Connection terminals
SKB6..
AC 24 V
DC 0...10 V
4...20 mA
0...1000 Ω
System neutral (SN)
System potential (SP)
Positioning signal DC 0...10 (30) V or DC 4...20 mA
Measuring neutral (= G0)
Position indication DC 0...10 V oder DC 4...20 mA
Override control (Functions [➙ 8])
SKB62/MO
AC 24 V
Modbus RTU Connention cable
System neutral (SN)
Black
System potential (SP)
Red
Reference line (Modbus RTU)
Violet
Bus + (Modbus RTU)
Gray
Bus - (Modbus RTU)
Pink
Auxiliary switch ASC1.6
