66

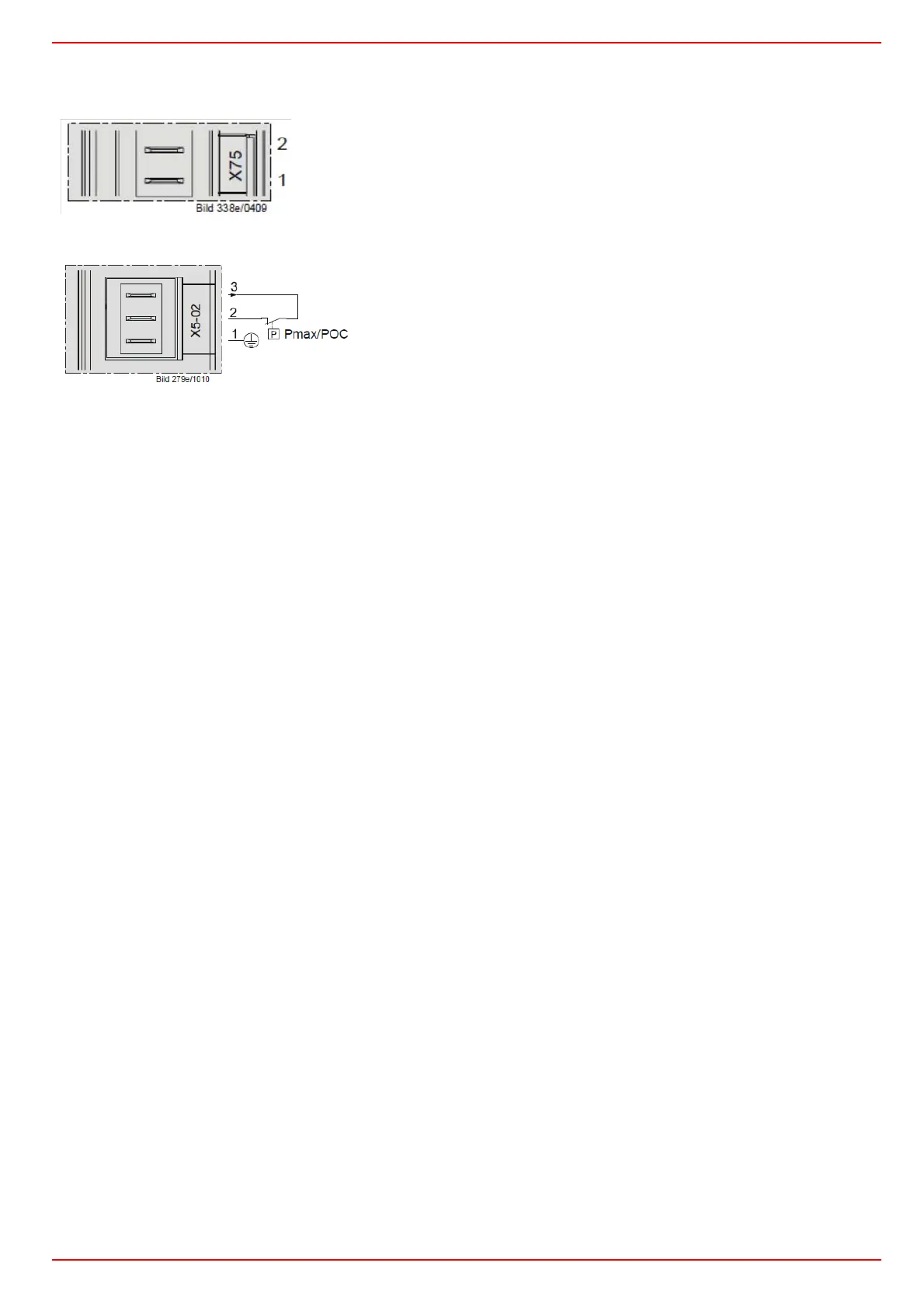

Wiring variants for LMV27
2 - Fuel meter input
1 - Supply fuel meter
ConnectorX75
ConnectorX5-02
ConnectionsPmax
