Siemens PSR-1 User Manual

11

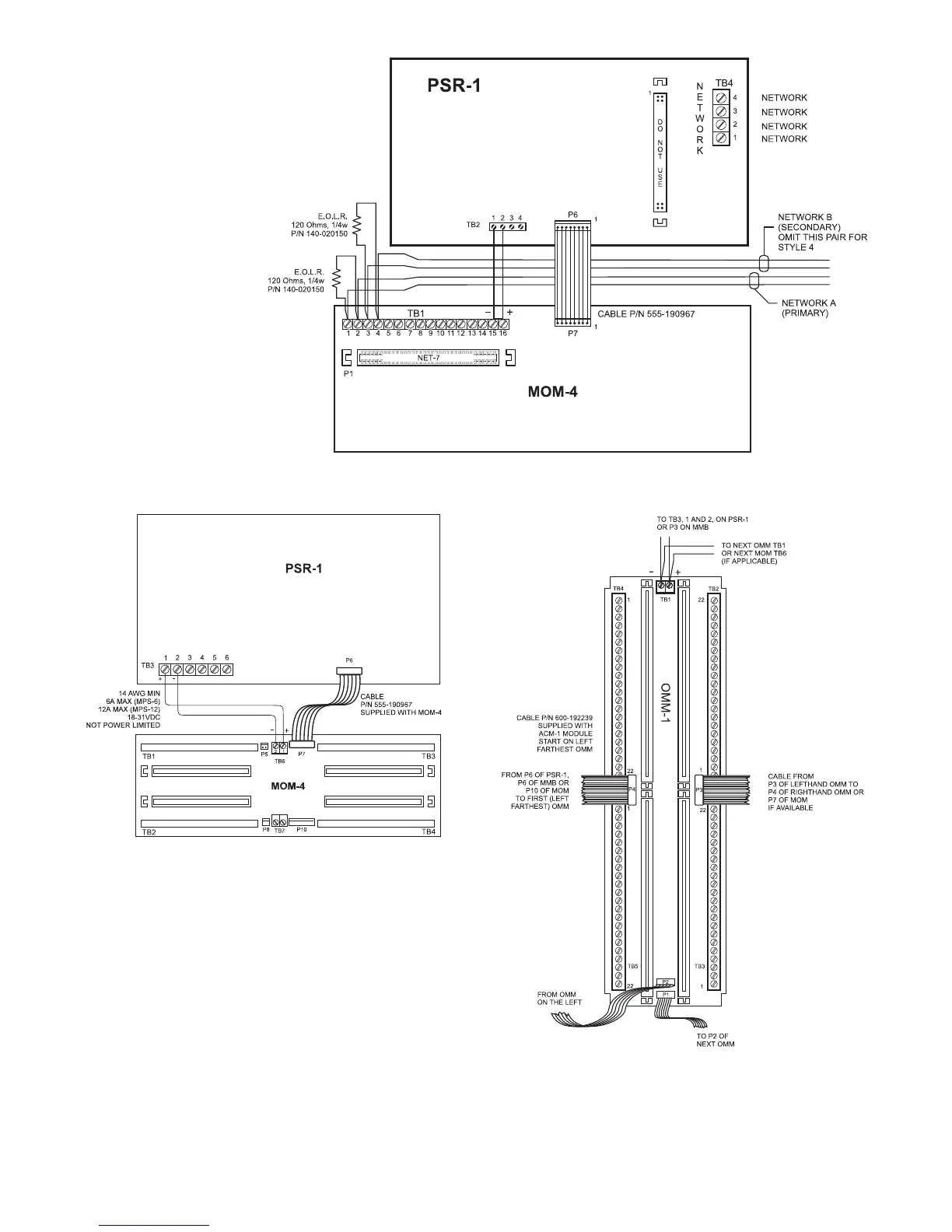

Figure 13
MOM-4 Connection
Figure 15
OMM-1 Connection
OMM-1 Module Connection
When using the PSR with voice modules,
connect TB3-1 and TB3-2 on PSR to TB1 at the
top of the OMM-1 on the far left. See Figure 15.
Refer to the OMM-1 Instructions, P/N 315-
090267 for further information.
When using the PSR with both OMM-1s and
MOM-4s, connect as shown in Figure 16.
Figure 14
Connecting a NET-7
in a MOM-4
REFER TO WIRING SPECIFICATION
FOR MXL, MXL-IQ AND MXLV
SYSTEMS, P/N 315-092772 REVISION
6 OR HIGHER, FOR ADDITIONAL
WIRING INFORMATION.
REFER TO WIRING SPECIFICATION FOR MXL, MXL-IQ AND MXLV SYSTEMS,
P/N 315-092772 REVISION 6 OR HIGHER, FOR ADDITIONAL WIRING INFORMATION.
REFER TO WIRING SPECIFICATION FOR MXL, MXL-IQ AND MXLV SYSTEMS,
P/N 315-092772 REVISION 6 OR HIGHER, FOR ADDITIONAL WIRING INFORMATION.
POSITIVE AND NEGATIVE GROUND FAULT DETECTED AT <30K OHMS FOR TB3, 1-6
