Siemens
PXC....D PXC...-E.D + PXA40-… – Automati
on stations modular series
CM1N9222en_03
Building Technologies
16 Mar 2010

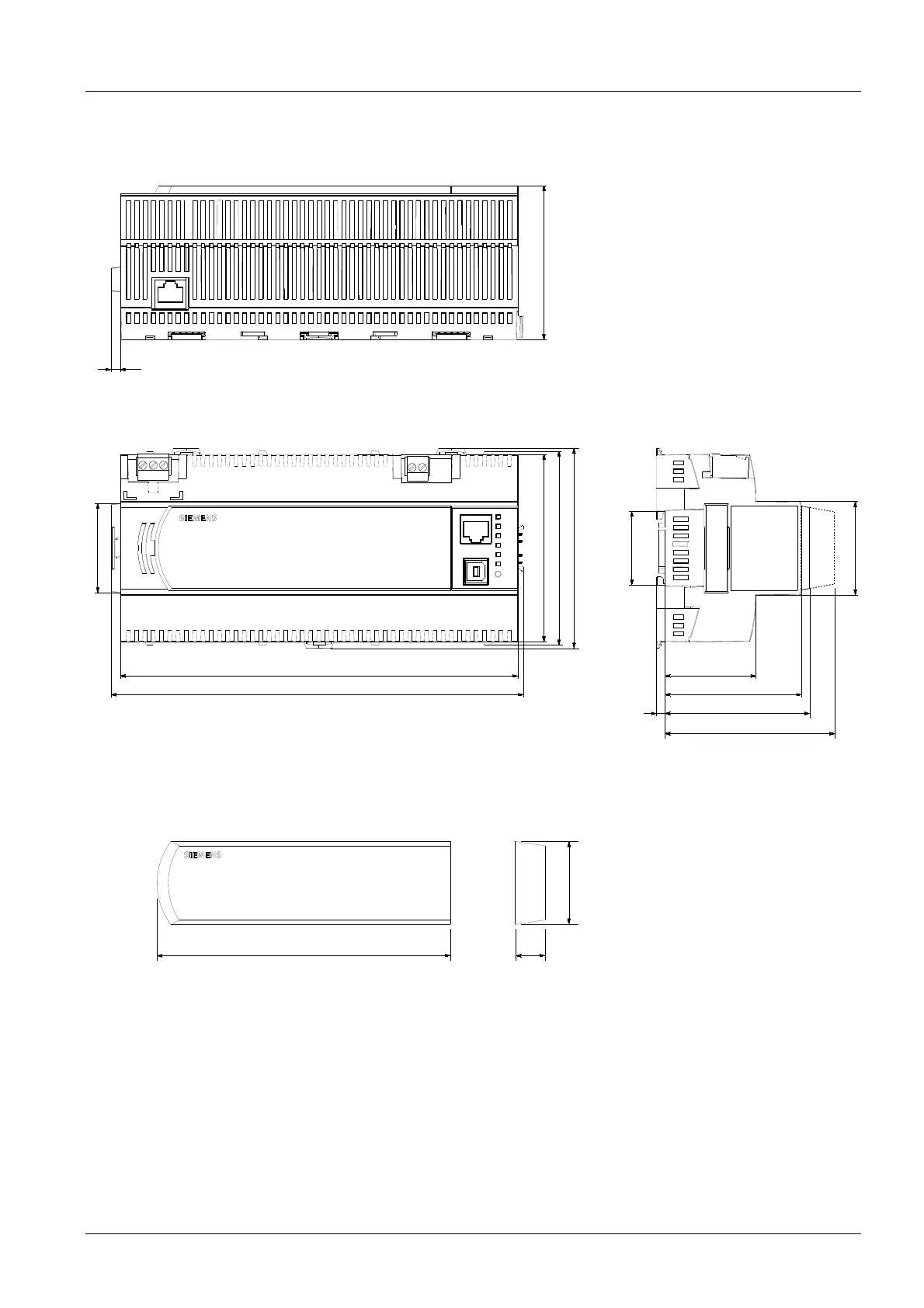

Dimensions
Automation stations, syst
em controllers PXC….D
74
192
199
43
4.5
96
93
90
35.5
45
44
66
70
4
9222m14
81 (PXA40-
...)
(PXA40-...)
Option modules PXA40-...
143
9222m15
40
15
All dimensions in mm
12
14
Table of Contents
Product Features
1
Automation Stations
2
Compatibility
2
System Controllers
2
Option Modules Are "Hot-Pluggable"
3
Automation Station Functions and Operation
4
Programming Language
4
Communication
4
Mechanical Design
5
Mounting Instructions
6
LED Indicators
6
Commissioning
7
Wiring Test
7
Network Connection
7
Force Firmware Download
7
Battery Life
8
Replacing the Battery
8
Technical Data
9
Connection Terminals and Interfaces
11
Pin Assignment for RJ45 Plug
12
Dimensions
13
