Siemens PXC....D PXC...-E.D + PXA40-… – Automation stations modular series CM1N9222en_03
Building Technologies 16 Mar 2010
RUN
FLT
BAT
COM
INF
SRV

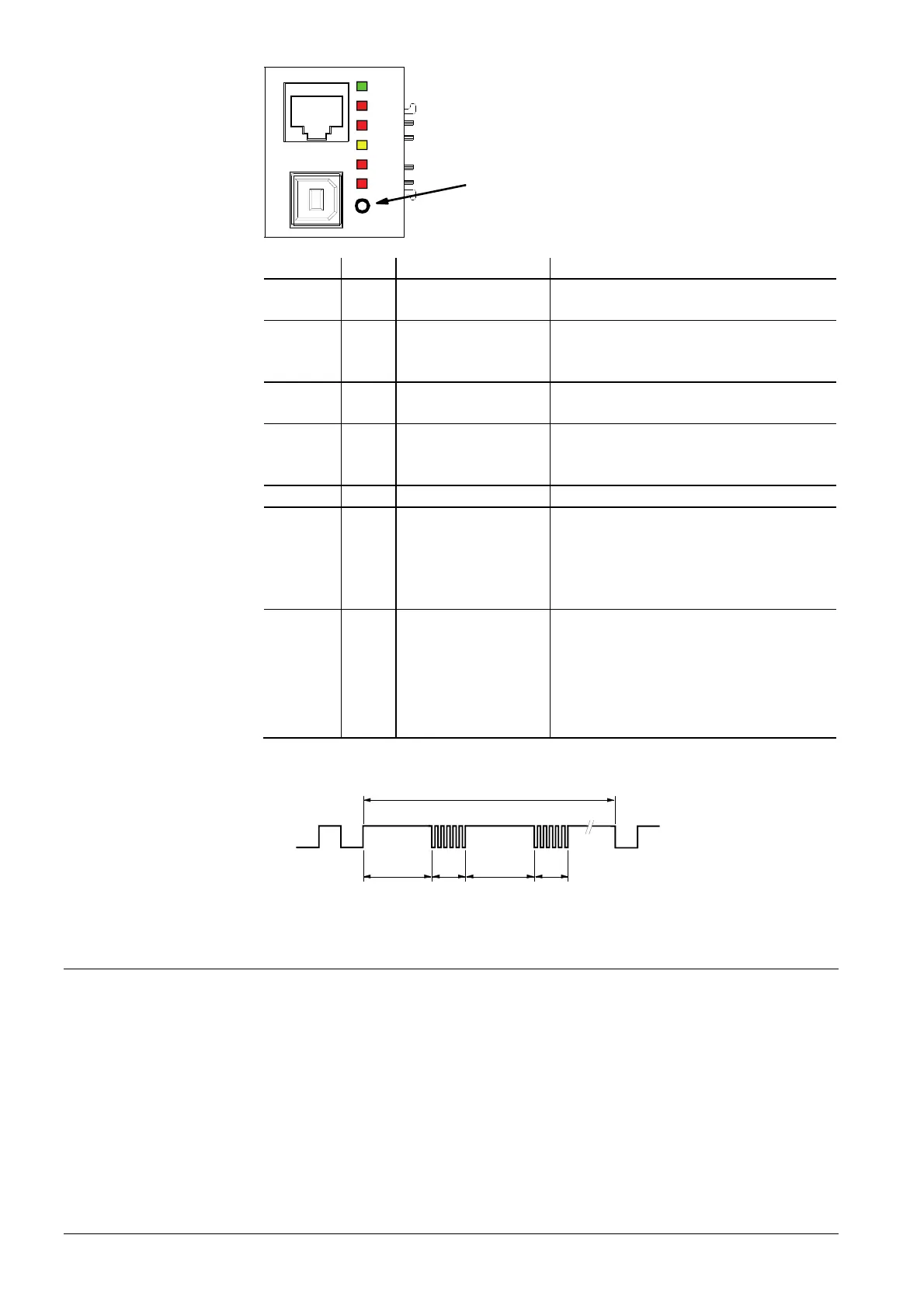

9222z14
Service pin (DESIGO)
LED
Color Activity Function
RUN
Green Continuously ON
Continuously OFF
Power OK
No power
FLT
Red Continuously OFF
Continuously ON
Rapid flashing
OK
Fault
Firmware missing / corrupt
BAT
Red Continuously OFF
Continuously ON
Battery OK
Battery empty– replace!
COM
Yello
w
Continuously ON
Continuously OFF
Flashing
Connection to hub OK
No connection to hub
Communication
INF
Red
Freely programmable
SRV
(Ethernet)
Red Continuously OFF
Continuously ON
Flashing
Flashing per wink
command *)
OK
No connection to hub
No IP address configured
Physical identification of automation
station after receipt of wink command
SRV
(
LONWORKS
Bus)
Red Continuously OFF
Continuously ON
Flashing
Flashing per wink
command *)
L
ONWORKS node is configured
Faulty L
ONWORKS chip, or service pin
currently depressed
L
ONWORKS node is not configured
Physical identification of automation
station after receipt of wink command
*)
Wink command pattern:
2s
1s
21s
5 Hz 5 Hz
9222z02
2s
1s
Mounting instructions
The automation stations can be snapped onto standardized rails.
The power supply connection and the room devices have plug-in screw terminal
blocks. The other interfaces are quick plug-in connections.
Instead of the front cover a PXA40... option module can be fitted on the modular
automation station.
LED indicators
