Siemens PXC....D PXC...-E.D + PXA40-… – Automation stations modular series CM1N9222en_03
Building Technologies 16 Mar 2010
Commissioning
In order to prevent equipment damage and/or personal injuries always follow local
safety regulations and the required safety standards.
The plant operating program is downloaded using the CFC from XWP – locally via
the automation station's RJ45 interface or via the network (BACnet/IP or
BACnet/LonTalk).
Use the PX Design tool in XWP for setting the control parameters and the
configuration data. Data visible on the network may also be edited with an operator
unit PXM20 / PXM20-E (BACnet / LonTalk or BACnet / IP).
Part of the data can also be edited locally using the operator unit PXM10.
It is possible to test field devices and the wiring as soon as the power supply is
connected, without first downloading the plant operating program.
 BACnet / LonTalk for PXC...D and PXC..-T.D: using operator unit PXM20
 BACnet / IP for PXC..-E.D: using operator unit PXM20-E.
Requirement: PX and PXM20-E are on the default IP and alone on the IP
segment.
The network addresses are configured with XWP. For unique identification in the
network (BACnet/IP or BACnet/LonTalk), press the Service button with a long,
pointed object or send a wink command to the appropriate automation station
(service LED blinks).
 Variant via V24:
If the Force Firmware Download Key is pressed during a restart (reset), the
current D-MAP program is deleted from the FLASH.
The automation station waits briefly for the signal to activate the FWLoader and
then starts the automation station.
 IP variant: (for PXC..-E.D, significantly faster)
Press the Force Firmware Download Button for 5 seconds (without hitting the
reset button).
Requirement: The automation station has conducted a node setup and no
application is loaded or was deleted in the CFC by clear/reset (communication
settings remain – which would not be the case when erasing by pressing the
reset key).

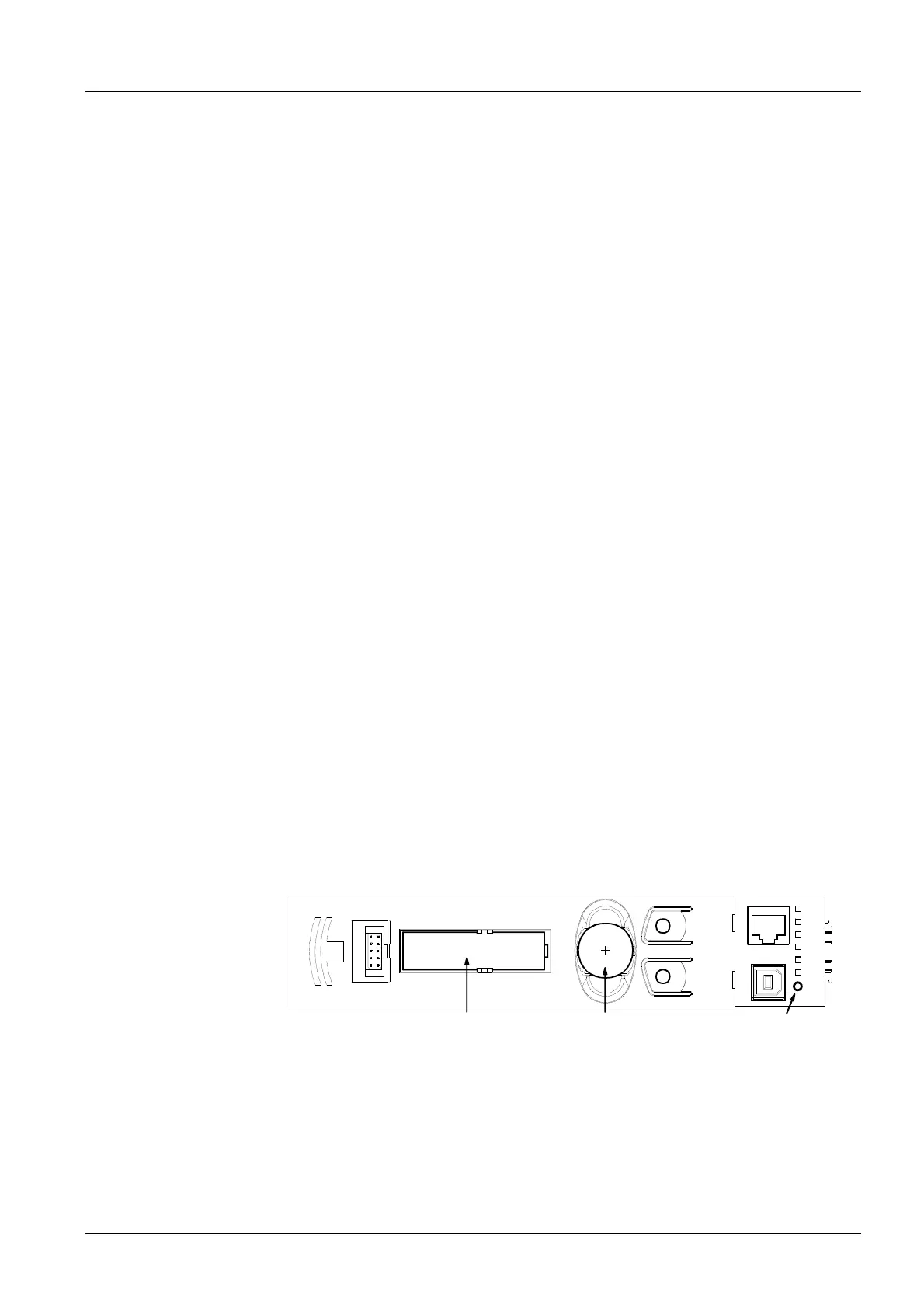

Press the Reset button to force a restart
Alkaline AA
FW
Reset
Lithium Service Pin
RUN
FLT
BAT
COM
INF
SRV
9222z04
The power supply of the automation station must be switched on and off
simultaneously with the power supply of the TX-I/O modules.
Otherwise, unwanted alarms will be generated.
Load plant operating
program
Setting parameters and
configurations
Wiring test
Network connection
Force Firmware
Download
Restart
Assignment of
buttons and batteries
Power supply
