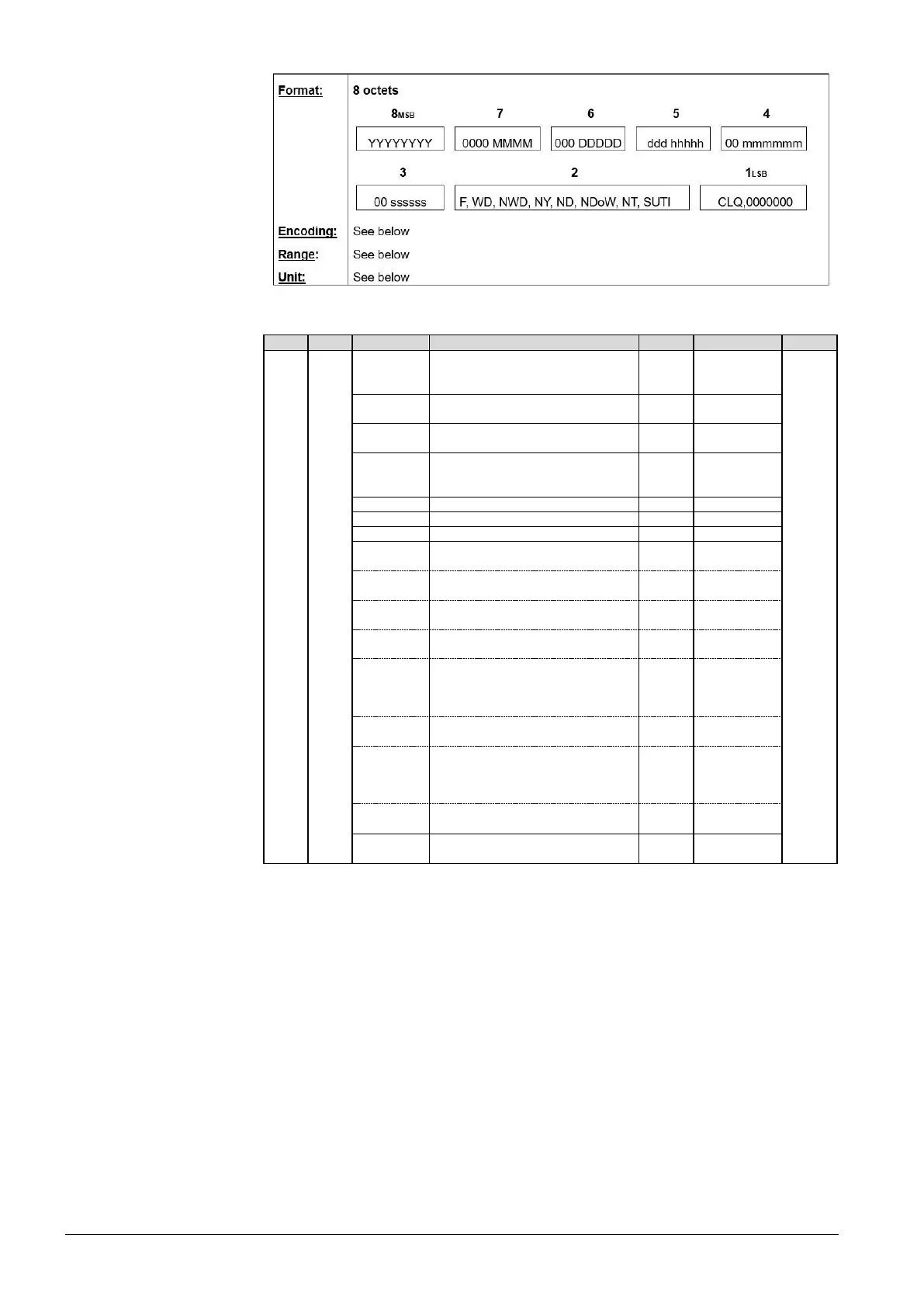

Datapoint Type
ID:
Name:
Encoding:
Range:
Unit:
Usage:
19.001
DPT_DateTime
Y
Binary, offset 1900
0 = 1900
255 = 2155
[0…255]
Year
General
M
Binary 1 = January
12 = December
[1…12]
Month
D
Binary 1 = 1st day
31 = 31st day
[1…31]
Day of month
ddd
1 = Monday
… 7 = Sunday
0 = any day
[0…7]
Day of week
hhhhh
Binary
[0…24]
Hour of day
mmmmmm
Binary
[0…59]
Minutes
ssssss
Binary
[0…59]
Seconds
F
0 : Normal (No fault)
1 : Fault
{0,1}
Fault
WD
0 : Bank day (No working day)
1 : Working day
{0,1}
Working Day
NWD
0 : WD field valid
1 : WD field not valid
{0,1}
No WD
NY
0 : Year field valid
1 : Year field not valid
{0,1}
No Year
ND
0 : Month and Day of Month fields
valid
1 : Month and Day of Month fields
not valid
{0,1}
No Date
NDoW
0 : Day of week field valid
1 : Day of week field not valid
{0,1}
No Day of
Week
NT
0 : Hour of day, Minutes and
Seconds fields valid
1 : Hour of day, Minutes and
Seconds fields not valid
{0,1}
No Time
SUTI
0 : Time = UT+X
1 : Time = UT+X+1
{0,1}
Standard
Summer Time
CLQ
0 : clock without ext. sync signal
1 : clock with ext. sync signal
{0,1}
Quality of
Clock
System clock format
