4.4 Application overview

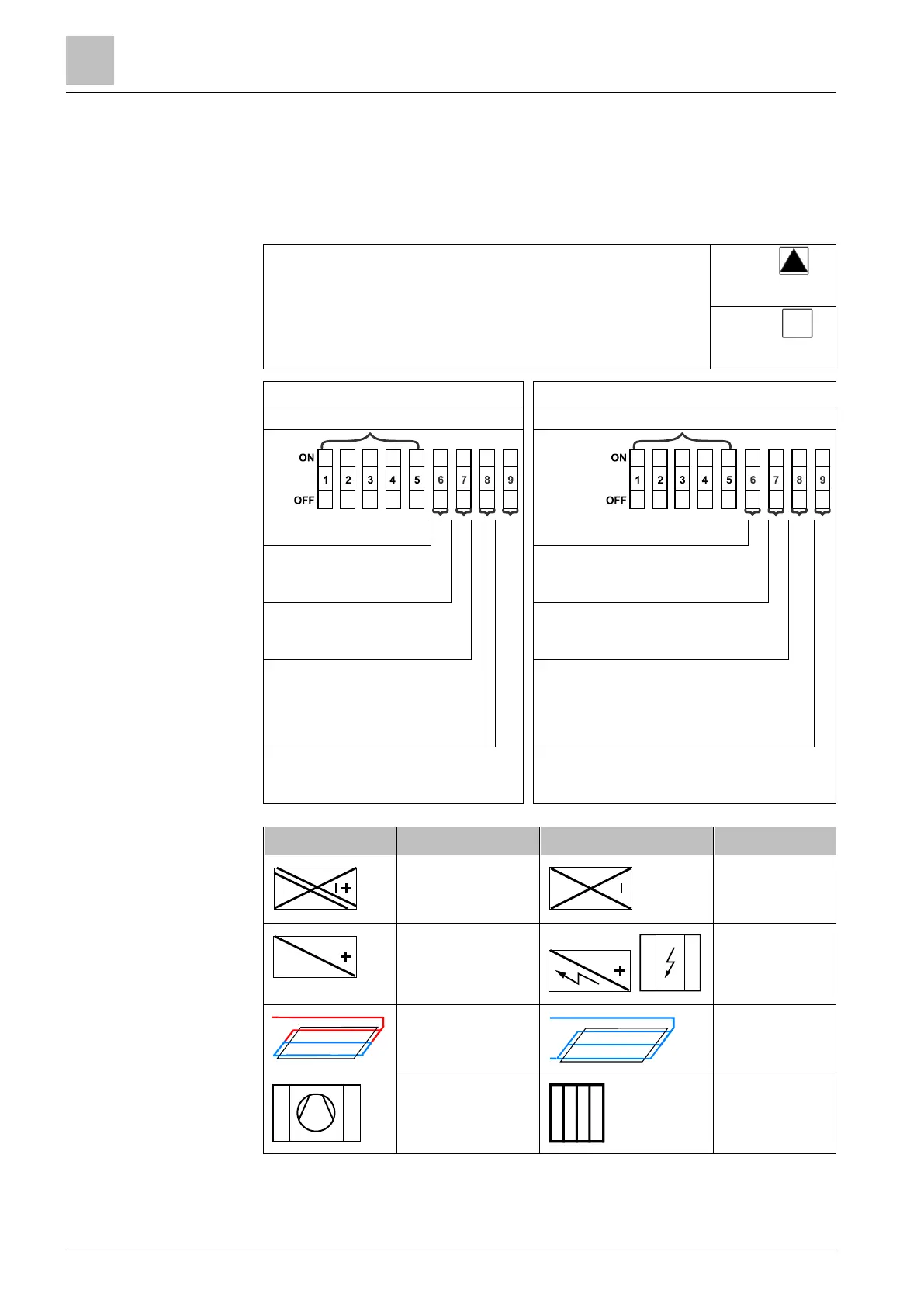

The RDG2..KN room thermostats support the following applications, which can be
configured using the DIP switches at the rear of the unit or commissioning tool.
Set DIP switches 1…5 to OFF (remote configuration, factory setting) to select an
application via commissioning tool.
Remote configuration, via commissioning tool (factory setting)
● Synco ACS
● ETS
● Commissioning via Siemens smartphone application PCT
Go
ON =
DIP NO.: 1…5
OFF =
DIP NO.: 1…5
RDG20..KN
RDG26..KN
Application
Application
Fan coil fan speed
ON: 3-speed
OFF: DC 0…10 V
Fan coil fan speed
ON: 3-speed
OFF: DC 0…10 V
FCU control outputs #1
ON: 3-position
OFF: 2-position
Control outputs #1
ON: On/Off
OFF: DC 0…10 V
FCU control outputs #2
ON: 3-position
OFF: 2-position
Control outputs #2
ON: On/Off or 6-port valve DC
invert
OFF: DC 0…10 V or 6-port valve
DC non-invert
Scheduler
ON: Enable
OFF: Disable
Scheduler
ON: Enable
OFF: Disable
Icon
Description
Icon
Description
Heating/cooling
register
Cooling register
Heating register
Electric heater
Chilled/heated
ceiling
Chilled ceiling
Heat
pump/compressor
Radiator
Remote configuration
