Technical information
8.9 Bit assignment of the direct keys
Comfort Panels
218 Operating Instructions, 07/2017, A5E36770603-AB
8.9
Bit assignment of the direct keys

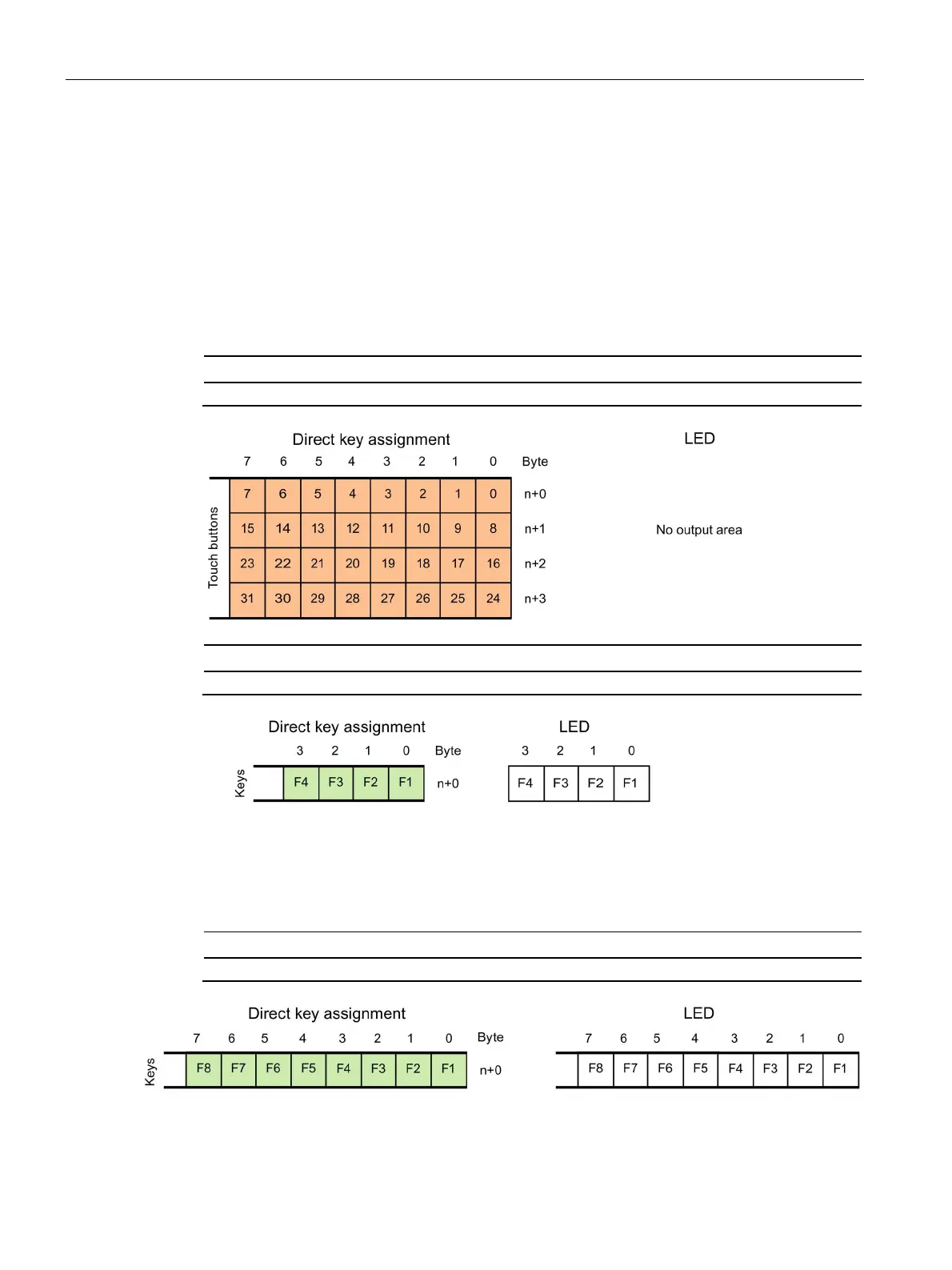

The following figures show the assignment of the keys and LEDs to the bytes in the
controller process image.
Additional information may be available in your system documentation.
8.9.1
KTP400 Comfort
HMI device
Inputs
Outputs
Touch operation
4 bytes
-
HMI device
Inputs
Outputs
Key operation
1 byte
1 byte
8.9.2
KP400 Comfort
Inputs
Outputs
1 byte 1 byte
