Siemens SIMATIC HMI User Manual

Mounting and connecting the HMI device
3.3 Connecting the device
Comfort Panels
Operating Instructions, 07/2017, A5E36770603-AB
51
3.3.4
Connecting the configuration PC
Wiring diagram

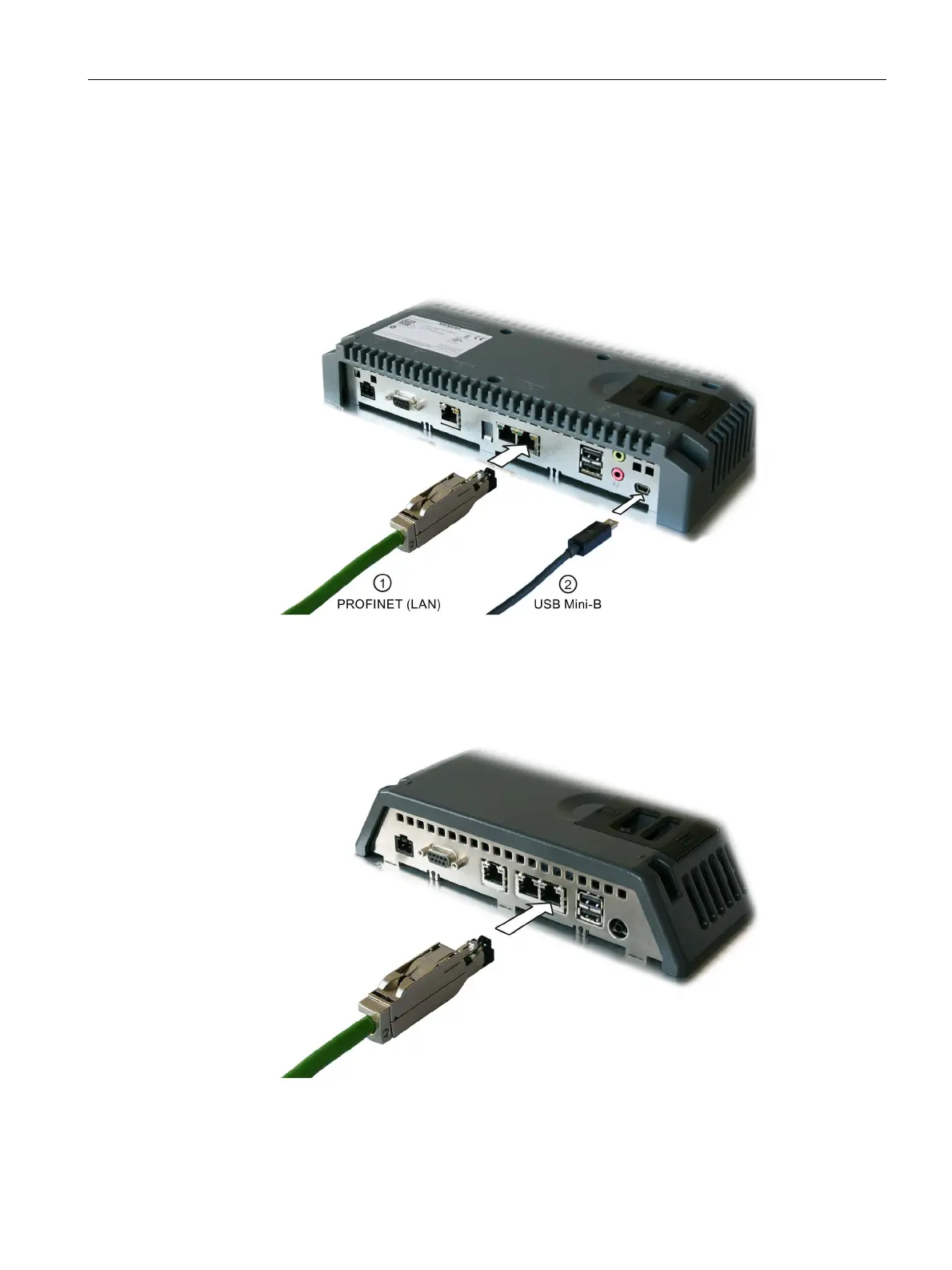

The following figure shows how to connect a Comfort V1 device to a configuration PC with
TP1500 Comfort V1 as an example.
The Comfort V1.1 devices are connected in the same way.
The following figure shows how to connect a Comfort V2 device to a configuration PC with
TP1500 Comfort V2 as an example.
The interfaces are described in the specifications.
