Siemens SINUMERIK 840D sl System Manual

4.8.3 Operator controls
The Display Manager is enabled.

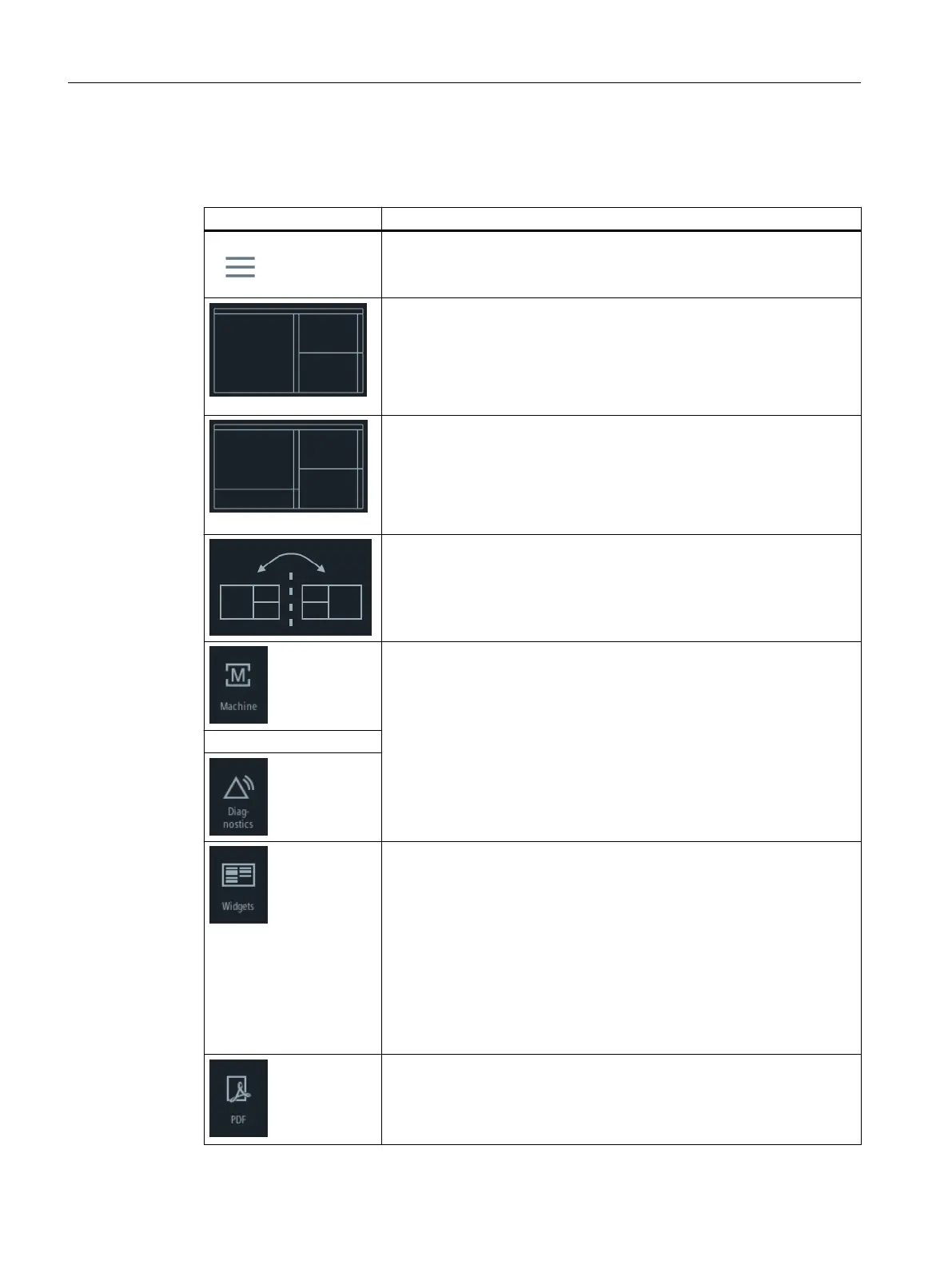

Operator control Function
Menu
Tap on the menu to select the desired arrangement of the display areas.
3 display areas
● SINUMERIK Operate (with function block)
● Widget area
● Applications area (PDF, virtual keyboard)
4 display areas
● SINUMERIK Operate (with function block)
● Widget area
● Applications area (PDF, virtual keyboard)
● Area with virtual keyboard
Mirroring display areas
Mirrors the selected arrangement of the display areas.
Navigating in SINUMERIK Operate
Tap on the corresponding icon to directly open the desired operating area.
...
Widgets
The following widgets are available by default:
● Actual values (Page 24)
● Zero point (Page 24)
● Tool (Page 22)
● Axle load (Page 22)
● Alarms (Page 22)
● Program runtime (Page 23)
● Service life (Page 23)
PDF
Opens the PDF stored here.
SINUMERIK Operate expansion using a sidescreen
4.8 SINUMERIK Operate Display Manager
Smart machine tool operation
28 System Manual, 12/2017, 6FC5397-7FP40-0BA0

Siemens SINUMERIK 840D sl Specifications

General

Control Type	CNC
Number of Axes	Up to 31
Max Number of Channels	10
Interfaces	Ethernet, PROFIBUS, PROFINET, USB
Interpolation	5-axis interpolation
Operating Temperature	0°C to 45°C
Relative Humidity	Up to 95% (non-condensing)
Display	TFT color display, various sizes
Programming Languages	DIN/ISO
Safety Features	Safety Integrated
PLC	Integrated PLC S7-300
Drive Interface	SINAMICS S120
Data Storage	CF card, USB
Operating System	Windows-based
