Description, device design, dimension drawing
2.3 Potentiometer
Selectivity modules
14 Manual, 01.2017, C98130-A7579-A1-2-7629
The potentiometer ⑤ on the front of the device is used to set the response threshold of the
output current. When delivered, the maximum possible response threshold is set.

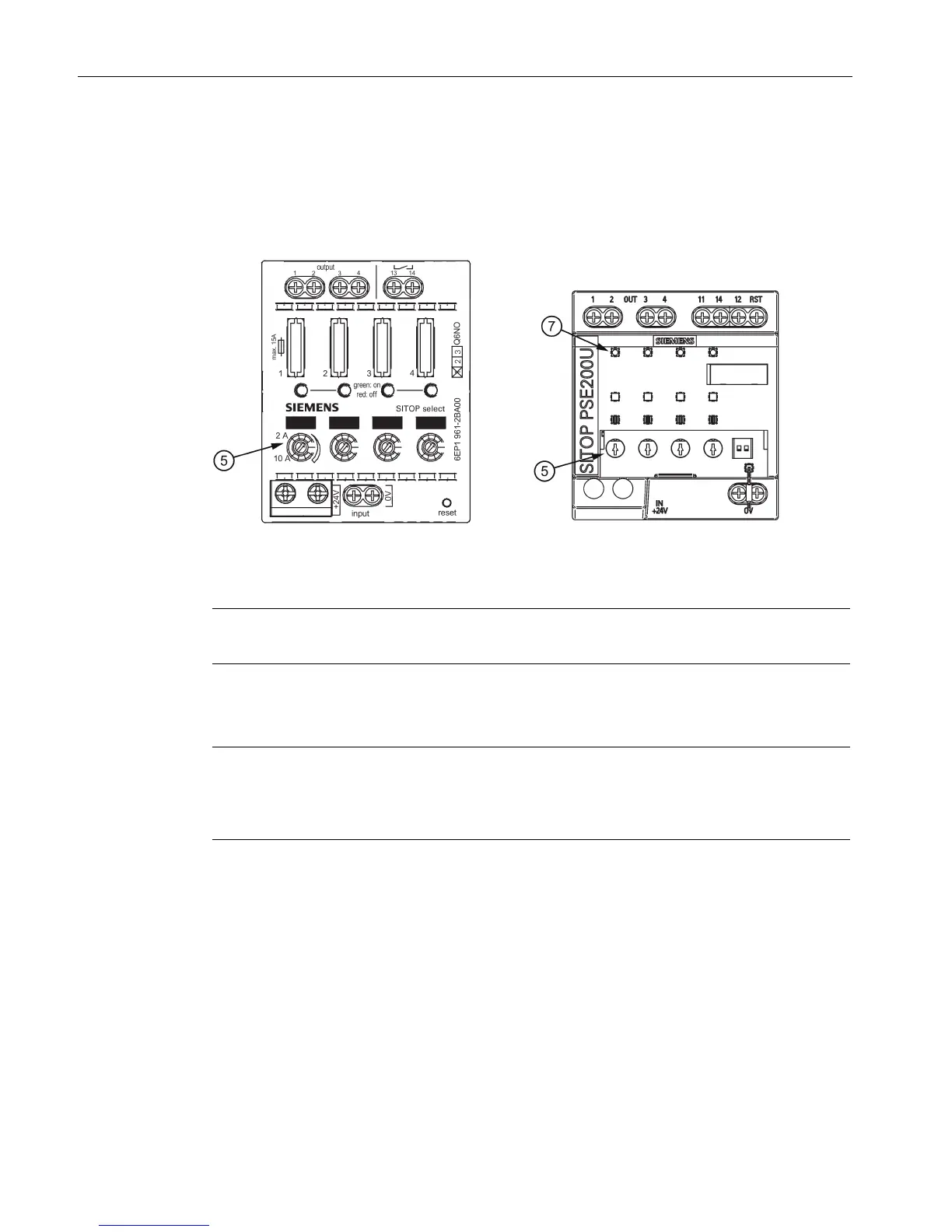

Figure 2-3 Potentiometer (SITOP select and SITOP PSE200U)
Note
It is only permissible to use an insulated screwdriver when actuating the potentiometer.
For information on actuating the potentiometer (screwdriver, torque), see Figure 2-2
Terminal data (Page 13).
Note
For SITOP PSE200U, the actual output current of a branch can be determined by measuring
the voltage at measuring point "MP"
⑦ with respect to the "0 V" terminal. A measured
V corresponds to an output current of 1 A.
