Page 8
Controls
ENGINE CONTROLS
Throttle Control
Move throttle control to fast position to start and run the
engine. To stop the engine, move to idle position, then to
off.
Choke Control
Put choke control in choke position if engine is cold. A
warm engine requires less choking than a cold engine.
Refer to your engine manual for further information.

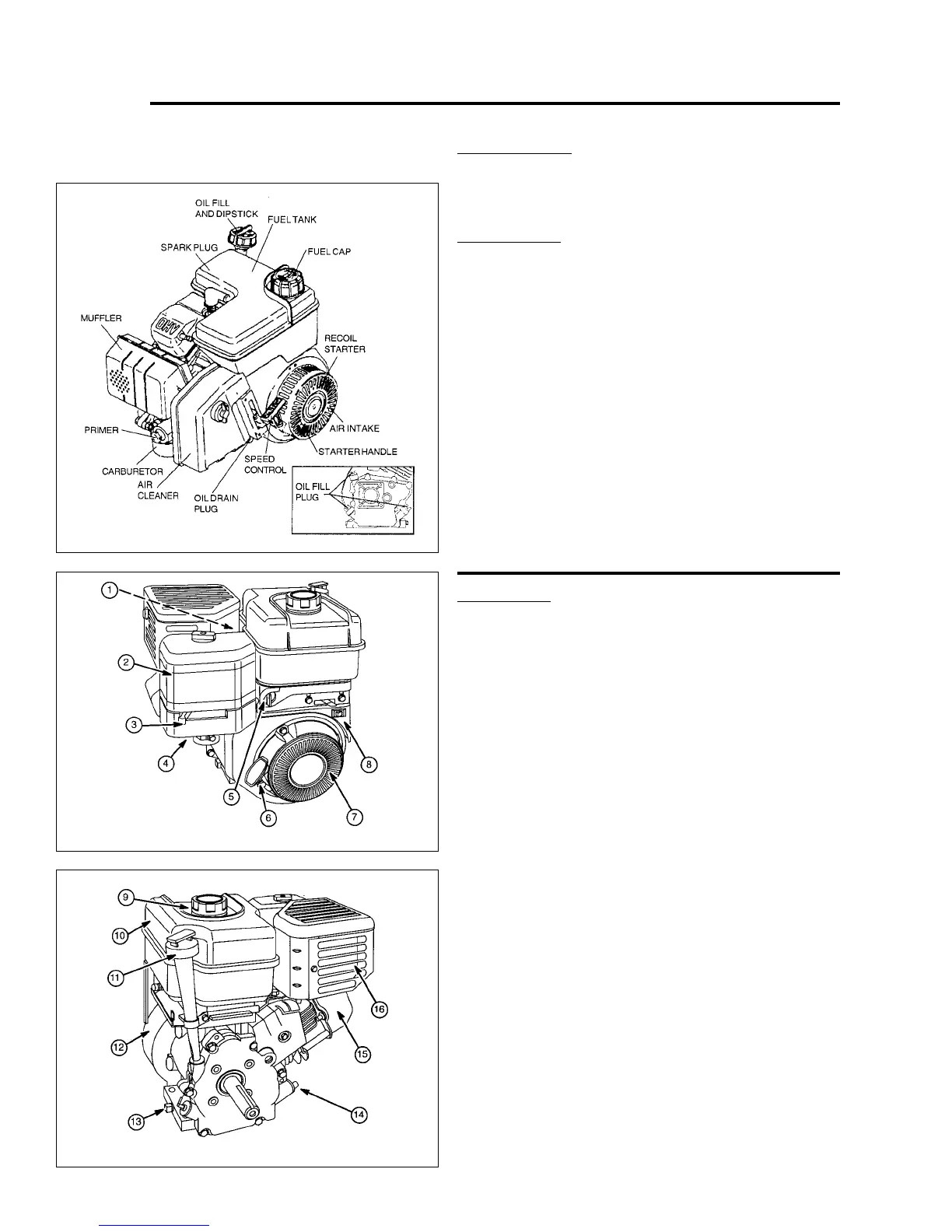

Model 616RT
1.Spark plug wire
2. Air cleaner
3. Choke
4. Carburetor
5.Fuel shut-off valve (if equipped)
6. Rope handle
7. Finger guard
8.Stop switch (if equipped)
9.Fuel fill
10. Fuel tank
11. Oil fill/Dipstick (if equipped)
12. Blower housing
13. Oil drain plug
14. Oil fill cap
15. Engine Id plate
16. Muffler
Model 616RT Intec Engine
Model 616RT Intec Engine
Model 514RT Engine
