HANDLEBAR ADJUSTMENTS
(616RT)
Tilt handlebars up or down, swivel 30 ° left or right.
To Tilt Up or Down:
1. Push down on handlebar tilt lever.
2. While holding tilt lever down, adjust handlebars to a
comfortable height by moving up or down. There are
4 height positions.
3. Release handlebar tilt lever to lock.
To Swivel 30
°°
°°
° Left or Right:
1. Squeeze handlebar swivel lever towards handlebar
stem.
2. While holding handlebar swivel lever in, rotate
handlebar 30° left or right.
3. Handlebars will lock in place after handlebar swivel
lever is released.

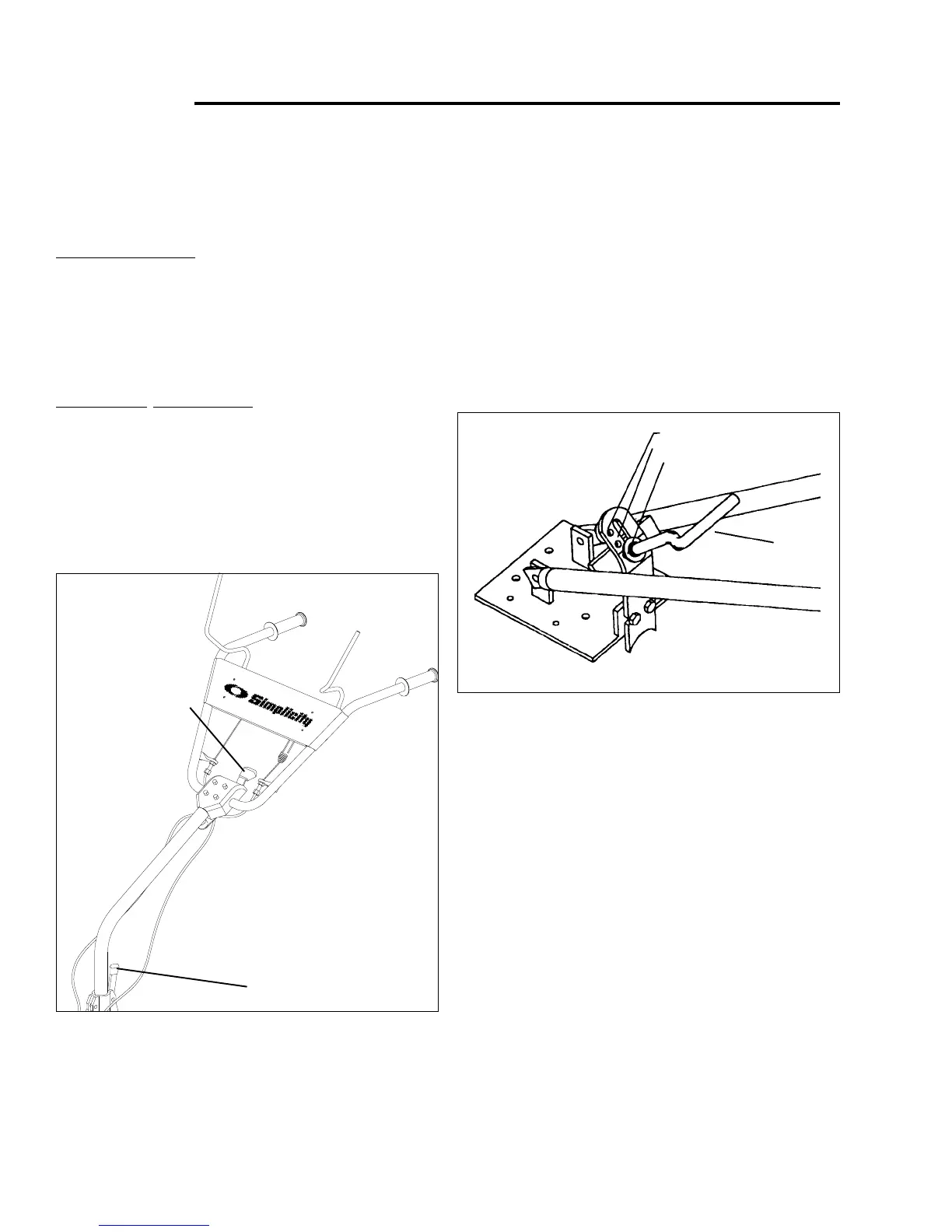

Handlebar Tilt Lever
Handlebar Swivel Lever
Adjustments
T-clamp
3 HANDLEBAR HEIGHT SETTINGS
high
medium
low
HANDLEBAR ADJUSTMENTS
(514RT)
Adjust handlebar height.
The ideal height of the handlebar varies with operator
height and the depth of tilling. to adjust handlebar height:
1. Unscrew T-Clamp until handlebar moves freely up and
down.
2. Align locator pin to desired hole in the height
adjustment bracket by raising or lowering handlebars.
3. Retighten T-Clamp firmly.
Model 514RT
Model 616RT
