Simplicity 1693756 User Manual

16
Initial Setup & Assembly

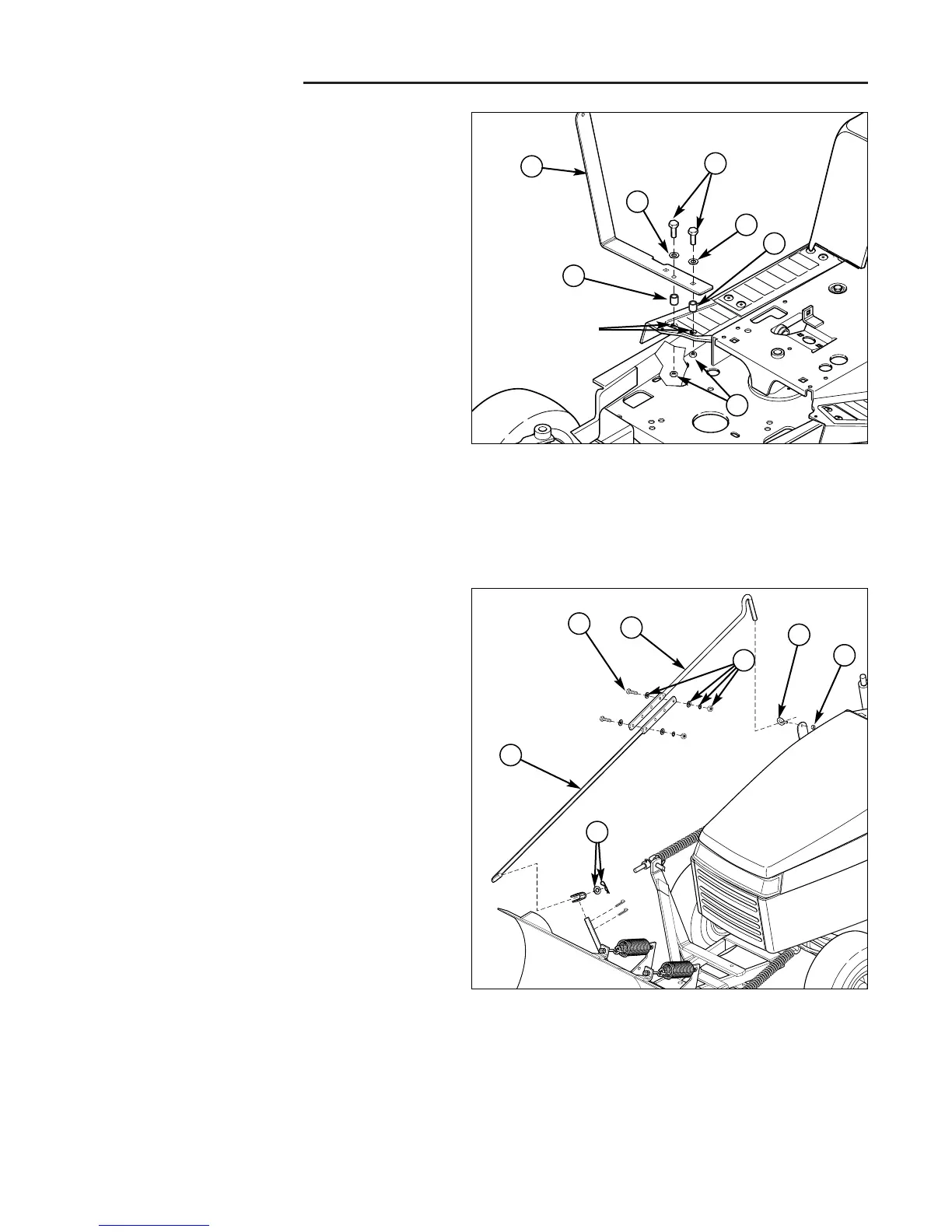

Figure 23. Control Rod Support
A. Support
B. 5/16-18 x 1-1/2 Capscrews
C. 5/16 Centerlock Nuts
D. 5/16 Plain Washers
E. Spacers
Install Angling Control Rod
NOTE: If installing the dozer attachment on a unit
equipped with a snowcab, replace the control rod sup-
port (A, Figure 23) with the hanging support (Ref. No. 40,
Figure 9). Mount the hanging support to the front cab
cross-bar.
1. Remove and discard the front two ratchet fasteners
from the right foot rest pad. Drill out the holes using
a 3/8” drill (Figure 23).
2. Set the angling control support (A, Figure 23) and
spacers (E) on the foot rest pad. Insert two 5/16-18 x
1-1/2 capscrews (B) through the support spacers,
footrest pad, and footrest. Secure using washers and
nuts (C).
A
E
E
D
D
B
C
Figure 24. Assemble Control Rods
A. 1/4-20 Nylock Nut
B. Eyelet
C. Upper Control Rod
D. 5/16-18 x 1-1/4 Capscrew
E. 5/16 Washers, Lockwashers, & Nuts
F. Lower Control Rod
G. Hair Pin Clip & Washer
A
B
C
D
F
G
E
Drill out to 3/8”
3. Connect the lower angling rod (F, Figure 24) to the
dozer release lever using a hair pin clip and washer
(G).
4. Insert the upper control rod (C) through the eyelet
(B), and secure the eyelet to the support using a 1/4-
20 nylock nut (A).
NOTE: It may be necessary to leave the eyelet nut (A,
Figure 24) loose to prevent binding.
5 Secure the upper rod (C) to the lower rod (F) using
two 5/16-18 x 1-1/4 capscrews (D), washers (qty. 4),
lockwashers, and nuts (E). NOTE: Match offset to
offset so the rods form a straight line.
