17
Removing &
Attaching the Hitch & Blade
REMOVAL & INSTALLATION
Removing & Attaching Dozer Blade
1. Lower the blade. Put the lift lever in the middle notch
(float position).
2. Remove the hair pin clip and washer (D, Figure 25)
securing the angling control rod to the clevis.
Disconnect the angling control rod.
3. Remove the angling control rod from the
support arm (A).
4. Remove the pivot pin (C) connecting the blade and
pushbar. Remove the blade.
5. Raise the push bar and remove pin (E) securing the
chain to the chain bracket.
6. Lower the lift and remove the clip (B) securing the lift
rod to the push bar and lift rod.
7. Remove the pins (F) securing the push bar to the
tractor hitch.
8. Reinstall all pins for storage.
Install in reverse order of removal.

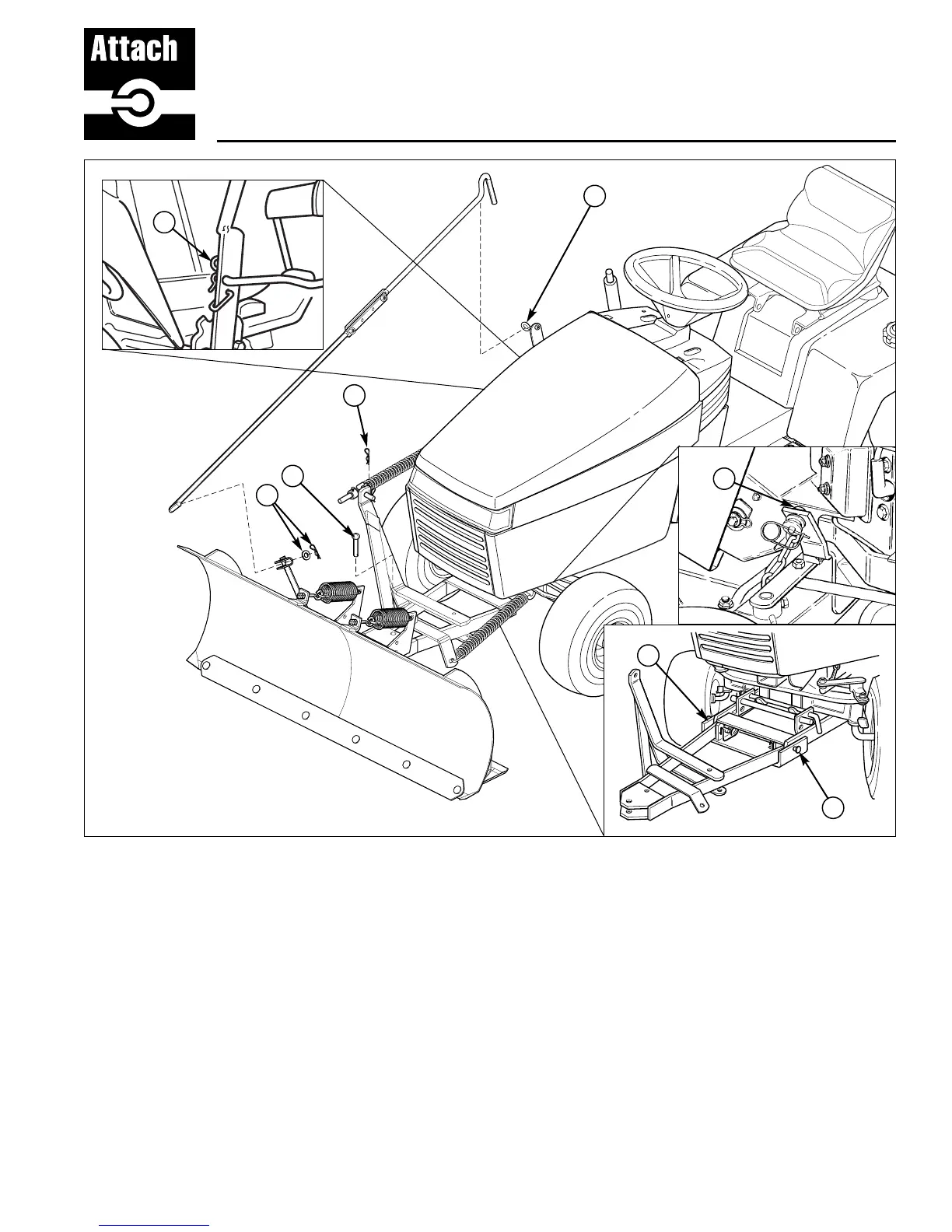

Figure 25. Dozer Removal
A. Support Arm C. Pivot Pin E. Clevis Pin
B. Hair Pin Clip D. Hair Pin Clip & Washer F. Clevis Pins
D
C
B
A
B
F
F
E
