Operation
CONTROLS
Refer to figure 7 A for tractor controls and figure 7B
for engine/dash controls.

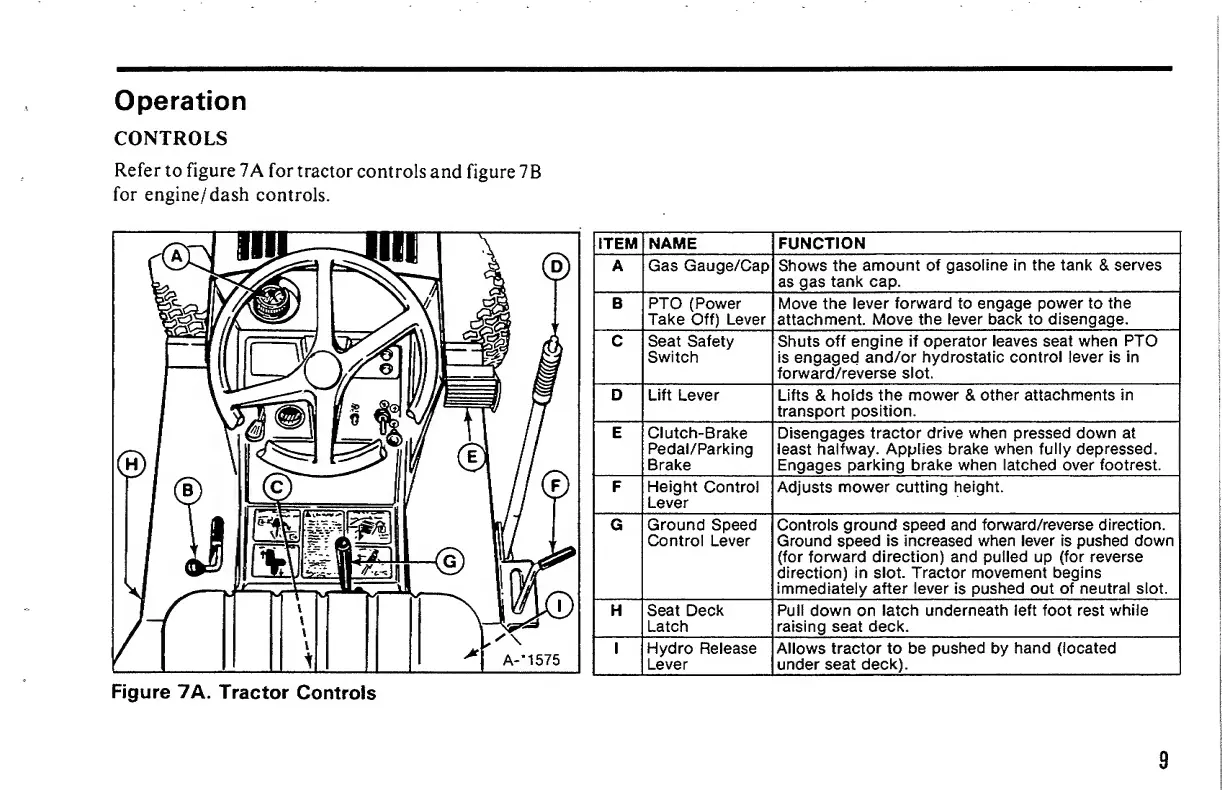

Figure 7A. Tractor Controls
ITEM NAME FUNCTION
A Gas Gauge/Cap
Shows the amount of gasoline in the tank & serves
as gas tank cap.
B
PTO (Power
Take Off) Lever
Move the lever forward to engage power to the
attachment. Move the lever back to disengage.
Shuts off engine if operator leaves seat when PTO
is engaged and/or hydrostatic control lever is in
forward/reverse slot.
D
Lifts & holds the mower & other attachments in
transport position.
E
Clutch-Brake
Pedal/Parking
Brake
Disengages tractor drive when pressed down at
least halfway. Applies brake when fully depressed.
Engages parking brake when latched over footrest.
F
Height Control
Lever
Adjusts mower cutting height.
G Ground Speed
Control Lever
Controls ground speed and forward/reverse direction.
Ground speed is increased when lever is pushed down
(for forward direction) and pulled up (for reverse
direction) in slot. Tractor movement begins
immediately after lever is pushed out of neutral slot.
Puli down on latch underneath left foot rest while
raising seat deck.
1
Hydro Release
Lever
Allows tractor to be pushed by hand (located
under seat deck).
9
