23
SERVICE AIR FILTER &
PRE-CLEANER
Service Interval: Pre-Cleaner: Every 25 hours or as
required. Air Filter: Every 50 hours or as required.
Replacement Interval: Pre-Cleaner: As required. Air
Filter: Every 200 hours or once per season.
Air Filter Removal & Installation
1. Lift up on the bottom of the latch (A, Figure 28 or 29)
and flip the latch away from the cover.
2. Remove the cover (B). Remove the filter (C, Figure
27) and pre-cleaner (D).
3. Install the pre-cleaner (D) with the mesh side up.
Install the filter (C) as shown.
4. Install the cover (B, Figure 29) making sure the tabs
are inserted into their slots. Secure with the latch (A).

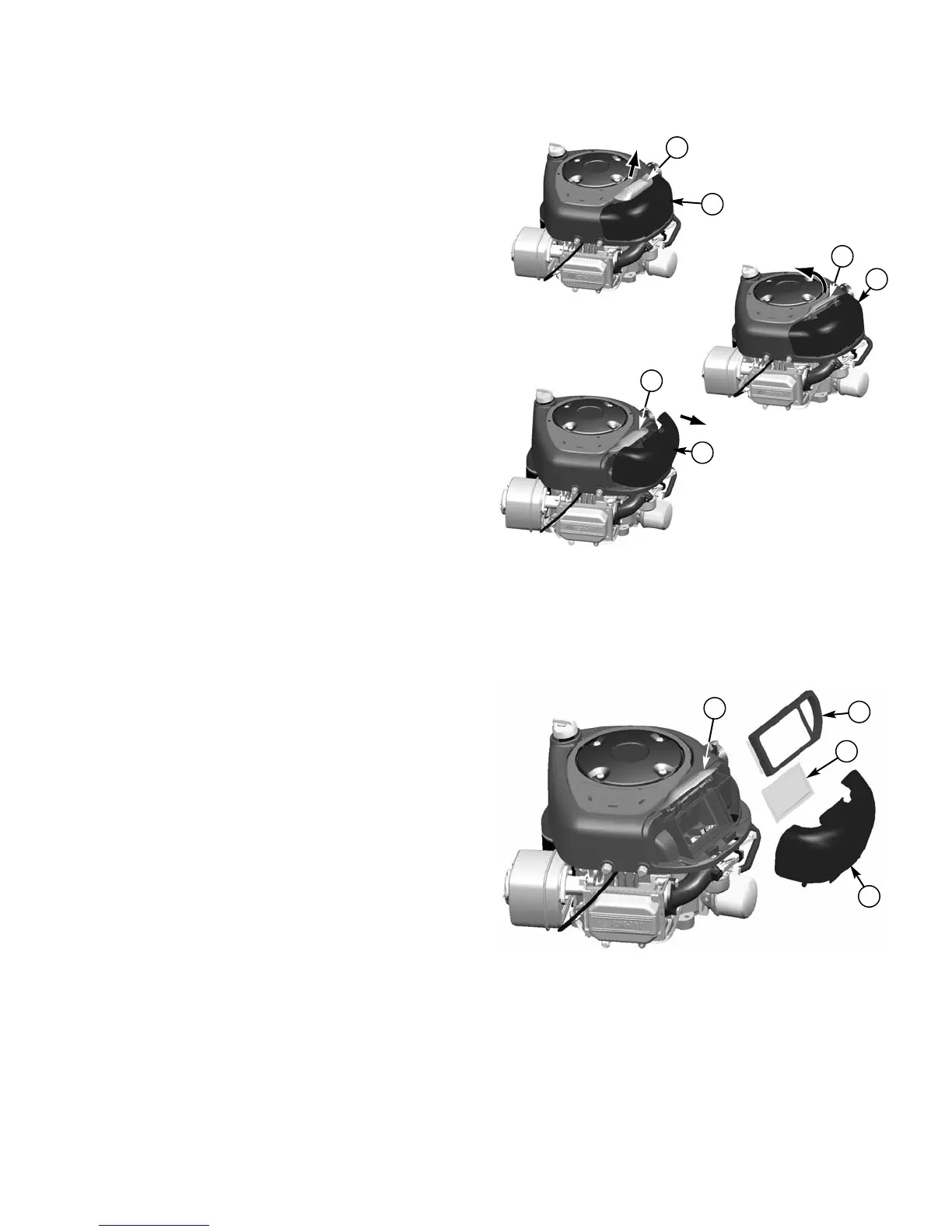

Figure 28. Air Filter Assembly - Briggs & Stratton
Single Cylinder Models
A. Air Filter Latch
B. Air Filter Cover
A
B
A
B
A
B
Figure 29. Air Filter Service - Briggs & Stratton
Single Cylinder Models
A. Air Filter Latch
B. Air Filter Cover
C. Air Filter
D. Pre-Cleaner
A
C
D
B
