Idler Pulley Belt Guide
Adjust guide to obtain 1/4 inch(6 mm)from
idler arm (figure 36). Loosen nut (C) to
adjust. Recheck measurement.
Mower Belt Stop Adjustment - 36" Mower
Adjust arbor belt stop (figure 37) to obtain
1/8 inch (3 mm) from belt with PTO
engaged. Loosen nut to adjust. Recheck
measurement. Some models also have belt
stop at left-hand harbor.

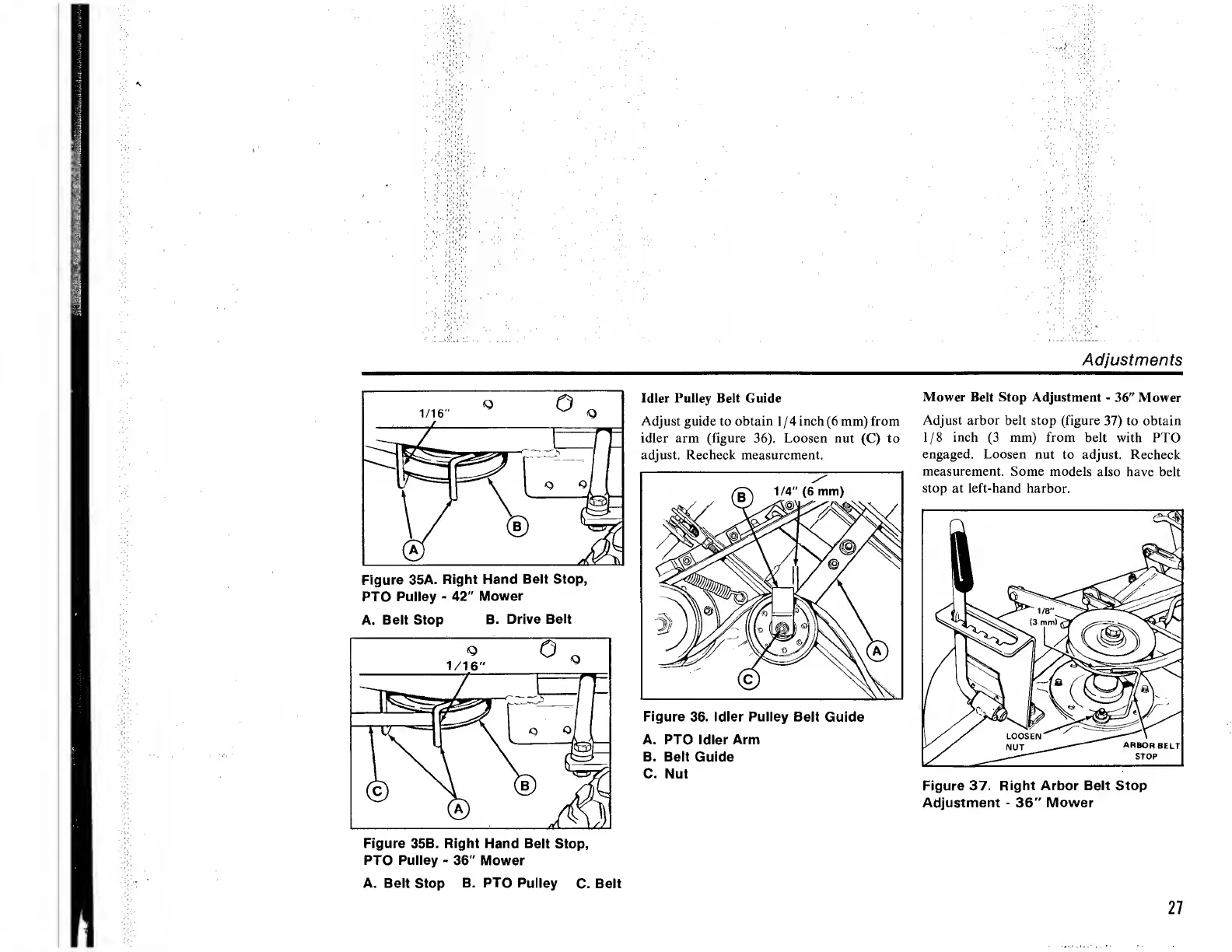

Figure 35A. Right Hand Belt Stop,
PTO Pulley - 42" Mower
A. Belt Stop B. Drive Belt
Figure 36. Idler Pulley Belt Guide
A. PTO Idler Arm
B. Belt Guide
C. Nut
arbor belt
STOP
Figure 37. Right Arbor Belt Stop
Adjustment - 36" Mower
Figure 35B. Right Hand Belt Stop,
PTO Pulley - 36" Mower
A. Belt Stop B. PTO Pulley C. Belt
