MAINTENANCE
SUSPENSION ADJUSTMENT
(SELECT MODELS)
The shock assembly can be adjusted to vary the
amount of pre-load applied to the springs. This
allows the operator to customize the ride according to
operator’s weight and operating conditions.
LESS PRE-LOAD:
• Lightoperatorweight
• Softer,morecushionedride
• Bestforrelativelyflatterrain
MORE PRE-LOAD:
• Heavyoperatorweight
• Stiffer,morerigidride
• Betterhandlingandgreaterstabilityonhillyterrain
TO ADJUST THE SPRING PRE-LOAD:
1. Park machine on a flat, level surface. Disengage
the PTO, stop the engine and engage the parking
brake.
2. See Figure 28. Turn the pre-load adjustment
collar (A) CLOCKWISE to increase the pre-load,
turn COUNTER-CLOCKWISE to decrease the pre-
load. Make sure both front shocks are set to the
same amount of pre-load. Make sure both rear
shocks are set to the same amount of pre-load.
NOTE: After adjusting the front shock assembly,
move the o-ring against the adjustment collar to
prevent the collar from loosening during operation.

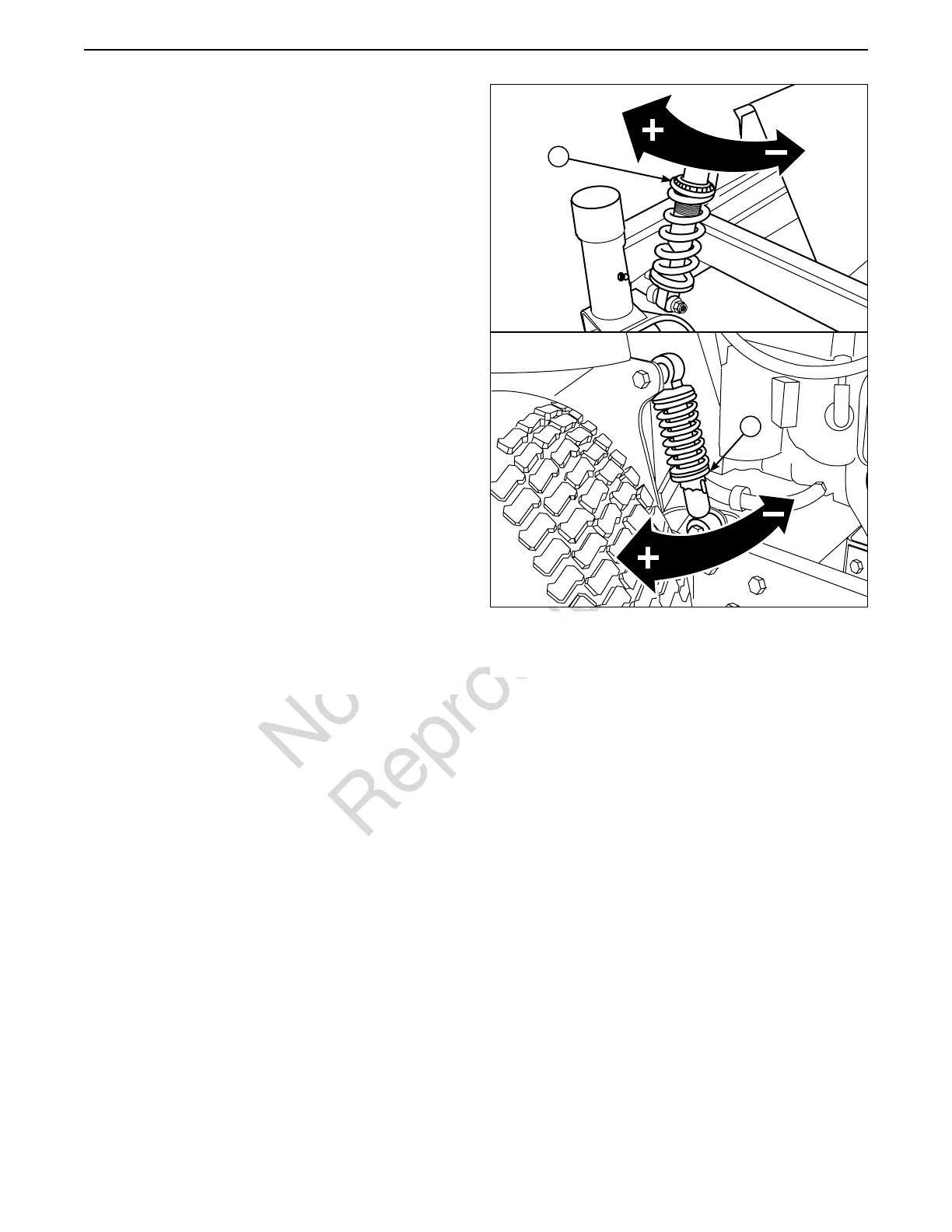

Figure 28. Suspension Adjustment
A. Front Shock Adjustment Collar
B. Rear Shock Adjustment Collar
A
B
