13
Features & Controls

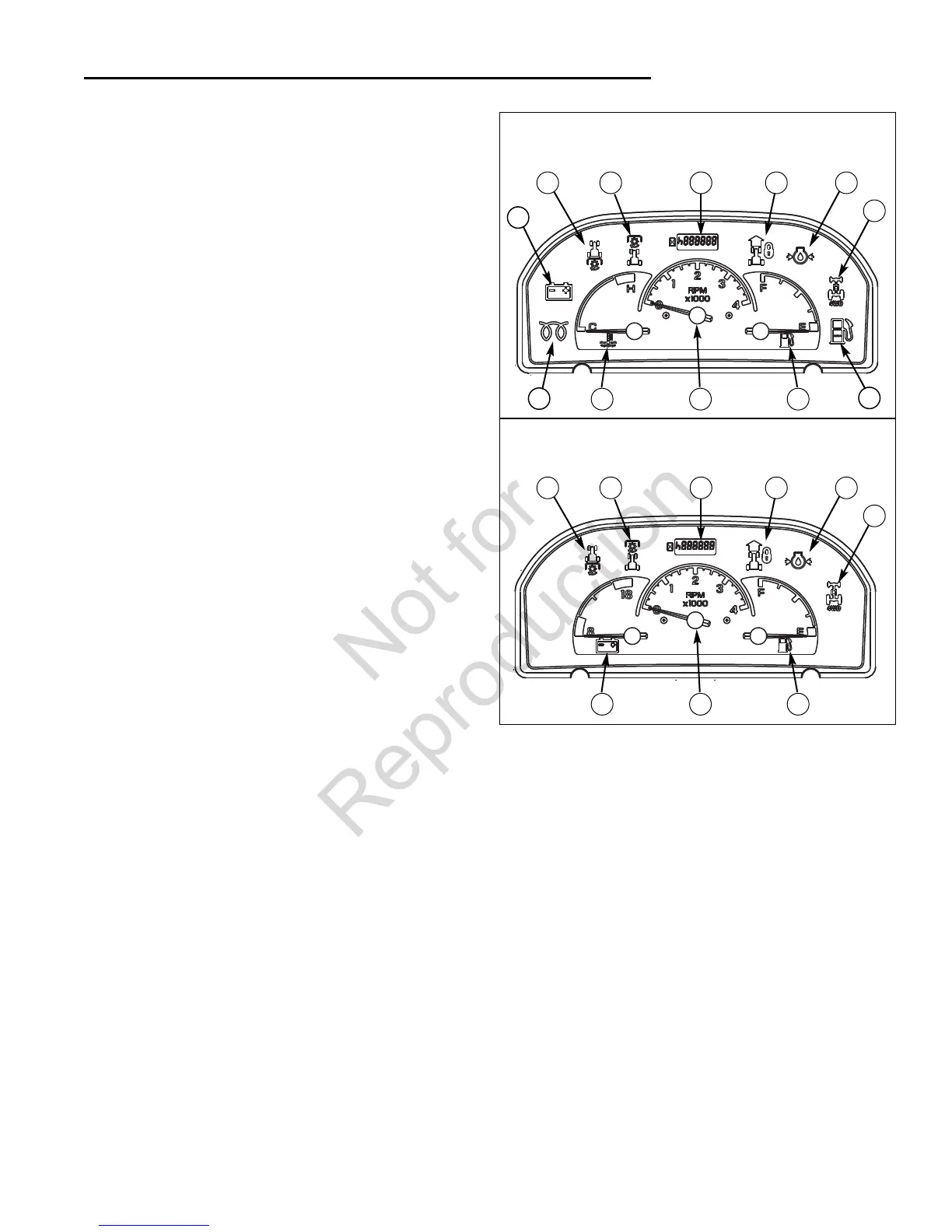

Figure 3. Dashboard Display — Models with air
cooled engines
A. Irregular Voltage
B. Rear PTO Engaged
C. Mid (Front) PTO Engaged
D. Hour Meter
E. Cruise Control Engaged
F. Low Oil Pressure
G. 4 Wheel Drive Engaged (Select Models)
H. Fuel Separator Full (Diesel Models Only)
I. Fuel Gage
J. Tachometer
K. Engine Coolant Temperature
L. Glow Plugs Heating
M. Voltage Meter
Models with Air Cooled Engines
M
B D FE
IJ
C
G
Models with Liquid Cooled Engines
K
B D FE
IJ
C
G
DASHBOARD DISPLAY FUNCTIONS
The dashboard display shows a variety of engine opera-
tion and control status information, as explained in the
descriptions below.
A. Irregular Voltage (Liquid Cooled Models)
Indicates that the voltage being produced by the charg-
ing system and battery is higher or lower than normal
levels.
B. Rear PTO Light
Indicates that the optional rear PTO is engaged.
C. Mid (Front) PTO Light
Indicates that the mid PTO is engaged.
D. Hour Meter/Clock
Displays number of hours the unit has been operated.
E. Cruise Control Light
Indicates that the cruise control is engaged.
F. Low Oil Pressure Light
Indicates that the engine oil pressure is low. If this indi-
cator lights, shut the engine off immediately and contact
your dealer.
G. 4 Wheel Drive Light (4WD Models Only)
Indicates that 4 wheel drive is engaged.
H. Fuel Separator Full Light (Diesel Models)
Indicates that the fuel separator is full and must be emp-
tied.
I. Fuel Gauge
The fuel gauge shows the level of fuel in the fuel tank.
J. Tachometer
Displays the engine RPM. Normal operating speed is
3400 RPM. Do not operate at less than 3000 RPM dur-
ing normal use.
K. Coolant Temperature
(Liquid Cooled Models)
Shows the engine coolant temperature.
L. Glow Plug Light (Diesel Models)
Indicates that the glow plugs are heating. Leave the key
in the run position until the light goes out, then turn the
key to start.
M. Voltmeter
(Models with Air-Cooled Engines)
Shows the voltage being produced by the charging cir-
cuit and battery.
L
A
H
