Troubleshooting, Adjustment, & Service
WARNING
Before checking mower, shut off PTO and engine.
Allow all moving parts to stop. Remove ignition
key, then disconnect the spark plug wires and
fasten them away from the spark plugs.

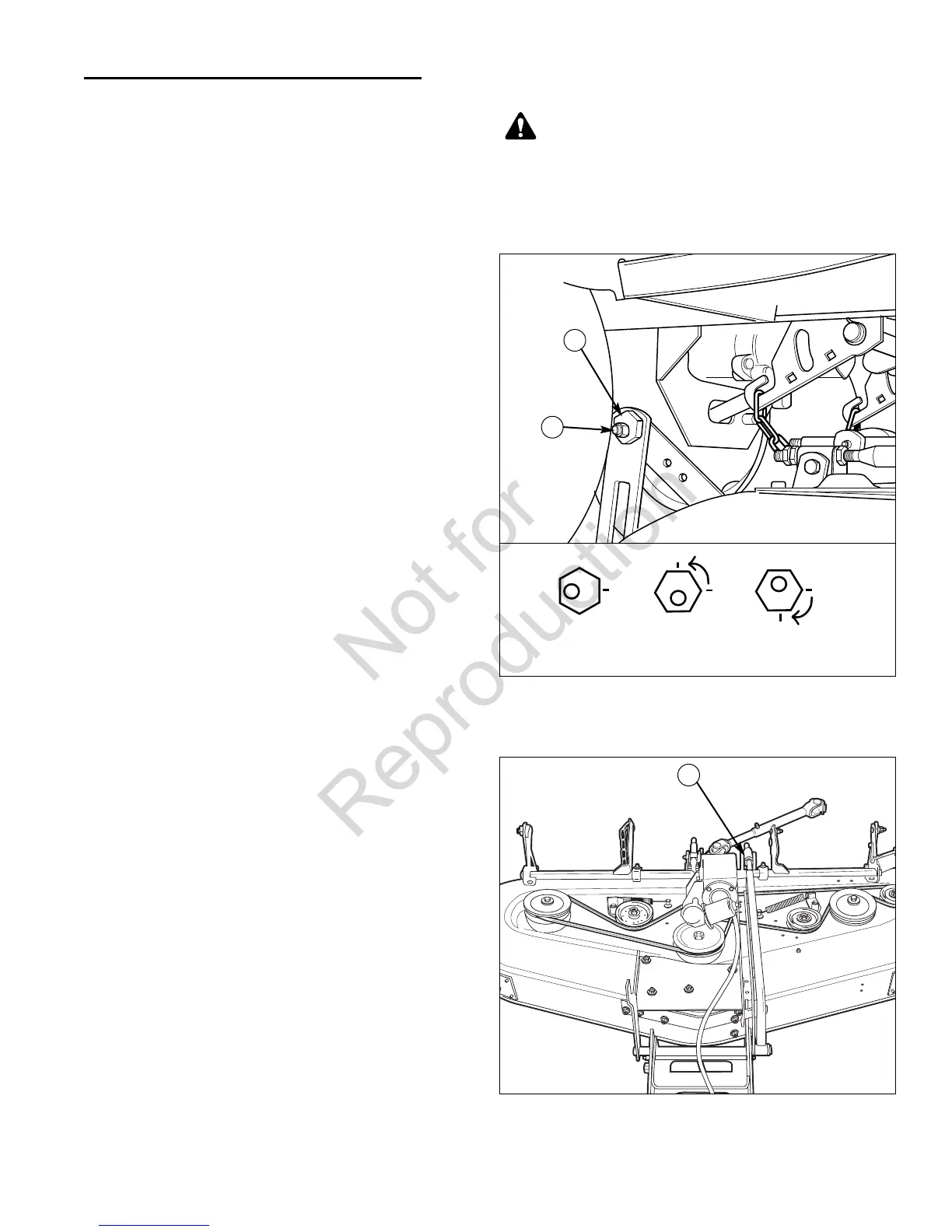

Figure 51. Side-to-Side Adjustment
A. Outside Nut
B. Eccentric Nut
Leveling The Mower
If the cut is uneven, the mower may need leveling.
NOTE: Unequal or improper tire pressure may also
cause an uneven cut.
SIDE TO SIDE LEVELING
1. With the mower installed, place the tractor on a
smooth, level surface such as a concrete floor. Turn
the front wheels straight forward.
2. Place the cutting height adjust in high-cut position.
3. Set the parking brake, turn off the ignition, and
remove the key.
4. Check for bent blades and replace if necessary.
5. Arrange the mower blades so that they are pointing
from side-to-side.
6. Measure the distance between the outside tips of
each blade and the ground. If there is more than 1/8"
(3mm) difference between the measurements on
each side, proceed to step 7. If the difference is 1/8"
(3mm) or less, proceed to Front To Back Leveling.
7. See Figure 51. Loosen the outside nut (A) then turn
the eccentric nut (B) to raise or lower the left side of
the deck. Repeat on the right side of the deck. When
the mower deck is level, hold the eccentric nut while
tightening the outside nut.
FRONT TO BACK LEVELING
1. Arrange the blades so they face front-to-back.
2. Measure the distance from the ground to the front of
the front blade and from the rear tips of the rear
blades. Front tips should be 1/8” to 1/4” higher than
the rear tips. If not, proceed to step 3.
3. Loosen the rear jam nut (A) on the arm assembly
(see Figure 52). Adjust the jam nut on the arm until
the mower deck is level or the front is 1/8” to 1/4”
higher.
Figure 52. Front to Back Leveling
A. Jam Nuts
