Maintenance and Care

Replacing the agitator belt

Models: SYME, SYMENT, SYMST, SYM,

SYMUSA, SYMCLNT, SYMCL,

SYMS, SYMD, SYMCNT & SYMC

NOTE: To ensure maximum cleaning efficiency,

the condition of the belt should be checked

regularly. If belt is stretched, cracked or if

excessive slipping is occurring, replace the

belt.

• Disconnect the vacuum cleaner from the

electrical outlet.

• Turn the unit over and remove the bottom

plate (See "Removing and reinstalling bottom

plate").

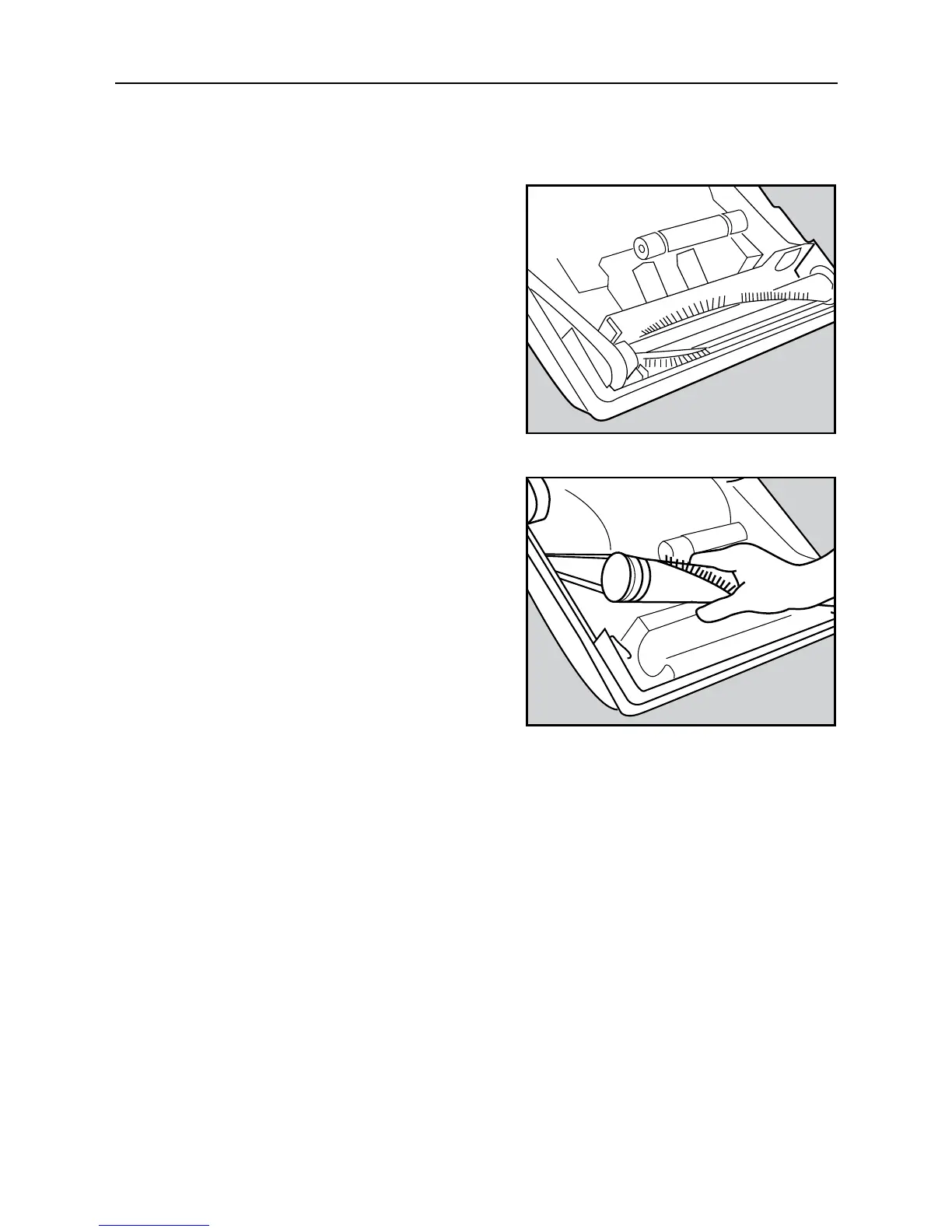

• Remove agitator and worn or broken belt.

• Loop the new belt around the motor drive

shaft and the agitator pulley.

• Reinstall the agitator into the housing while

making sure that the positioning fork faces

down and straddles the support guide.

• Rotate agitator pulley, making sure that the

belt is not twisted.

• Reinsert the vented support fitting. Reinstall

bottom plate (See “Removing and reinstalling

bottom plate”).
