Singer HA-1 User Manual

-9-
TO START SEWING
TO REMOVE THE WORK

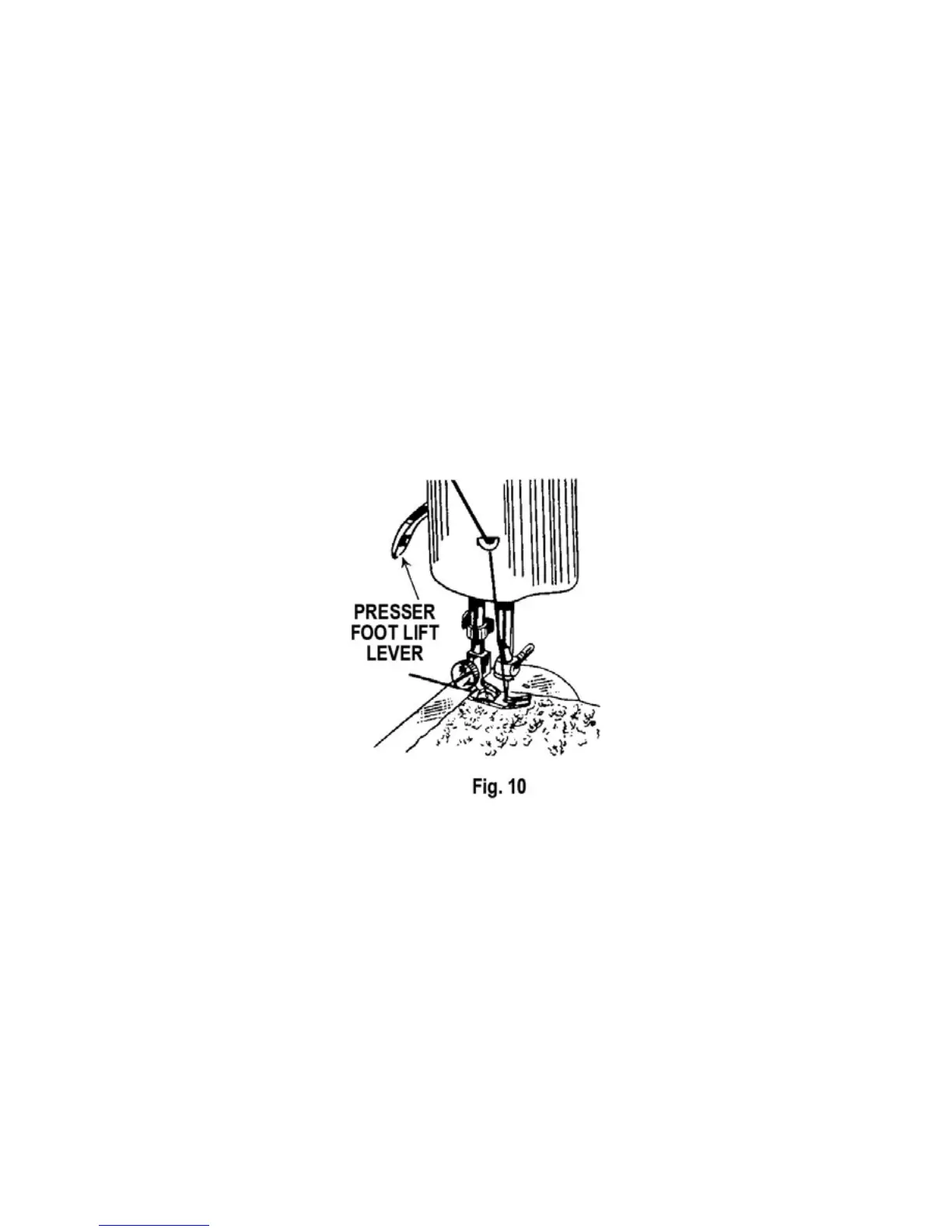

With the needle raised and the threads drawn back at least 4
inches through the toes of the presser foot, place the material
to be sewn beneath the presser foot and lower the presser
foot lift lever. Turn the hand wheel toward you until the nee-
dle enters the material. Regulate the desired stitch length
(Fig. 12) and start sewing.
Do not try to help the feeding of the material by pulling by
hand, as this may bend or break the needle. Gently guide the
material as it feeds in the direction you want to sew.
Stop the machine by releasing the pressure on the foot or
knee control and stopping the hand wheel with your right
hand. If you are stopping to turn a corner, stop with the nee-
dle just entering the material. If you are going to remove the
material, stop with the needle and take up lever at their high-
est positions. Then, raise the presser foot lift lever, draw the
material to the back about 6-8 inches, and cut the thread.

Singer HA-1 Specifications

General

Brand	Singer
Model	HA-1
Category	Sewing Machine
Language	English

Summary

Replacing the Needle

Needle Replacement Procedure

Instructions for removing the old needle and inserting a new one, ensuring correct orientation.

Bobbin Case Operations

Important Needle Position Reminder

Important reminder to always keep the needle above the machine surface during operations.

Removing the Bobbin Case

Step-by-step guide on how to safely remove the bobbin case from the machine.

Inserting the Bobbin Case

Instructions for correctly reinserting the bobbin case, noting latch grip and notch alignment.

Winding the Bobbin

Bobbin Winding Procedure

Detailed steps for winding a bobbin, including using the stop motion knob and thread path.

Threading the Bobbin Case

Bobbin Case Threading Setup

Instructions for holding the bobbin case and positioning the thread for threading.

Bobbin Case Threading Process

Guides threading the bobbin case, ensuring the thread snaps into the delivery eye correctly.

Upper Threading Procedure

Step 1: Place Thread Spool

Step 1: Placing the spool of thread on the spool pin.

Step 2: Thread Guide

Step 2: Leading the thread through the thread guide.

Step 3: Thread Tension Disks

Step 3: Running the thread through the tension disks.

Step 4: Guide Bar and Check Spring

Step 4: Threading over the guide bar and through the check spring.

Step 5: Take-Up Lever

Step 5: Bringing the thread through the take-up lever.

Step 6: Thread Guides

Step 6: Running the thread through the guides.

Step 7: Thread the Needle

Preparing for Sewing

Bringing Up Bobbin Thread

Bobbin Thread Emergence

Final Thread Positioning

Starting and Stopping Sewing

Initiating Sewing

Removing Sewn Work

Stitch Length Regulation

Stitch Length Adjustment Guide

Setting Stitch Length

Oiling the Sewing Machine

Lubrication Points and Procedure

Oil Type Recommendation
