Note
■
We recommend always carrying replacement fuses in the vehicle.
■
There can be several power consuming devices for one fuse. Multiple fuses
may exist for a single power consuming device.

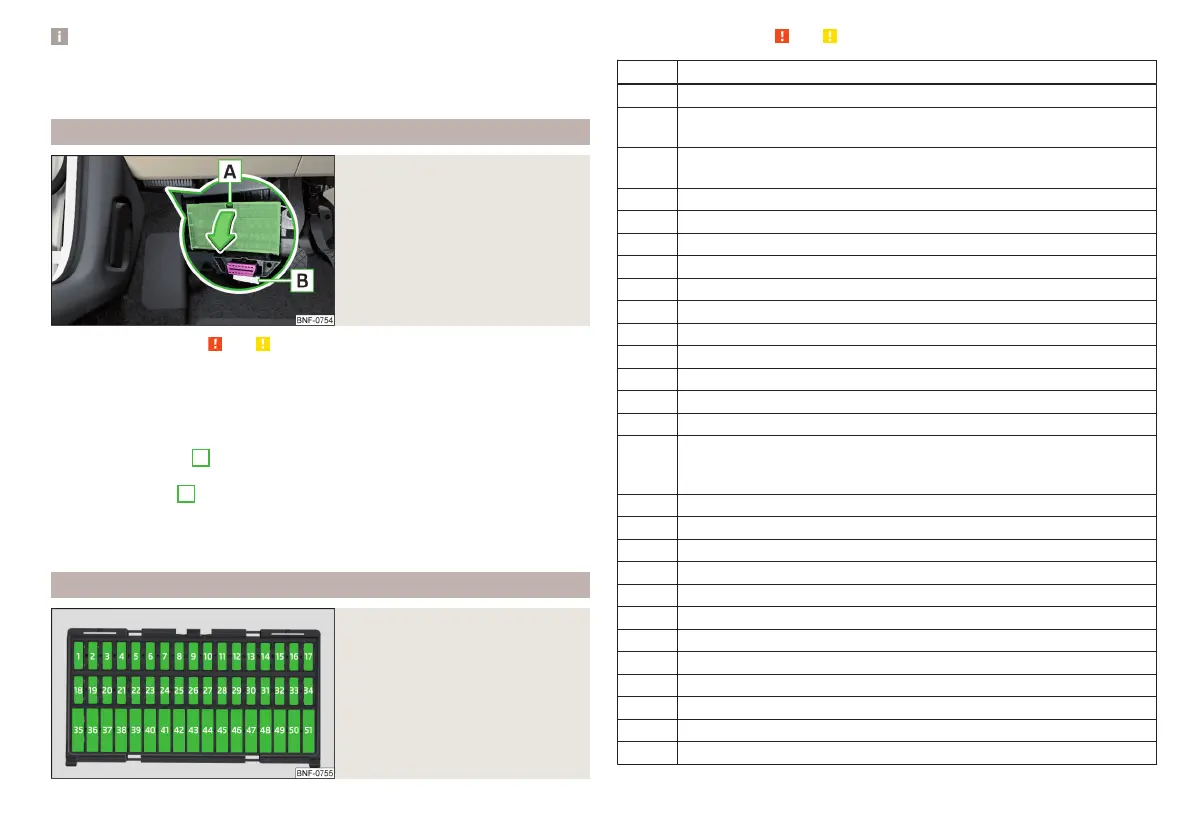

Fuses in the dash panel
Fig. 165
Remove the fuse box cover.
Read and observe and on page 144 first.
The fuses are located underneath the steering wheel on the underside of the
dash panel » Fig. 165.
Replacing fuses
›
Remove the ignition key, turn off the lights and all electrical consumers.
›
Press securing tab
A
» Fig. 165.
›
Push the lid in the direction of the arrow.
›
Remove bracket
B
.
›
Use the clip to pull the fuse out, then insert a new fuse.
›
Replace the bracket at the original position.
›
Close the cover in the opposite direction to the arrow until it clicks into place.
Fuse arrangement in the dash panel
Fig. 166
Fuses
Read and observe and on page 144 first.
No. Consumer
1 Air Conditioning, diagnostic connector
2
Operating the headlight range control, parking aid, adjusting the mir-
ror surface with electric exterior mirrors
3
Automatic transmission, engine control unit, power steering, control
lever under the steering wheel, instrument cluster
4 Airbag
5 Reversing light
6 Rear wiper, front and rear window washer
7 Main beam headlamp - left side
8 Main beam headlamp - right side
9 Not assigned
10 Electric exterior mirror heater, diagnostic port
11 Not assigned
12 Vehicle lighting
13 Vehicle lighting
14 Vehicle lighting
15
Vehicle with START-STOPsystem: Radio
Vehicle without START-STOPsystem: Lighting of switches, heating,
automatic transmission, light switch, license plate light
16 Vehicle lighting
17 Rear window wiper
18 Panoramic roof
19 Central locking system
20 Rear window heating
21 Reversing light
22 Horn
23 Voltage stabiliser (for START-STOP system)
24 Headlamp flasher
25 Windscreen wipers
26 Radio
27 Turn signal lights, brake lights
145
Fuses and light bulbs
