NOTICE
The information contained in this document is subject to change without notice.
SLOAN VALVE COMPANY • 10500 Seymour Avenue • Franklin Park, IL 60131
Phone: 1-800-9-VALVE-9 or 1-847-671-4300 • Fax: 1-800-447-8329 or 1-847-671-4380
http://www.sloanvalve.com
Printed in U.S.A. 06-00
Copyright © 2000 Sloan Valve Company
1A
2
4A
7
3
5B
6
5A
9A

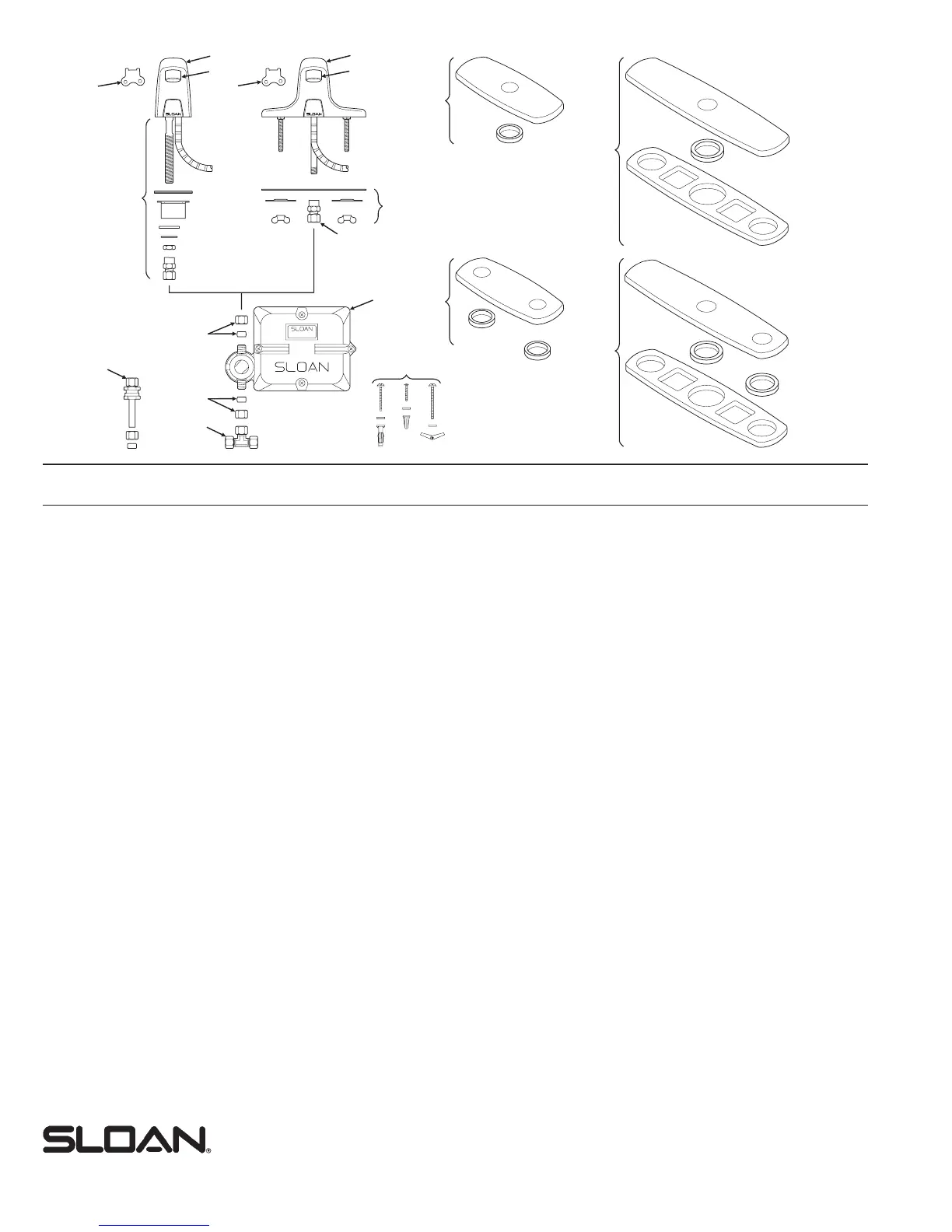

PARTS LIST
3
1B
2
4B
5C
5C
8
9B
9C
9E
9D
9F
Item Part Description
No. No.
1A EBF-120-A Pedestal Faucet Spout and Sensor Assembly (EBF-615)
1B EBF-81-A Faucet Spout and Sensor Assembly (EBF-650)
2 ETF-1023-A 0.5 gpm (1.9 Lpm) Spray Head with Key (male thread)
ETF-1024-A 2.2 gpm (8.3 Lpm) Aerator Spray Head with Key (male thread)
F-175-L 2.2 gpm (8.3 Lpm) Laminar Flow Spray Head (male thread)
3 ETF-435 Replacement Key Only for ETF-1023-A 0.5 gpm (1.9 Lpm) Spray Head and ETF-1024-A 2.2 gpm (8.3 Lpm) Aerator Spray Head
(NOT required for F-175-L 2.2 gpm/8.3 Lpm Laminar Flow Spray Head)
4A EBF-123-A Faucet Mounting Kit for EBF-615 includes 3/8¨ RB Water Supply Tube, Base Gasket, Spacer, Washer, 9/16¨ Lockwasher, 1/4¨ NPSM Hex Nut,
and ETF-547 Compression Fitting Connector
4B ETF-546-A Faucet Mounting Kit for EBF-650 includes Base Gasket, two (2) Slotted Mounting Washers, two (2) Wing Nuts, and ETF-547 Compression
Fitting Connector
5A ETF-547 1/8¨ NPT Pipe to 3/8¨ Tube Compression Fitting Connector (female)
5B ETF-259 3/8" Tee Compression Fitting
5C EBF-113-A Single Solenoid Supply Kit includes two (2) Compression Nuts, two (2) Compression Sleeves, and Screwdriver (Not shown)
6 EBF-60-A Control Module Assembly includes Base Enclosure, Cover Enclosure, two (2) Gaskets, Solenoid Body, Solenoid Enclosure, Solenoid Filter
Plug and Battery Stop
7 EBF-79-A Mounting Hardware Kit for Control Module Assembly includes four (4) Anchor Nuts, four (4) Toggle Nuts, four (4) Mounting Screws for Base
Plate, four (4) Flat Washers, four (4) Anchors, and four (4) Metal Screws
8 ETF-470-A Back Check
9A ETF-103-A 4" (102 mm) Centerset Single-hole Trim Plate Kit for EBF-615 Faucet (Faucet only)
9B MIX-102-A 4" (102 mm) Centerset Double-hole Trim Plate Kit for EBF-615 Faucet with Optional Mixing Valve
9C ETF-105-A 8" (204 mm) Centerset Single-hole Trim Plate Kit for EBF-615 Faucet (Faucet only)
9D MIX-102-A 8" (204 mm) Centerset Double-hole Trim Plate Kit for EBF-615 Faucet with Optional Mixing Valve
9E ETF-576-A 8" (204 mm) Centerset Single-hole Trim Plate Kit for EBF-650 Faucet (Faucet only)
9F ETF-577-A 8" (204 mm) Centerset Double-hole Trim Plate Kit for EBF-650 Faucet with Optional Mixing Valve
— EBF-80-A Sensor Replacement Kit includes Cable Assembly, Retainer for PC Board Assembly, and Housing for Sensor Window
— EBF-62-A Solenoid Replacement Kit includes Solenoid Body, Solenoid Enclosure, and Solenoid Filter Plug
— EBF-1004-A Solenoid Filter Replacement Kit includes Filter Screen Assembly and O-Ring
— EBF-1006-A Repair Kit for EBF-60-A Control Module Assembly includes EBF-61-A Battery Holder Assembly and EBF-159 Battery Gasket
— EBF-50 Control Module Replacement Gasket (two required)
— EBF-1007-A Faucet Cable Assembly Repair Kit for EBF-650 includes Sensor Window Housing Assembly and Bracket for Sensor Window
