Step 5 — Connect Supply Line From Solenoid Valve Outlet
to Faucet (Figures 5A and 5B)
Note: An arrow on the body of the Solenoid Valve indicates the water flow
direction.
Important: Keep thread sealant out of your waterway and prevent component
part damage! Do not use sealant on compression fittings. When thread sealant
is used, do not apply it to the first two “starter” threads.
For Model 615 — Install the 1/4 inch Pipe to 3/8 inch Tube Compression Fitting
onto the Spout’s Pipe Nipple (refer to Figure 5A).
For Model 650 — Install the 1/8 inch Pipe to 3/8 inch Tube Compression Fitting
onto the Spout’s Pipe Nipple (refer to Figure 5B).
For Models 615 and 650 — Connect 3/8 inch O.D. supply tube (furnished by
installer) between the Compression Fitting on the Spout’s Pipe Nipple and the
top outlet Compression Fitting on the Solenoid Valve.
Step 6 — Connect Supply Line(s) From Supply Stop to
Solenoid Valve Inlet (Refer to Figures A and B)
Note: Supply Stops should be furnished by installer.
Flush dirt, debris, and sediment from the supply line(s).
FOR DUAL LINE HOT AND COLD WATER SUPPLY APPLICATIONS
When connecting the Faucet to a hot and cold water supply, two Back Checks
are required as described in Step 1. If Back Checks are not installed at this time,
install them now referring back to Step 1 for instructions.
Install a 3/8 inch copper Supply Tube between each Back Check and the
Compression Tee Fitting supplied (refer to Figure A or B).
Install a 3/8 inch copper Supply Tube between Compression Tee Fitting and the
bottom inlet Compression Fitting of Solenoid Valve.
FOR SINGLE LINE WATER SUPPLY APPLICATIONS
When connecting the Faucet to a single line water supply or a pre-tempered
water supply, no Back Check is required.
Install a 3/8" copper Supply Tube between the Supply Stop and the bottom inlet
Compression Fitting of Solenoid Valve. (Refer to Figure A or B.)
Step 7 — Install Batteries (Figure 6)
Remove the Battery Compartment from the Control Module by gently pulling
straight out. Spread the ends of the Battery Retainer and remove it from the
Battery Compartment. Insert the four (4) “C” Cell Alkaline Batteries provided as
indicatedby the (+) and(-) symbols inside the BatteryCompartment. Spread the
ends of the Battery Retainer and slide it over the Battery Compartment until
locked into place. Note: Battery Retainer must be installed as shown in Figure
6. If installed up-side-down,it willnot install into the ControlModule. Reinsert the
Battery Compartment into the Control Module as shown in Figure 6.
IMPORTANT NOTES
DO NOT INSTALL THE BATTERIES UNTIL THE FAUCET IS COMPLETELY INSTALLED. If the batteries are installed before the sensor
cable has been connected to the control module, the faucet will not properly set the sensing range for the sink on which it has been installed.
CONTROL
MODULE
STRAIN
RELIEF
SLOT
SENSOR
CABLE
(TO SPOUT)
CIRCUIT
BOARD
COVER

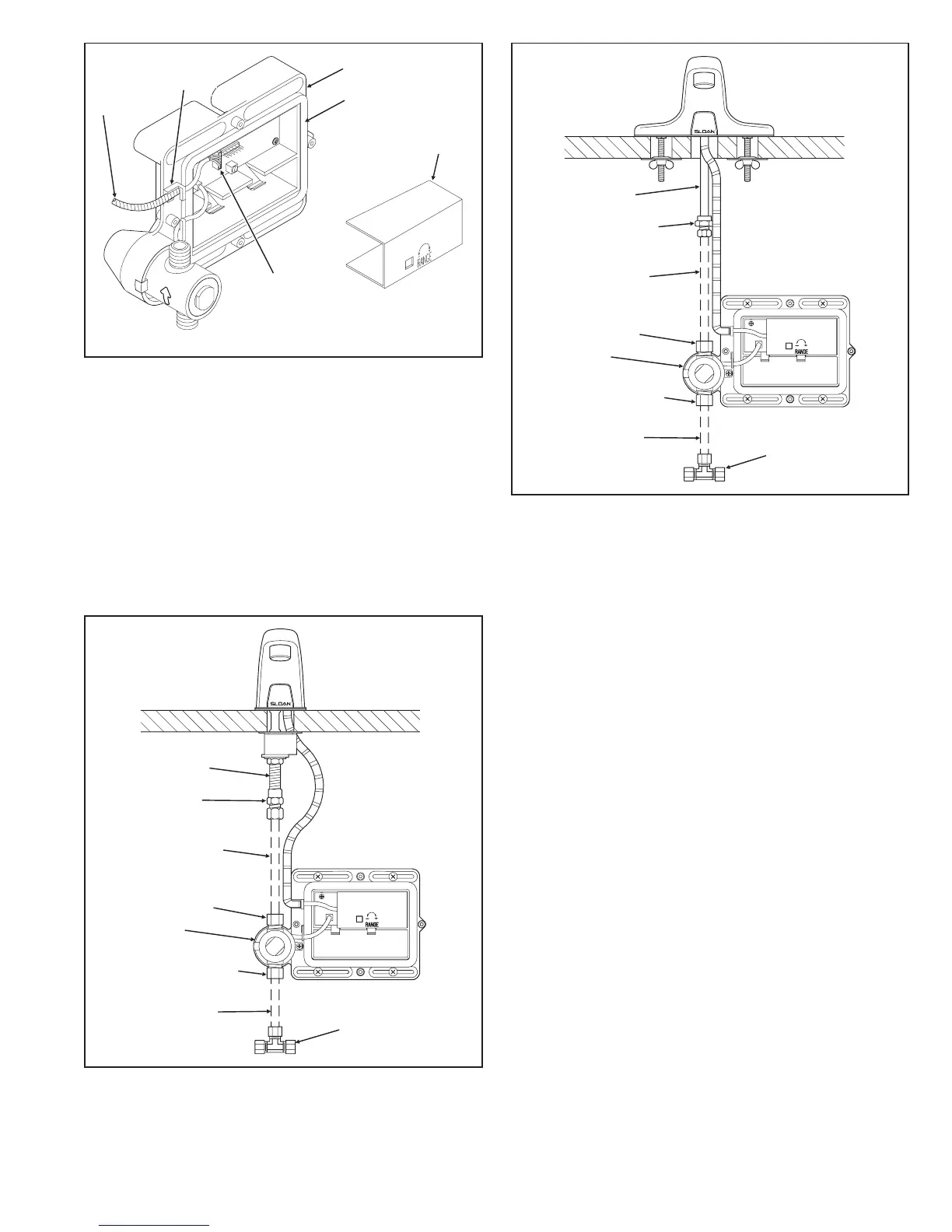

Figure 4
PLUG IN THE LOCKING
CONNECTOR FROM SENSOR
INTO RECEPTACLE
GASKET
1/8" PIPE TO 3/8"
TUBE COMPRESSION
FITTING
1/8" PIPE NIPPLE
3/8" SUPPLY TUBE
(NOT SUPPLIED)
Figure 5B
SOLENOID
VALVE
3/8" TEE COMPRESSION
FITTING (FOR APPLICATIONS
USING TWO CHECK VALVES)
3/8" SUPPLY TUBE
(NOT SUPPLIED)
3/8" SOLENOID VALVE
COMPRESSION FITTING
(TOP OUTLET)
3/8" SOLENOID VALVE
COMPRESSION FITTING
(BOTTOM INLET)
1/4" NPT PIPE
TO 3/8’’ TUBE
COMPRESSION
FITTING
1/4" PIPE NIPPLE
3/8" SUPPLY TUBE
(NOT SUPPLIED)
Figure 5A
SOLENOID
VALVE
3/8" TEE COMPRESSION
FITTING (FOR APPLICATIONS
USING TWO CHECK VALVES)
3/8" SUPPLY TUBE
(NOT SUPPLIED)
3/8" SOLENOID VALVE
COMPRESSION FITTING
(TOP OUTLET)
3/8" SOLENOID VALVE
COMPRESSION FITTING
(BOTTOM INLET)
