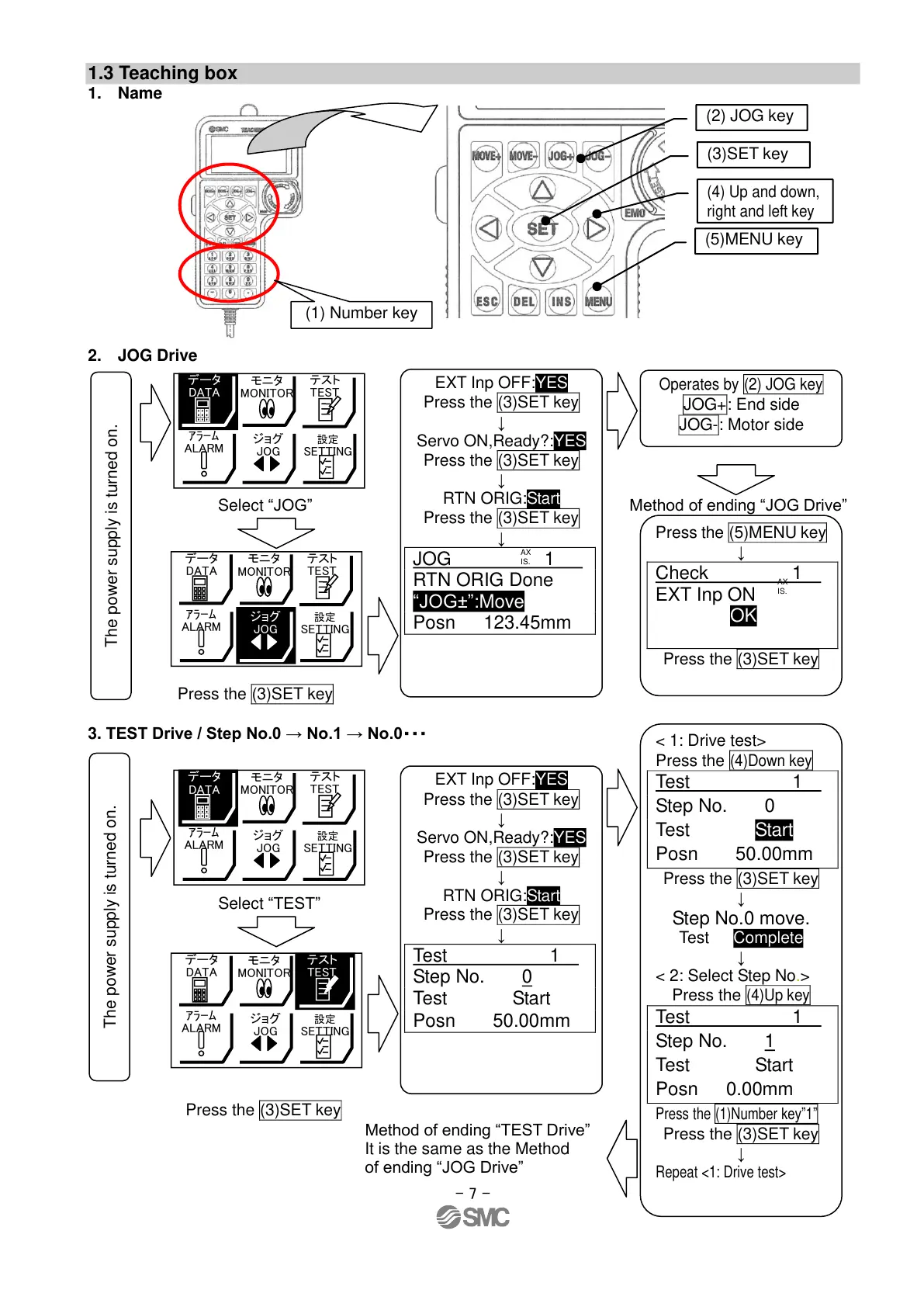

1.3 Teaching box
1. Name
2. JOG Drive
Select “JOG” Method of ending “JOG Drive”
Press the (3)SET key
3. TEST Drive / Step No.0 → No.1 → No.0・・・
Select “TEST”
Press the (3)SET key
Method of ending “TEST Drive”
It is the same as the Method
of ending “JOG Drive”
(1) Number key
(4) Up and down,
right and left key
(3)SET key
(2) JOG key
(5)MENU key
ｱﾗｰﾑ
ALARM
ジョグ
JOG
設定
SETTING
テスト
TEST
モニタ
MONITOR
データ
DATA
ｱﾗｰﾑ
ALARM
ジョグ
JOG
設定
SETTING
テスト
TEST
モニタ
MONITOR
データ
DATA
The power supply is turned on.
EXT Inp OFF:YES
Press the (3)SET key
↓
Servo ON,Ready?:YES
Press the (3)SET key
↓
RTN ORIG:Start
Press the (3)SET key
↓
JOG 1
RTN ORIG Done
“JOG±”:Move
Posn 123.45mm
Operates by (2) JOG key
JOG+: End side
JOG-: Motor side
Press the (5)MENU key
↓
Check 1
EXT Inp ON
OK
Press the (3)SET key
< 1: Drive test>
Press the (4)Down key
Test 1
Step No. 0
Test Start
Posn 50.00mm
Press the (3)SET key
↓
Step No.0 move.
Test Complete
↓
< 2: Select Step No.>
Press the (4)Up key
Test 1
Step No. 1
Test Start
Posn 0.00mm
Press the (1)Number key”1”
Press the (3)SET key
↓
Repeat <1: Drive test>
AX
IS.
AX
IS.
The power supply is turned on.
ｱﾗｰﾑ
ALARM
ジョグ
JOG
設定
SETTING
テスト
TEST
モニタ
MONITOR
データ
DATA
ｱﾗｰﾑ
ALARM
ジョグ
JOG
設定
SETTING
テスト
TEST
モニタ
MONITOR
データ
DATA
EXT Inp OFF:YES
Press the (3)SET key
↓
Servo ON,Ready?:YES
Press the (3)SET key
↓
RTN ORIG:Start
Press the (3)SET key
↓
Test 1
Step No. 0
Test Start
Posn 50.00mm
