SMC Networks PF2W7 Series User Manual

-19-
No.PF※※-OMO0012-D

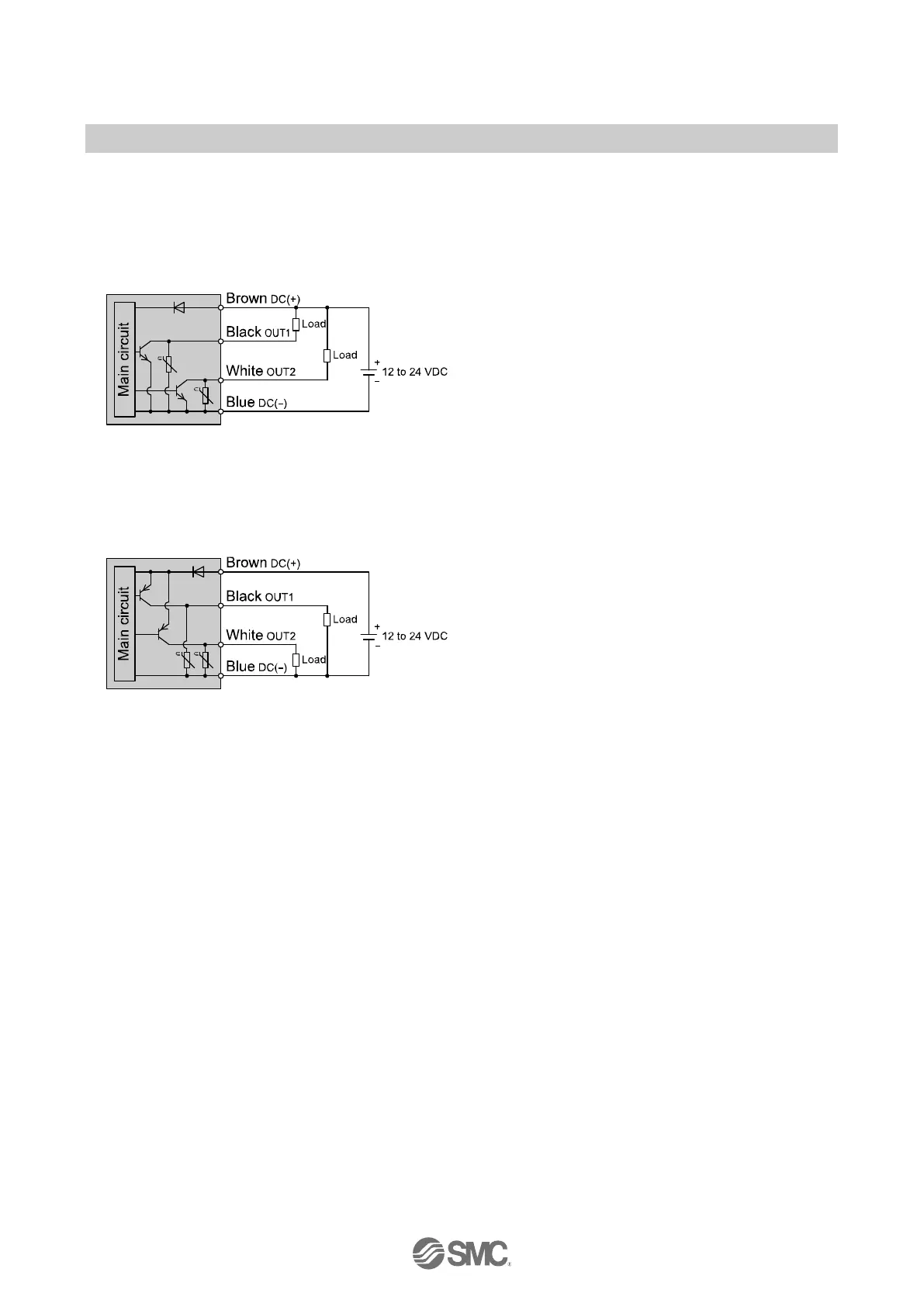

●Internal circuit and wiring example
When the lead wire with connector designated for the PF2W7 is used, the wire colours will apply as shown
in the diagram.
NPN (2 outputs) type
PF2W7--27-
Max. 30 V, 80 mA
Internal voltage drop: 1 V or less
PNP (2 outputs) type
PF2W7--67-
Max. 80 mA
Internal voltage drop: 1.5 V or less
