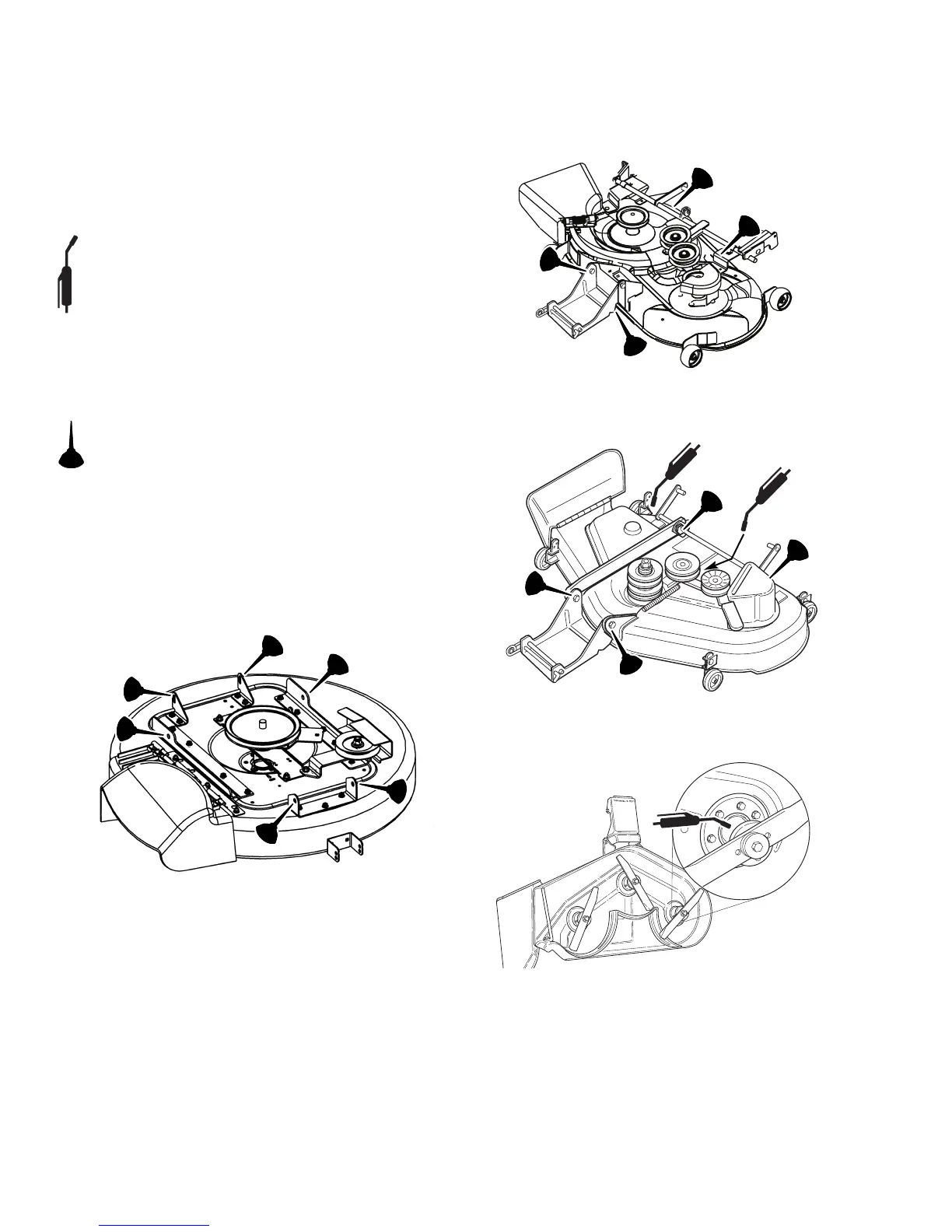

Figure 20. Arbor Lubrication
(3-Blade Model Shown, All Models Similar)
Figure 18. Mower Lubrication - 42” Deck
LUBRICATION
Service Interval: 25 hours.
Lubricate the unit at the locations shown in Figures 17
through 23 as well as the following lubrication points.
Grease:
• front wheel grease fittings
• front wheel bushings
• mower pivots
• mower arbors
Use grease fittings when present.
Not all greases are compatible. Use automotive-type
lithium grease.
Oil:
• hydro linkage
• brake linkage
• mower deck height adjustment linkage
• ground speed control linkage
Generally, all moving metal parts should be oiled where
contact is made with other parts. Keep oil and grease off
belts and pulleys. Remember to wipe fittings and
surfaces clean both before and after lubrication.
Figure 17. Mower Lubrication - 33” Deck
Figure 19. Mower Lubrication - 50” Deck
