− 4 (EN) −
Ver. 001

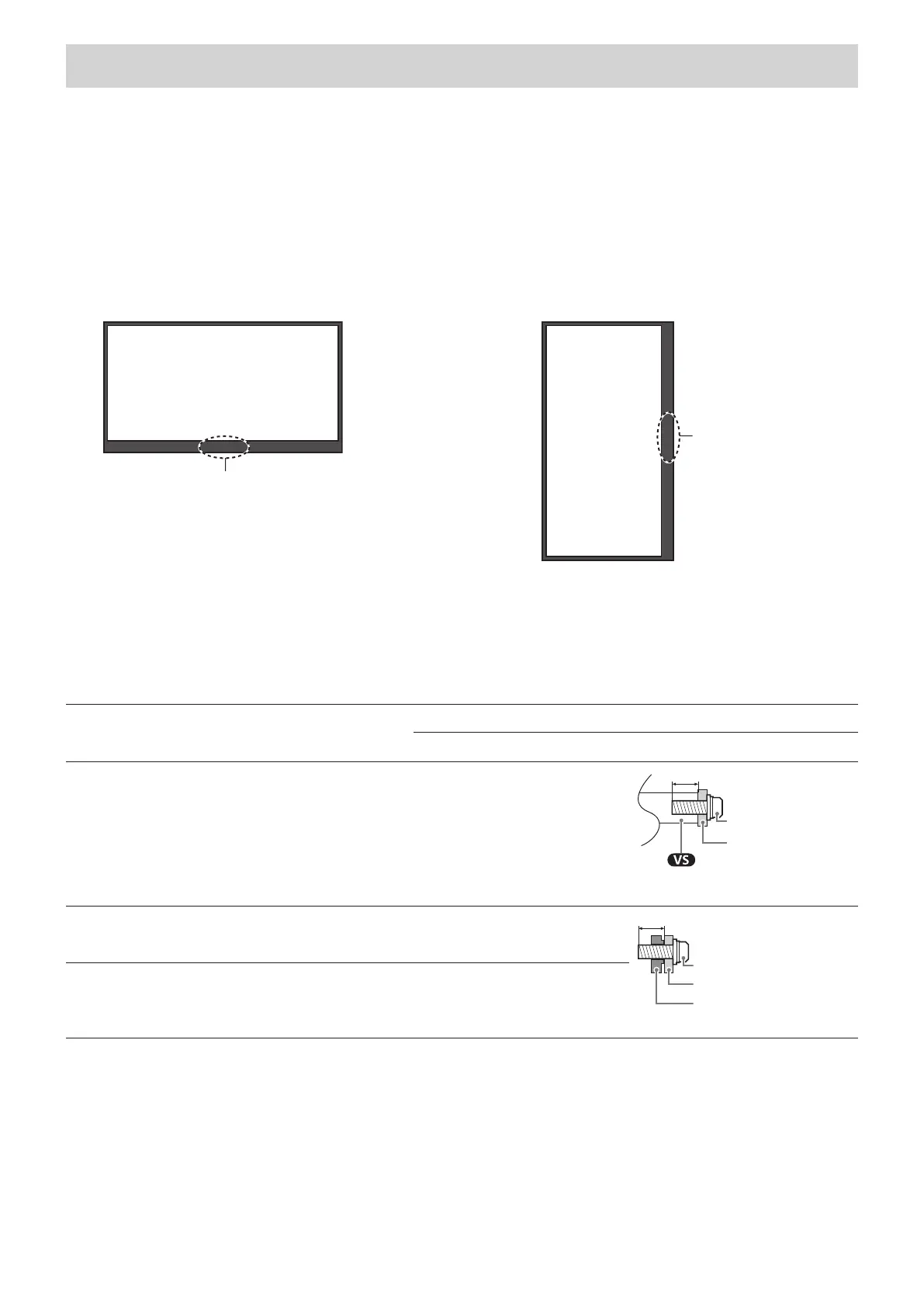

Installation
Observe the following standards when installing:
•When carrying the LCD Display or LCD Monitor, hold it horizontally as there is a risk of the LCD Display or
LCD Monitor falling when you hold it vertically. Be careful not to apply excessive force to the LCD Display
or LCD Monitor, as it may cause deformation.
•We recommend regular checks and maintenance to ensure that there is no problem after installation.
•When installing vertically, rotate the LCD Display or LCD Monitor 90 degrees counterclockwise from the
horizontal position. Do not rotate the LCD Display or LCD Monitor clockwise to install it.
Horizontal installation
LED
Vertical installation
LED
•When using mounting brackets during installation, the length of the screws to attach to the LCD Display
or LCD Monitor depends on the thickness of the mounting brackets. See the following for details.
•For details on the installation angles, refer to “Wall mount unit mounting method” for each of the LCD
Displays or LCD Monitors (attached sheet) and the manual supplied with the mounting brackets.
Model name
Screw size
FW-85BZ40H / 75BZ40H / 65BZ40H /
55BZ40H / 50BZ35J / 43BZ35J / 75BZ30J /
65BZ30J / 55BZ30J / 50BZ30J / 43BZ30J /
85BU40H / 75BU40H / 65BU40H / 55BU40H /
50BU35J / 43BU35J / 75BU30J / 65BU30J /
55BU30J / 50BU30J / 43BU30J
M6 10 mm - 12 mm
(
13
/
32
in -
1
/
2
in)
Screw
Wall-mount unit
Wall-mount attachment
FW-100BZ40J / 100BU40J M8 12 mm - 30 mm
(
1
/
2
in - 1
3
/
16
in)
Screw
Wall-mount unit
Cover for the back of the
LCD Display or LCD Monitor
FW-32BZ30J / 32BU30J M6 10 mm - 12 mm
(
13
/
32
in -
1
/
2
in)
To Next Page
