17
GB
Additional Information

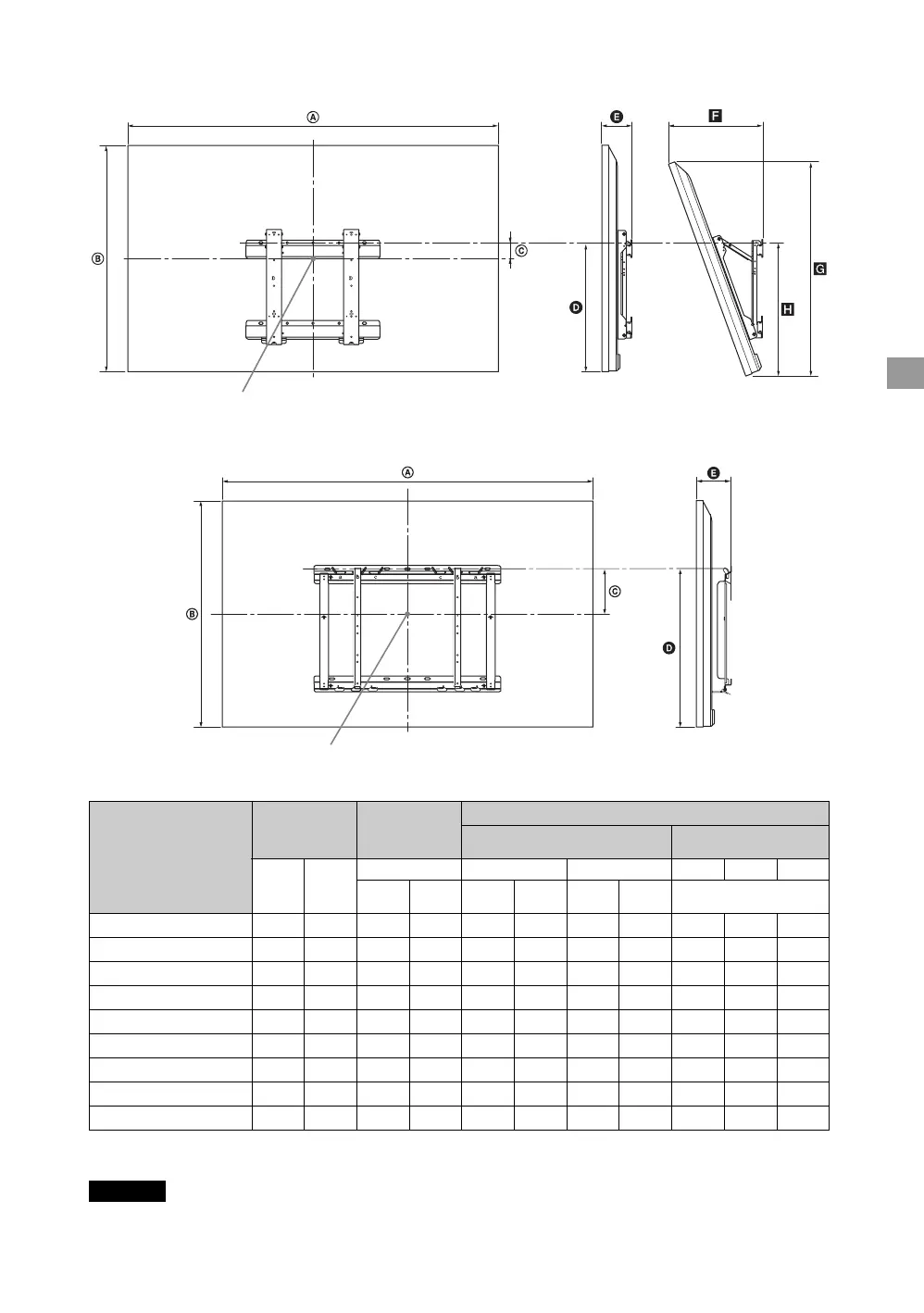

TV installation dimensions table
SU-WL500
SU-WL50B
Unit: mm
Figures in the above table may differ slightly depending on the installation.
The wall that the TV will be installed on should be capable of supporting a weight of at least four times that of
the TV. Refer to “Specifications” (page 13) for its weight.
Model Name
KDL-
Display
dimensions
Screen
centre
dimension
Length for each mounting angle
Angle (0°) Angle (20°)
AB
C DEFGH
SU-
WL500
SU-
WL50B
SU-
WL500
SU-
WL50B
SU-
WL500
SU-
WL50B
SU-WL500 only
60NX815/60NX810
1,400 836 53 – 482 – 93 – 342 785 496
60NX800
1,440 889 31 59 490 518 121 122 384 842 514
55NX815/55NX810
1,276 770 86 – 482 – 92 – 318 723 495
52NX800
1,261 787 – 110 – 518 – 116 – – –
46NX710
1,083 660 141 169 482 510 91 92 280 620 495
46NX700
1,127 716 – 149 – 524 – 116 – – –
40NX800
994 635 – 169 – 518 – 116 – – –
40NX710
944 582 178 206 482 510 91 92 252 547 495
40NX700
994 641 – 169 – 524 – 116 – – –
Screen centre point
Screen centre point
WARNING
(Continued)
To Next Page
