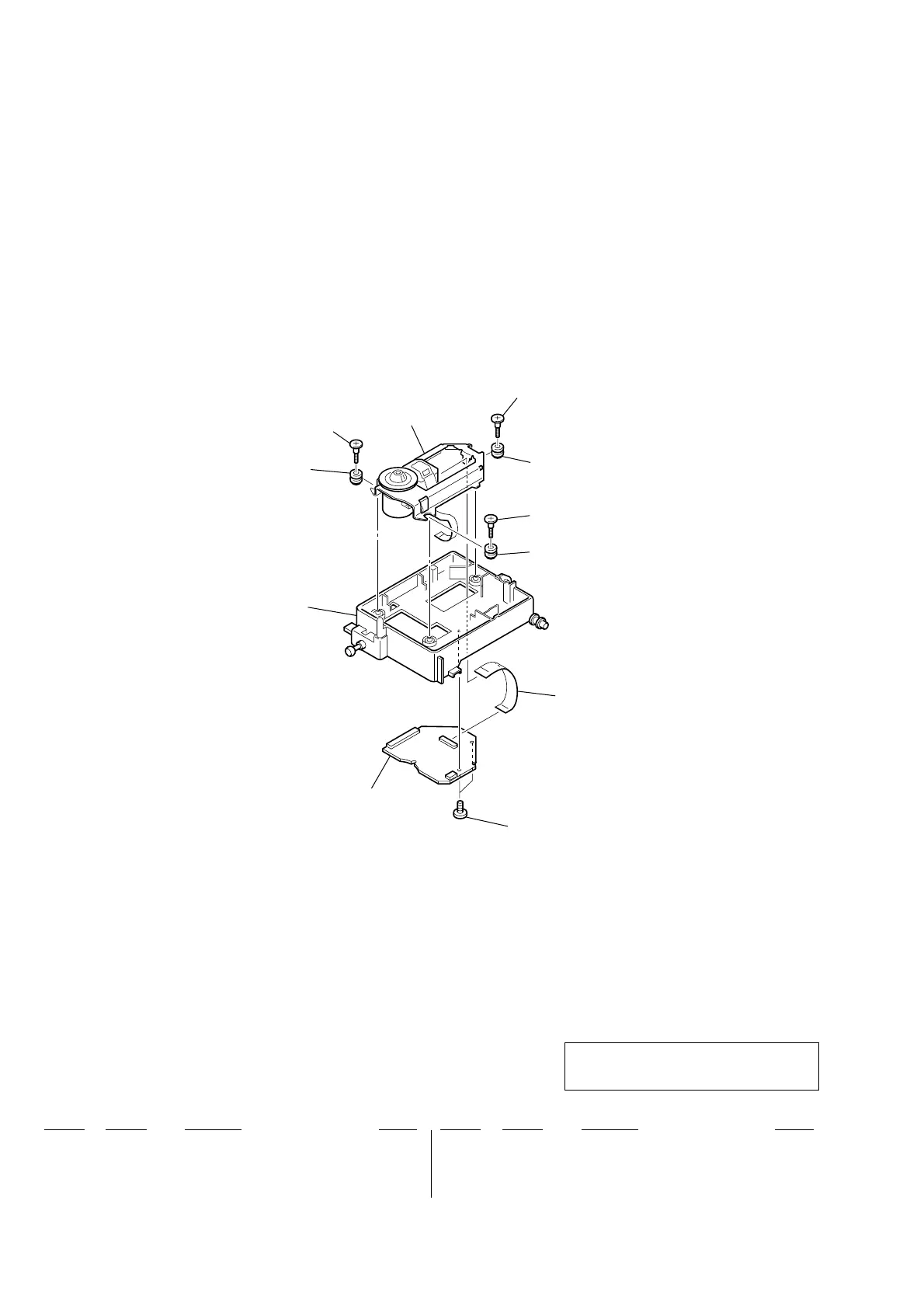

7-11. DVD MECHANISM DECK SECTION-4
(CDM74-DVBU23)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
651 A-4728-690-A RF BOARD, COMPLETE
652 4-218-253-11 SCREW (M2.6), +BTTP
653 1-824-106-12 CABLE, FLEXIBLE FLAT (24 CORE)
654 X-4955-538-1 HOLDER (DBU) ASSY
0 655 1-477-263-11 OPTICAL TRAVERSE UNIT (DBU-1)
656 3-053-847-31 INSULATOR
657 4-981-923-01 SCREW (M), STEP
658 4-251-328-01 INSULATOR (HRC)
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
