COVER
COVER

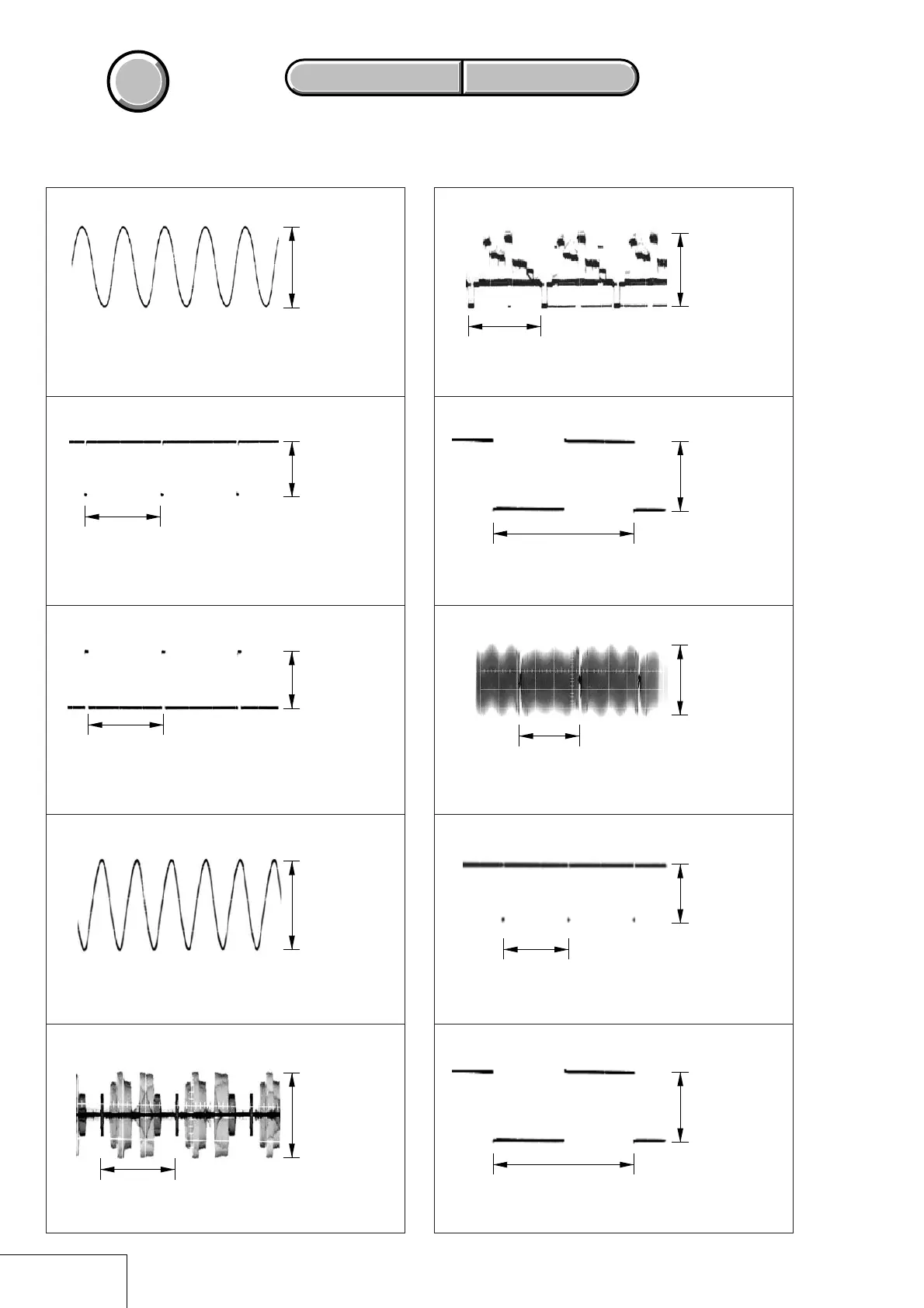

4-4. WAVEFORMS
VC-284 BOARD (1/3)
IC1504 r;, rf REC
2
IC1504 wg REC/PB
2.5 Vp-p
8.0 Vp-p
1
IC1504 ra, rs REC
8.0 Vp-p
3
44 µsec (PC101)
54 µsec (PC101E)
44 µsec (PC101)
54 µsec (PC101E)
33 MHz (PC101)
27 MHz (PC101E)
5
IC2904 4 REC/PB
4
Q2104 1 REC/PB
Q2104 4 REC/PB
6
7
IC1901 ea REC/PB
8
IC1902 wj PB
q;
IC1902 eg REC/PB
9
IC1902 ea, ed REC
2.4 Vp-p
320 mVp-p
H
48 MHz
430 mVp-p
3.0 Vp-p
250 mVp-p
H
6.6 msec
6.6 msec
3.3 msec
3.3 msec
2.0 Vp-p
2.0 Vp-p
VC-284 (1/3)
VC-284 BOARD SIDE A VC-284 BOARD SIDE B
VC-284 BOARD SIDE A VC-284 BOARD SIDE B
