Playing images on a TV
Connect your camcorder to the input jack of a TV or VCR using the A/V connecting cable
or an A/V connecting cable with S VIDEO . Connect your camcorder to the wall
o
utlet (wall socket) using the supplied AC Adaptor for this operation (p. 14). Refer also to the
instruction manuals supplied with the devices to be connected.
A/V c
onnecting cable (supplied)

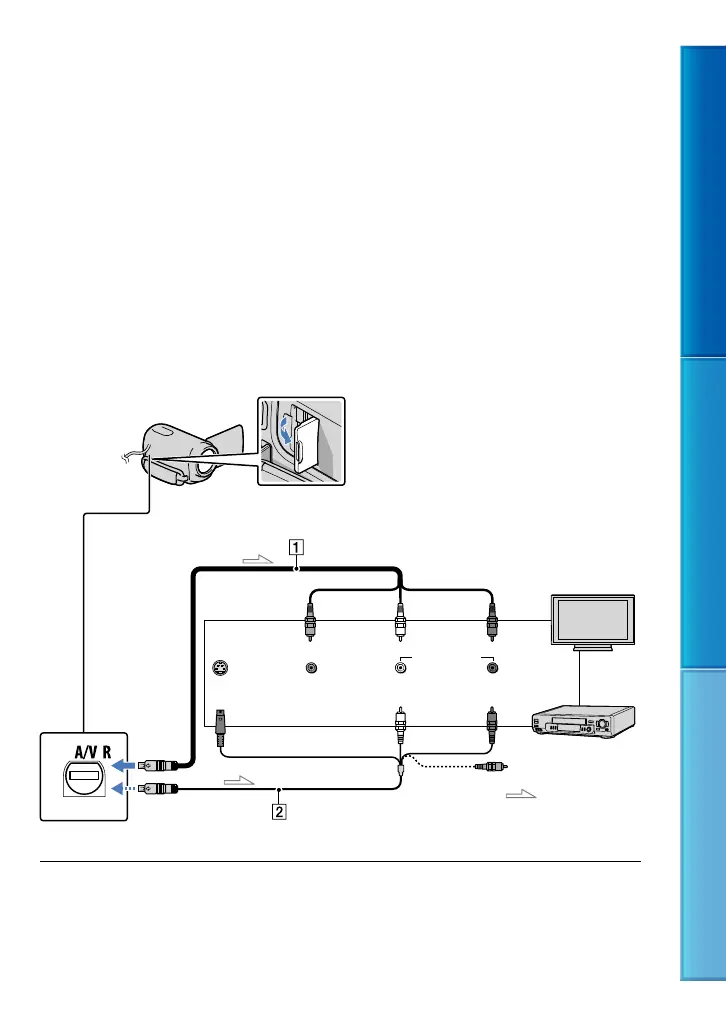

Connecting to another device via the A/V Remote Connector using an A/V connecting cable.
A/V connecting cable with S VIDEO (sold separately)
When connecting to another device via the S VIDEO jack, by using an A/V connecting cable
with an S VIDEO cable (sold separately), higher quality images can be produced than with an
A/V connecting cable. Connect the white and red plugs (left/right audio) and the S VIDEO plug
(S VIDEO channel) of the A/V connecting cable with an S VIDEO cable (sold separately). The
yellow plug connection is not necessary. Connecting only the S VIDEO plug will not output
audio.
Set the input selector of the TV to the input your camcorder will be
connected to.
For details, refer to the instruction manuals supplied with the TV.
IN
VIDEO
S VIDEO
(Yellow)
AUDIO
(White) (Red)
TVs
VCRs
Signal flow
(Yellow)
A/V Remote Connector
