Getting Started
12

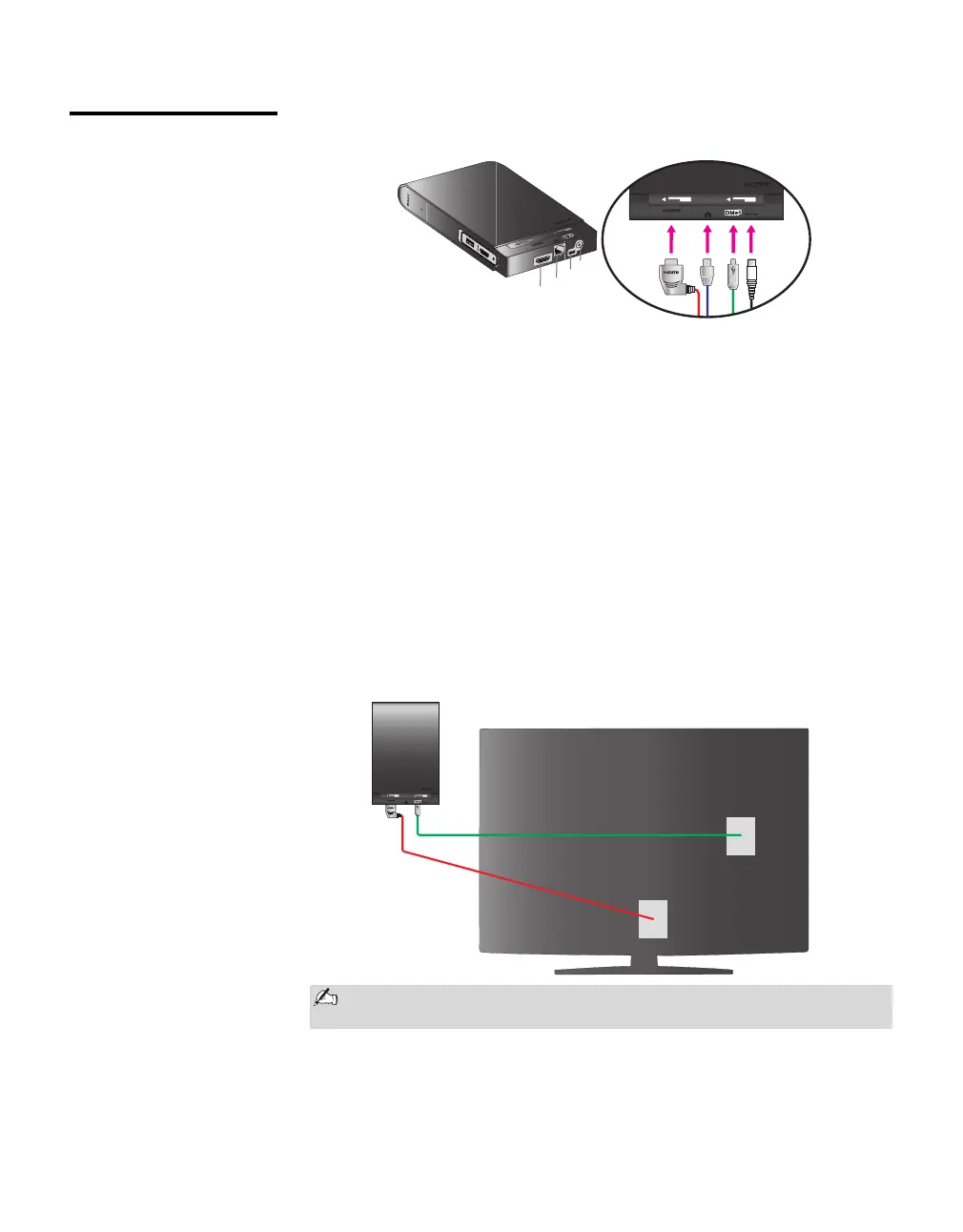

Cable Connections 1 Connect the four cables to your receiver in the order shown below.
A Connect the AC adapter to the DC IN 9V port on the receiver. Do not
plug into the wall outlet at this time.
B Connect the small (mini B) end of the USB cable to the DMe
x
port on
the receiver.
C Connect one end of an Ethernet cable (not supplied) to the LAN
Ethernet port on the receiver.
D Connect the L-shaped end of the HDMI cable to the HDMI OUT port
on the receiver.
2 Connect the USB and HDMI cables to your TV as illustrated below.
B Connect the large (type A) end of the USB cable to the DMe
x
/SERVICE
port on the TV.
D Connect the straight end of the HDMI cable to any HDMI port on the
TV.
The rear view and location of the ports as shown may differ from your
TV set.
OUT
LAN
DC IN 9V
%
$ #
"
B
O
U
T
L
A
N
D
C
IN
9
V

NE
T
WO
R
K
IN
PU
T
S
E
RV
IC
E
%
$
#
"
B
OUT
LAN
DC IN 9V
%
#
HDMI
DMe
x
