Connection

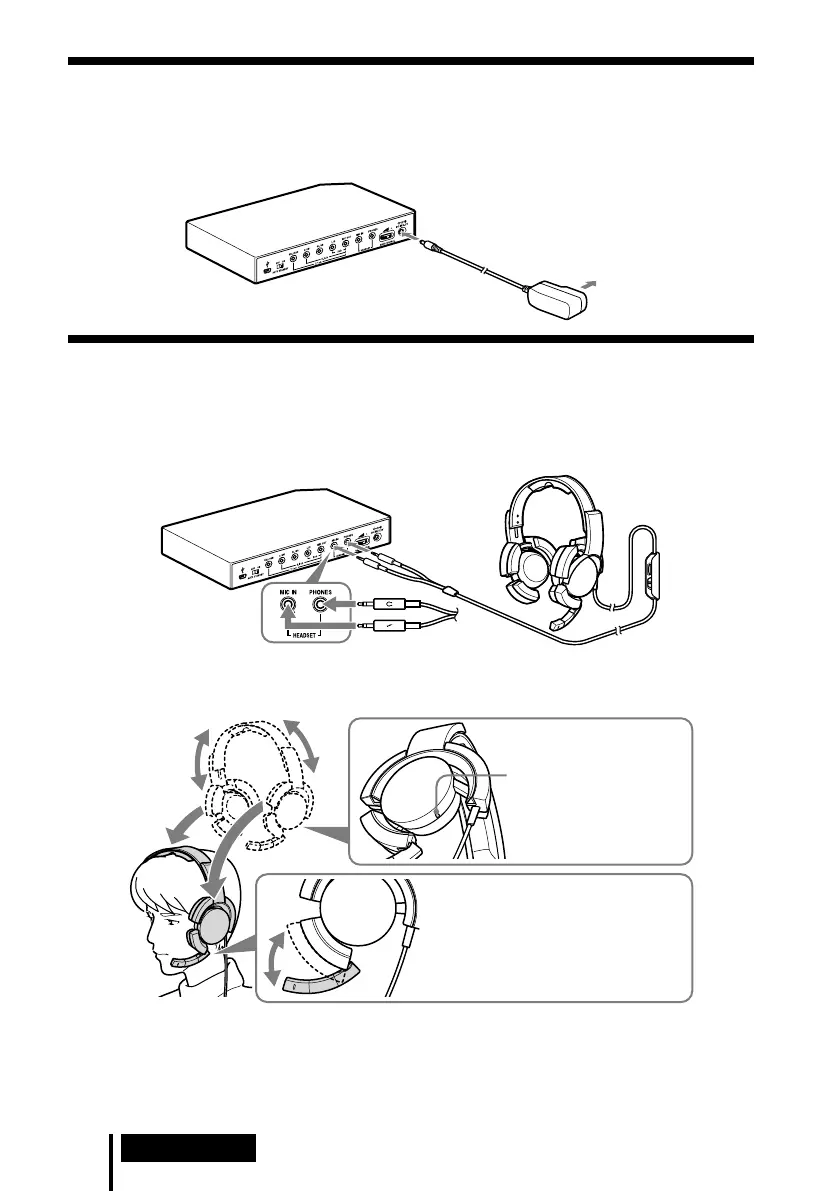

Step 2: Connecting the AC Adaptor
Connect the supplied AC adaptor to the processor, and then connect the AC adaptor to the AC
outlet.
Rear panel of processor
To DC IN 5.2V jack
AC adaptor (supplied)
To AC outlet
Step 3: Preparing the Headset
1 Connect the (microphone) plug of the headset to the HEADSET (MIC IN) jack of
the processor, and connect the (headphone) plug to the HEADSET (PHONES)
jack.
Rear panel of processor
Headset
Black
Red
2 Adjust the band of the headset, and wear the earpad marked on your right ear,
and the one marked on your left ear.
There is a tactile dot on the
hanger marked to
distinguish the left side.
Adjust the position of the
microphone for effective pickup of
your voice.
Return the position of the
microphone to rest near the earpad
when not in use.
Note
If the position of the microphone is not correct, the sensitivity of the microphone will decrease, and sound
from the headphone may enter the microphone.
To Next Page
