93
Connections for an A/B Roll Editing System
Chapter 5 Connections and Settings
Audio monitor system connections

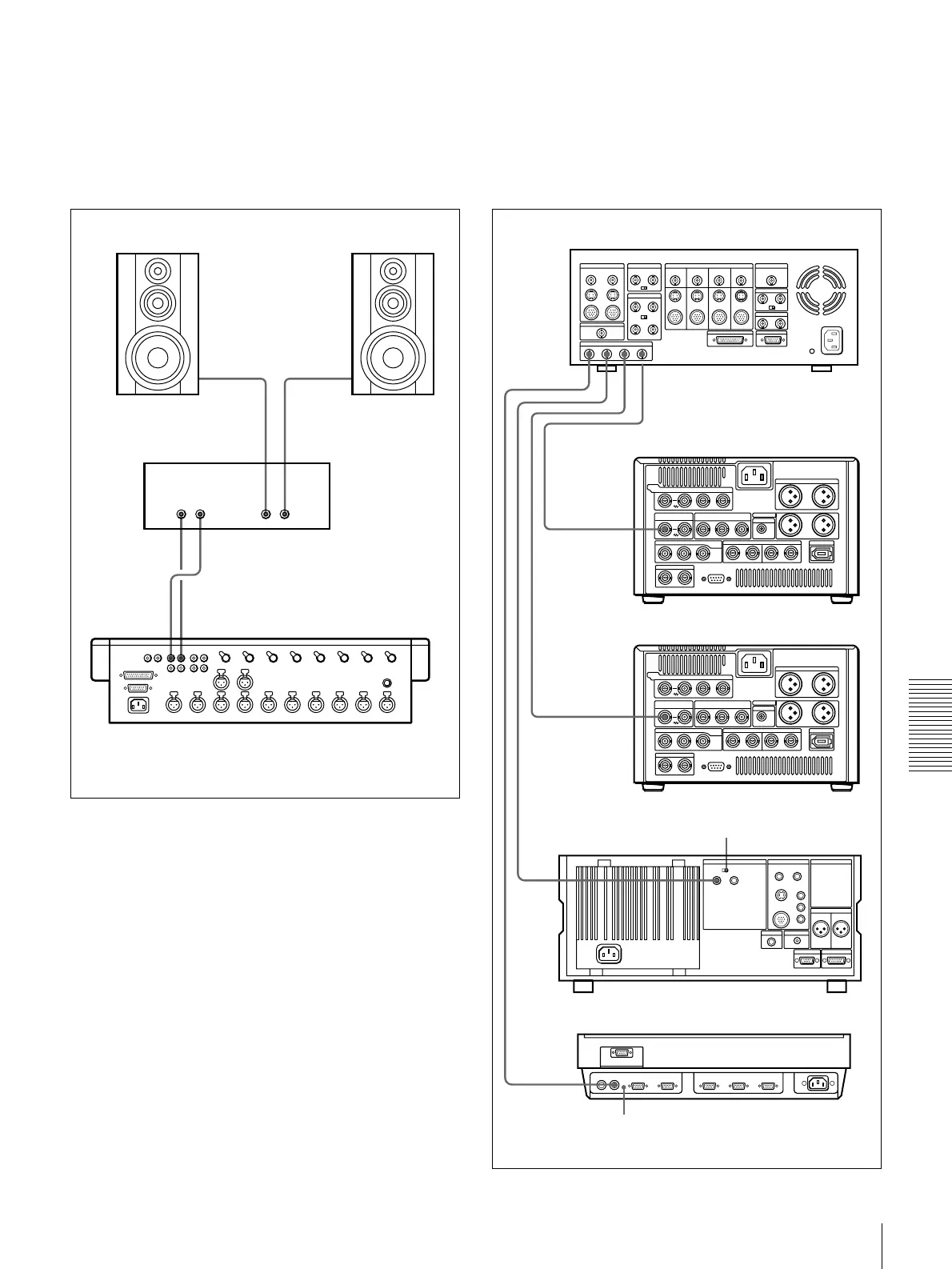

The following shows an example of audio monitor system
connections.
For details of these connections, refer to the instruction
manual for each connected device.
Reference video signal connection
When you perform recording, be sure to input a reference
video signal.
For details of reference video signals, see “About
reference video signals” on page 90.
L
R
L
R
MONITOR
OUT 1
MONITOR
OUT 2
Speaker (left channel)
Audio amplifier
MXP-290 Audio Mixer
Cables with RCA phono plugs
Speaker (right channel)
REF. VIDEO IN
REF.
VIDEO
IN
1234
BLACK
BURST
OUT
REF. VIDEO
IN
REF. VIDEO
IN
DFS-500/500P DME Switcher
DSR-1500A/1500AP (recorder)
UVW-1600/1600P
(player 2)
PVE-500 Editing Control Unit
Use 75 Ω coaxial cables for all of these connections.
DSR-1500A/1500AP (player 1)
REF. VIDEO IN 75 Ω termination switch: ON
REF. VIDEO IN 75 Ω
termination switch: ON
To Next Page
