Chapter 7 Connections and
Settings
Chapter 7 Connections and Settings 125

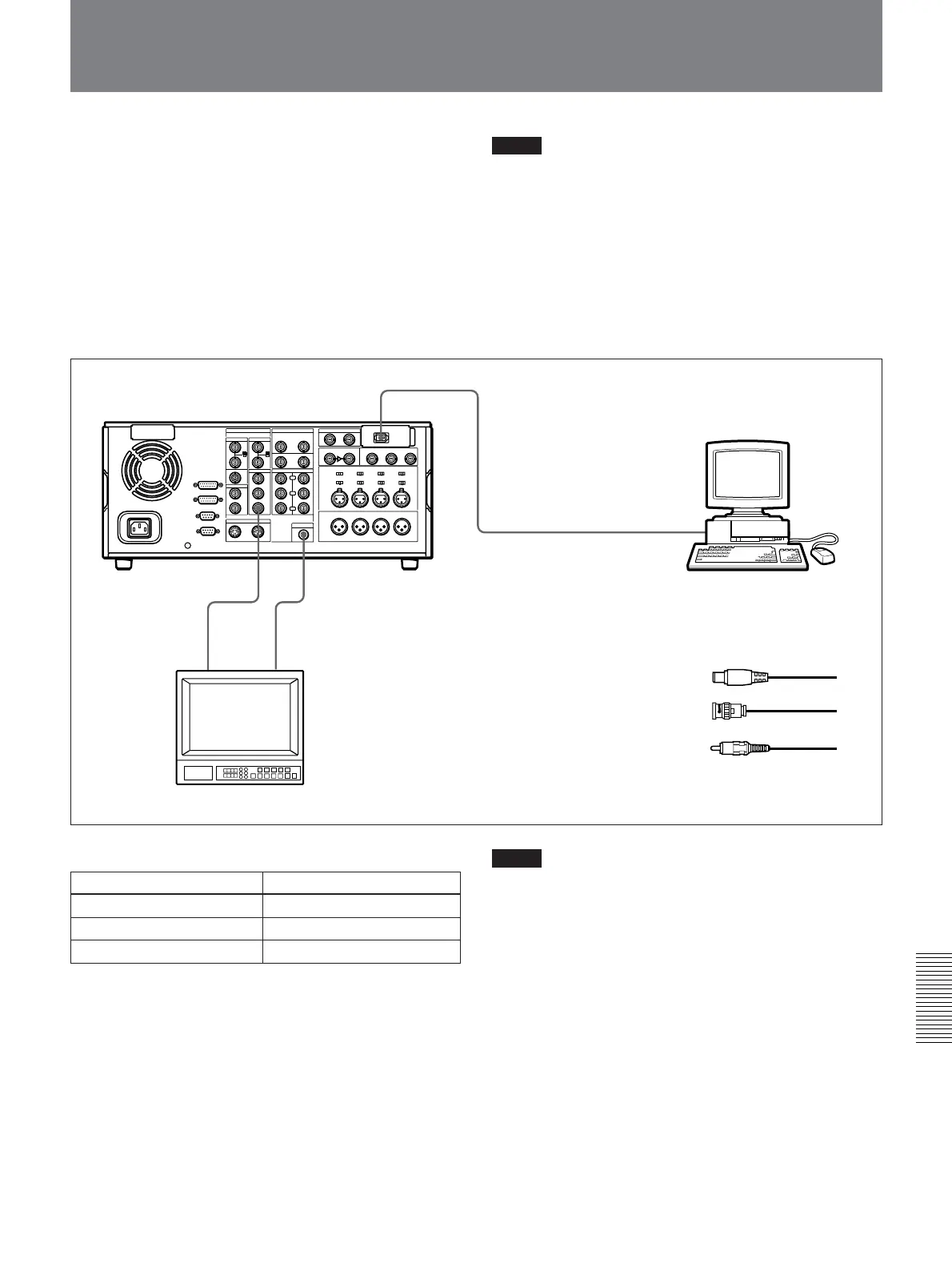

Connections for a Digital Nonlinear Editing System
This unit can be connected to a nonlinear editor
supporting DV/DVCAM with an i.LINK cable (DV
cable). Shown below is an example of connections to
use this unit as a recorder in a nonlinear editing
system.
Notes
•Refer to the documentation of your nonlinear editing
equipment and software for more information about
connection and settings on the nonlinear editing
equipment.
•Different editing software applications provide
different editing functions. For more information
about actual editing procedures and settings, refer to
the documentation of your editing software.
Settings on the DSR-2000A/2000AP
i.LINK
MONITOR
AUDIO
VIDEO OUT 3
(SUPER)
1
23
Control Setting
REMOTE button Lit
9PIN button Unlit
i.LINK button Lit
DSR-2000A/2000AP (recorder)
Notes
•When you connect this unit to another device with a
6-pin DV connector, always power the other device
off and unplug its power cord from the power output
before connecting or disconnecting the i.LINK cable
(DV cable). If you connect or disconnect the i.LINK
cable (DV cable) with the power cord still plugged in,
power from the DV connector may flow into this
unit, possibly damaging this unit.
•When you connect this unit to another device with a
6-pin DV connector, make the connection to the 6-pin
DV connector on the other device before making the
connection to this unit.
Composite video
input
Audio input
Nonlinear editing system
Video monitor
1 i.LINK cable (DV cable)
(not supplied)
2 75Ω coaxial cable
(not supplied)
3 Cable with RCA phono
plugs (not supplied)
