Chapter 7 Connections and
Settings
132 Chapter 7 Connections and Settings
Connections for Digitally Dubbing Signals in
DVCAM Format
You can use this unit to digitally dub signals in
DVCAM format automatically from the beginning of
the tape to the end, through an i.LINK or SDTI(QSDI)
interface.
For information about how to carry out digital dubbing, see
the section “Digitally Dubbing Signals in DVCAM Format”
(page 61).
Connecting two DSR-2000A/2000AP units
using the i.LINK interface
Make the same connections and settings as described
in the section “Connections for Cut Editing Using
i.LINK Interface” (page 124).
DSR-2000A/2000AP (player) settings
Control Setting
REMOTE button Lit
9PIN button Lit
DSR-2000A/2000AP (recorder) settings
Control Setting
REMOTE button Unlit
9PIN button Lit
SDTI/i.LINK button SDTI
(input selection section)
SDTI(QSDI) OUTPUTSDTI(QSDI) INPUT
REMOTE-INREMOTE-OUT
1
2
DSR-2000A/2000AP (player)
DSR-2000A/2000AP (recorder)
1 75 Ω coaxial cable (not supplied)
2 RCC-5G 9-pin remote control cable (not supplied)

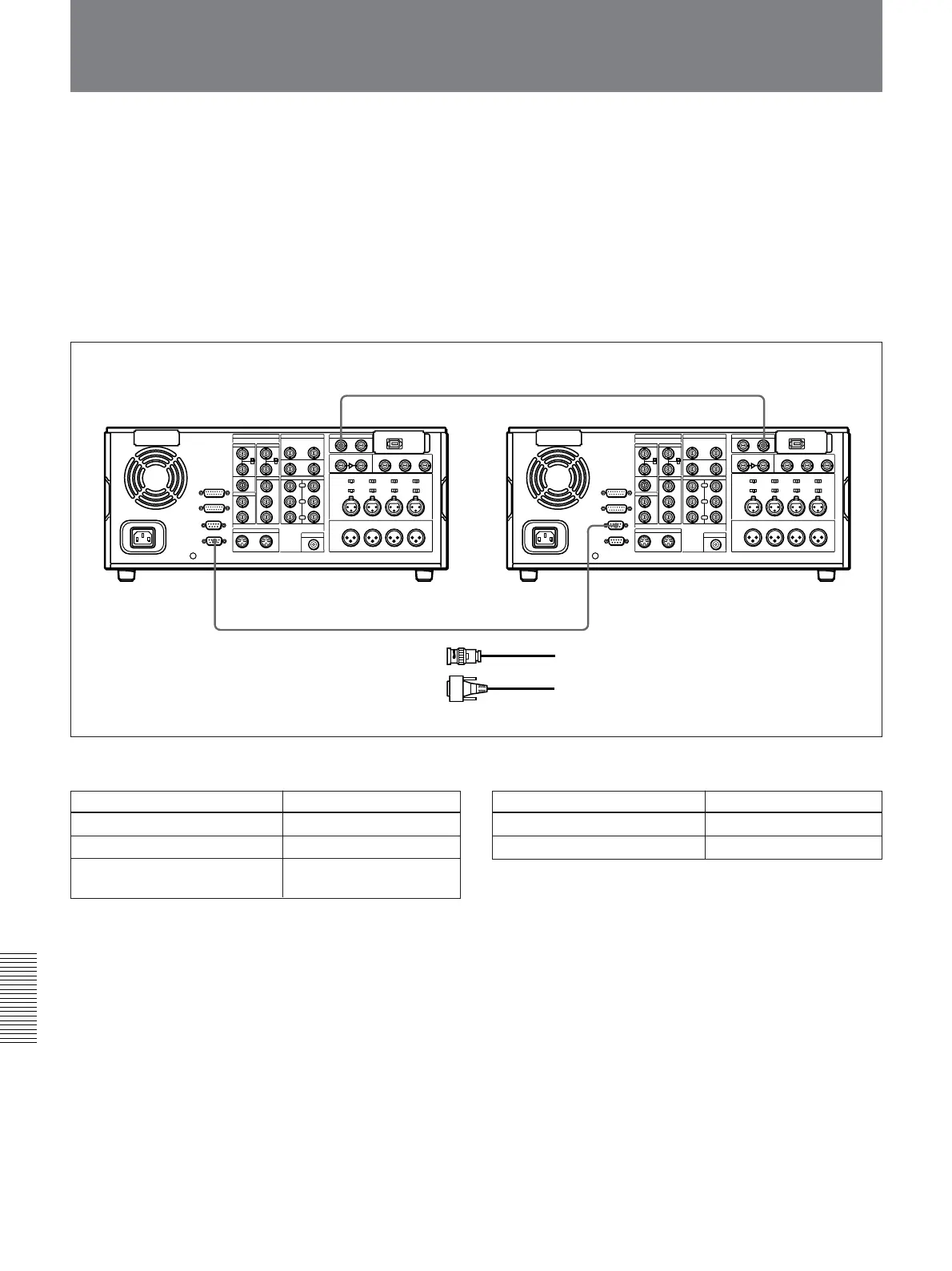

Connecting two DSR-2000A/2000AP units using the SDTI(QSDI) interface
When connecting this unit with a DSR-60/60P/
80/80P/85/85P/1000-series/1000P-series unit
using the SDTI(QSDI) interface
Replace the DSR-2000A/2000AP (player) shown in
the above diagram with a DSR-60/60P/80/80P/85/85P/
1000-series/1000P-series unit and make the same
connections as shown above.
The SDTI(QSDI) interface connector of the DSR-60/
60P/80/80P/85/85P is marked “QSDI(OUTPUT)”.
To Next Page
