Hookups
Step 4: Connecting the Audio Cords
Refer to the chart below to select the connection that best suits your system. Be sure to also read
the instructions for the components you wish to connect.
Select a connection
Select one of the following connections, through .

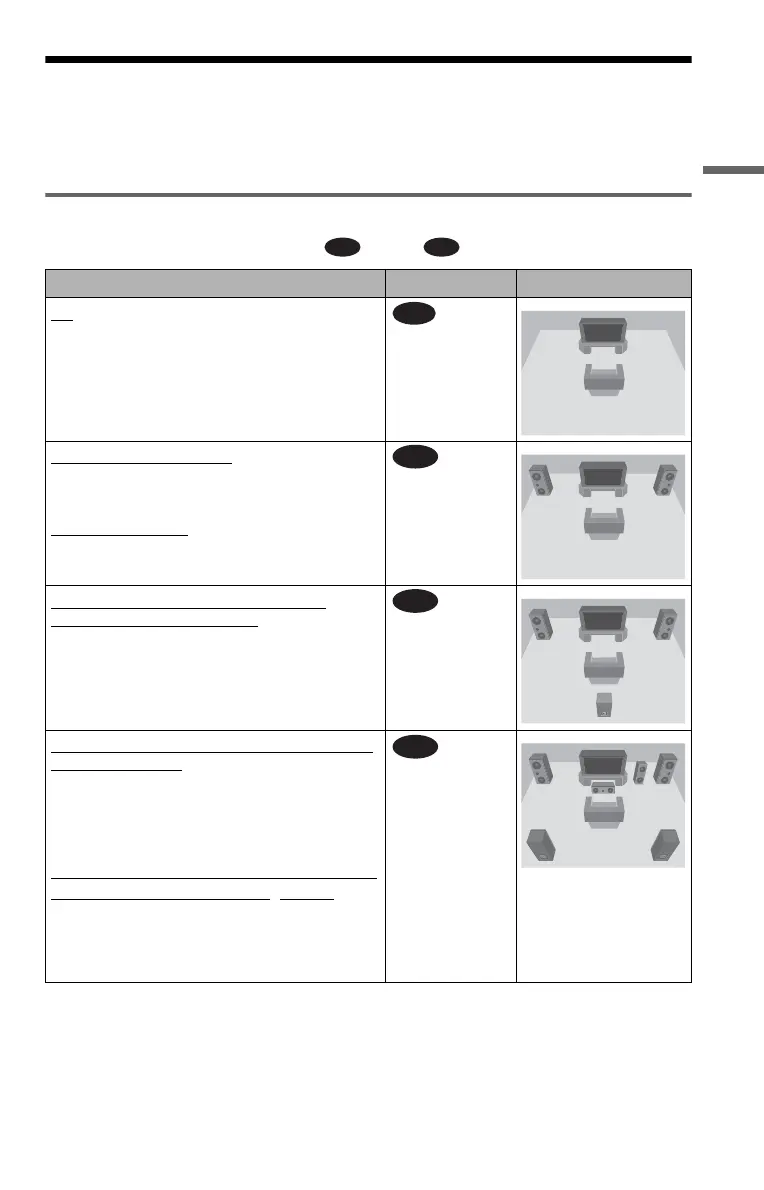

Components to be connected Connection Your setup (example)
TV
• Surround effects:
– TVS DYNAMIC (page 53)
– TVS WIDE (page 53)
(page 25)
Stereo amplifier (receiver)
and two speakers
• Surround effects:
– TVS STANDARD (page 53)
or
MD deck/DAT deck
• Surround effects:
– TVS STANDARD (page 53)
(page 26)
AV amplifier (receiver) having a Dolby
*
1
Surround (Pro Logic) decoder
and 3 to 6
speakers
• Surround effects:
– Dolby Surround (Pro Logic) (page 88)
(page 27)
AV amplifier (receiver) with 5.1 ch input jacks
and 4 to 6 speakers
• Surround effects:
– Dolby Digital (5.1 ch) (page 88)
– DTS (5.1 ch) (page 88)
– Super Audio CD Multi channel (page 88)
or
AV amplifier (receiver) with digital input jacks
having a Dolby Digital, or DTS*
2
decoder and 6
speakers
• Surround effects:
– Dolby Digital (5.1 ch) (page 88)
– DTS (5.1 ch) (page 88)
(page 28)
A D
A
B
C
D
,continued
To Next Page
