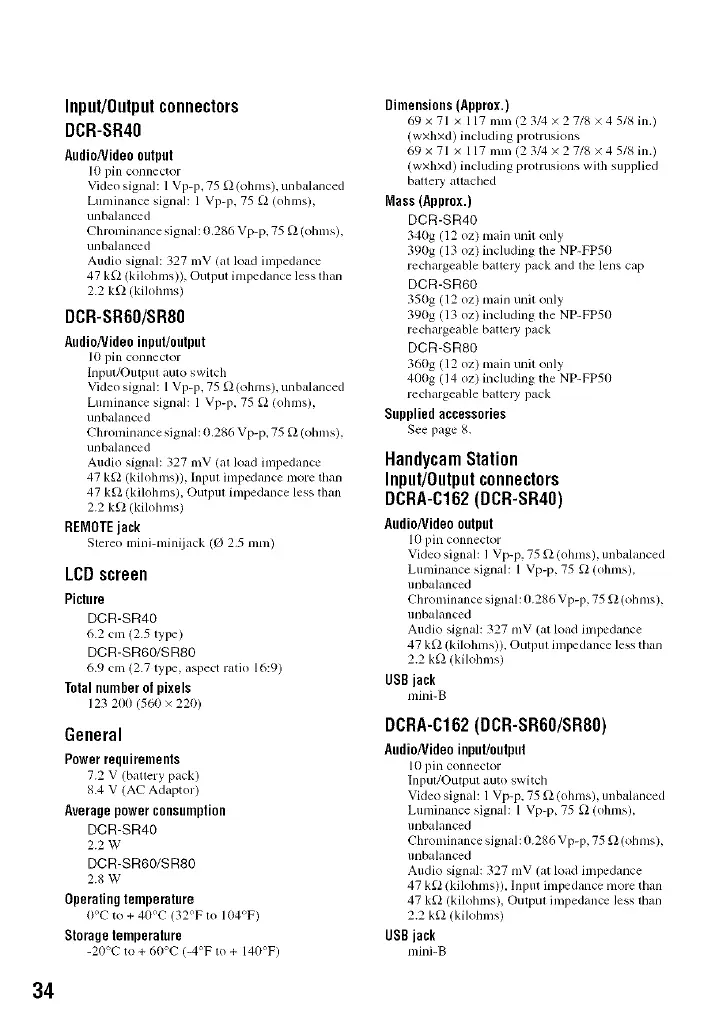

Input/Outputconnectors
DCR-SR40
Audio/Video output
10 pin connector
Video signah 1 X!p_p, 75 _ (ohms), unbalanced
Luminance signal: l Vpq), 75 tl (ohms),
unbalanced
Chrominance signah 0,296 Vp-p, 75 _ (ohms),
unbalanced
Audio signal: 327 mV (al load impedance
47 k_ (kilobms)), 0/111)/.11impedance less than
2.2 k_l (kilohms)
DCR-SP,60/SP,80
Audio/Video input/output
10 pin connector
lnput/Outpul auto switch
Video signal: l Vp-p, 75 _ (ohms), unbalanced
Luminanc_ signal: 1 Vp-p, 75 fZ (ohms),
unbalanced
Chrominance signal: 0,286 Vp-p, 75 tl (oluns),
unbalanced
Audio signal: 327 mV (al load impedance
47 k_,_ (kih)hms)), Input impedance more than
47 k_l (kilohms), Output impedance less than
2.2 k_ (kiloluns)
RENOTE jack
Stereo mini-mini.iack (O 2,5 ram)
LCDscreen
DCR-SR40
6.2 cm (2.5 type)
DCR-SR60/SR80
6.9 cm (2.7 type, aspect ratio 16:9)
Totalnumberof pixels
123 200 (560 x 220)
General
Power requirements
7.2 "V (battery pack)
8.4 V (AC Adaptor)
Average power consumption
DCR-SR40
2.2 W
DCR-SRg0/SRS0
2.8W
Operating temperature
0°C to + 40°C (32°F to 104_'F)
Storage temperature
-20°C to + 60%" (-4°F to + 140°F)
Dimensions(Approx.)
69 x 71 x 117 mm (2 3/4 x 2 7/8 x 4 5/8 ill,)
(wxhxd) including protrusions
69 x 71 x 117 mm (2 3/4 × 2 7/8 × 4 5/8 ill.)
(wxhxd) including protrusions with supplied
battery attached
Mass(Approx.)
DCR-SR40
340g (12 oz) main unit only
390g (13 oz) including the NP-FP50
rechargeable baltel T pack and lbe lens cap
DCR-SR60
350g (12 oz) main unit only
390g (13 oz) including the NP-FP50
rechargeable baltery pack
DCR-SR80
360g (12 oz) main unit only
400g (14 oz) including the NP-FP50
rechargeable battery pack
Supplied accessories
See page 8,
HandycamStation
Input/Output connectors
OCRA-C162(DCR-SR40)
AudioNideooutput
lO pin connect_}r
Video signah 1 _2p-p, 75 _ (ohms), unbalanced
Luminance sigmd: 1 Vp-p, 75 _,t (ohms),
unbalanced
Chrominance signal: 0.28b'Vp-I),75 _ (ohms),
unbalanced
Audk} signal: 327 mV (at load impedmlce
47 k_,_ (kilohms)), Outpul impedance less than
2.2 k_l (kilollms)
USBjack
mini-B
DCRA-C162(DCR-SR60/SR80)
Audio/Video input/output
10 piJl connector
Input)Output auto switch
Video signal: 1 Vp-p, 75 t,_ (ohms), unbalanced
Luminance signal: 1 Vp-p, 75 !2_(ohms),
unbalanced
Chronfinance signal: 0.286 Vp-p, 75 _2(ohnls),
unbalanced
Audio signal: 327 m¥ (at load impedance
47 k_l (kilohms)), Input impedance more than
47 k£l (kilohms), Outpul impedance less lhan
2.2 k_ (kilohlns)
USB jack
mini-B
34
